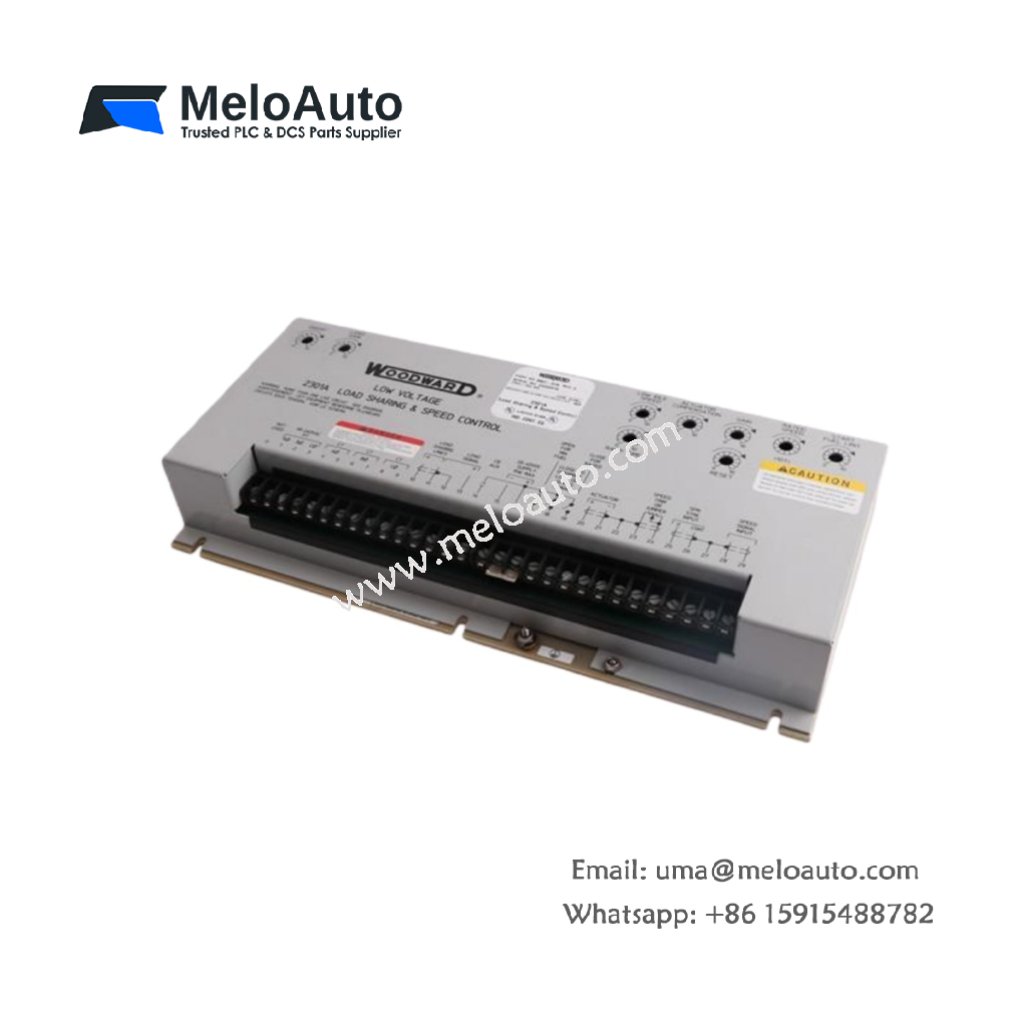

WOODWARD 9907-018 2301A Full Authority Speed Control

Overview

The WOODWARD 9907-018 is a Full Authority Speed Control designed to precisely manage the speed or load of various engines and turbines. It operates according to demand signals, such as 4-20 mA or 1-5 VDC, providing flexible and reliable control in industrial applications. This module is suitable for diesel engines, gas engines, steam turbines, and gas turbines, offering high adaptability for a wide range of power generation and industrial processes.

Key Features

• Speed Control via 4-20 mA or 1-5 VDC Input
  The WOODWARD 9907-018 accepts 4-20 mA or 1-5 VDC control signals, allowing precise speed setting for various engine types. This flexibility enables easy integration with existing control systems.
• Isochronous and Droop Speed Control
  The module offers two types of speed control: Isochronous for maintaining a constant speed and Droop for load sharing applications. This ensures optimal performance under different operating conditions.
• Voltage Variability
  It comes in both low- and high-voltage models, allowing you to select the version that suits your system’s voltage requirements. Whether you need 24V or higher, WOODWARD 9907-018 covers your needs.
• Signal Converter Included
  A signal converter is included in the same control package. This makes it easy to interface the WOODWARD 9907-018 with various control systems and simplifies installation.
• Speed Adjustment Features
  The control unit includes both high and low-speed adjustments, providing a comprehensive range of speed settings to meet specific operational requirements.
• Start Fuel Limit with Override
  The WOODWARD 9907-018 features a start fuel limit function, which can be overridden if necessary. This feature helps optimize engine start-up and fuel usage, ensuring smoother operation.

Applications

• Diesel and Gas Engines:
  Ideal for regulating the speed or load of diesel or gas engines in industrial or power generation systems.
• Turbine Control:
  Suitable for steam turbines and gas turbines, providing precise speed control based on system demand.
• Process Control Systems:
  Integrates with computer control systems that output 4-20 mA or 1-5 VDC signals, allowing seamless integration into larger automated control networks.
• Energy Management Systems:
  Used in energy production and distribution systems where speed regulation is critical for system stability and efficiency.

Technical Specifications

Why Choose the WOODWARD 9907-018?

• Highly Versatile:
  With 4-20 mA and 1-5 VDC control signal compatibility, this speed control module adapts easily to various industrial control systems.
• Precise Speed Control:
  Both Isochronous and Droop speed control options ensure that the WOODWARD 9907-018 can meet different operational needs, from constant speed maintenance to load-sharing applications.
• Built-In Convenience:
  The integrated signal converter and speed adjustment features simplify setup and reduce installation time.
• Reliable Performance:
  With high and low voltage models, the WOODWARD 9907-018 provides robust and reliable performance across a variety of industrial environments.
