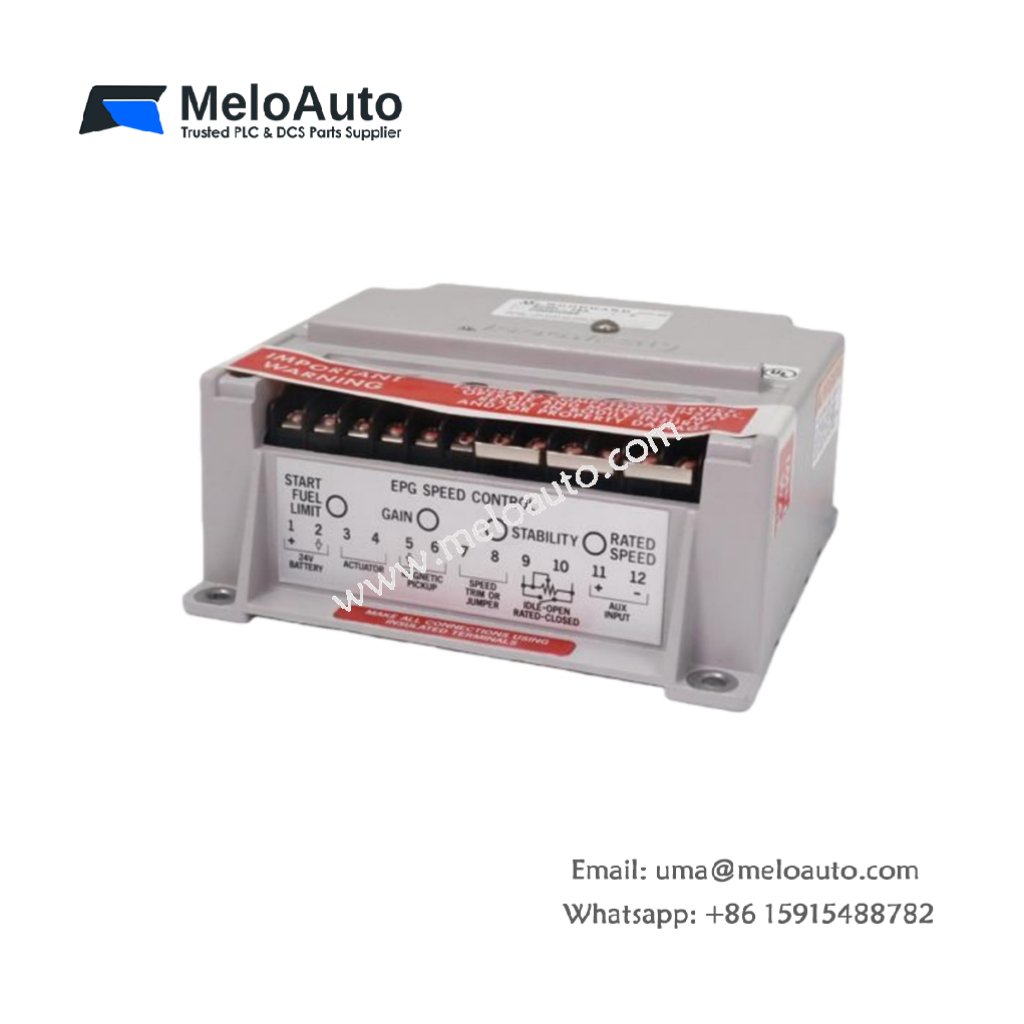

WOODWARD 8290-184 Speed Controller

Overview

The WOODWARD 8290-184 is a key component in Woodward’s EPG series. It provides precise speed control for diesel and gas turbine prime movers. By regulating the fuel supply, it ensures stable operation, optimal performance, and enhanced reliability of turbine-driven systems. This controller is designed to offer efficient, consistent results in demanding industrial environments.

Key Features

Isochronous Speed Control: It maintains a steady speed, even as the load changes, ensuring reliable operation at all times.
Start Fuel Limit: This feature controls fuel during startup, minimizing smoke and improving the combustion process, which in turn enhances environmental compliance.
Optional Ramp Generator: You can use this for smoother turbine acceleration, improving both startup performance and overall system efficiency.
Engine Mounting: The 8290-184 mounts directly on the engine, saving space and simplifying installation.
Compliance: It fully complies with EU Directives, ensuring that it meets global environmental and safety standards.
Wiring Flexibility: The controller supports both 12 AWG and 14 AWG wiring, providing flexible installation options depending on wiring length.

Technical Specifications

Specification	Details
Model	8290-184
Manufacturer	WOODWARD
Power Supply	24 VDC (Range: 20 VDC to 32 VDC)
Frequency Range	3000 – 6000 Hz
Input/Output Compatibility	Compatible with Woodward actuators: 1712, 1724, 512, 524
Ambient Temperature Range	-40°C to 167°C (-40°F to 334°F)
Power Consumption	Up to 95 Watts
Mounting	Can be mounted directly on the engine
Fuse	10 A slow blow fuse
Wiring Requirements	Requires 12 AWG and 14 AWG wiring

Applications

The WOODWARD 8290-184 is ideal for controlling the speed of diesel and gas turbines in various applications. These include power generation, marine propulsion, and industrial turbine systems. It is perfect for environments where precise speed control is crucial for maintaining reliable and consistent performance.

Why Choose the WOODWARD 8290-184?

Consistent Performance: The 8290-184 ensures stable turbine operation even under changing load conditions, keeping your system running smoothly.
Eco-Friendly: The Start Fuel Limit minimizes emissions during startup, supporting your sustainability goals.
Durability: Designed to work under extreme conditions, the controller operates reliably across a wide temperature range of -40°C to 167°C.
Space-Saving Design: With its ability to mount directly on the engine, it streamlines installation and optimizes space.
Low Power Consumption: Drawing up to 95 watts, the controller helps improve the energy efficiency of your system, reducing operating costs.
