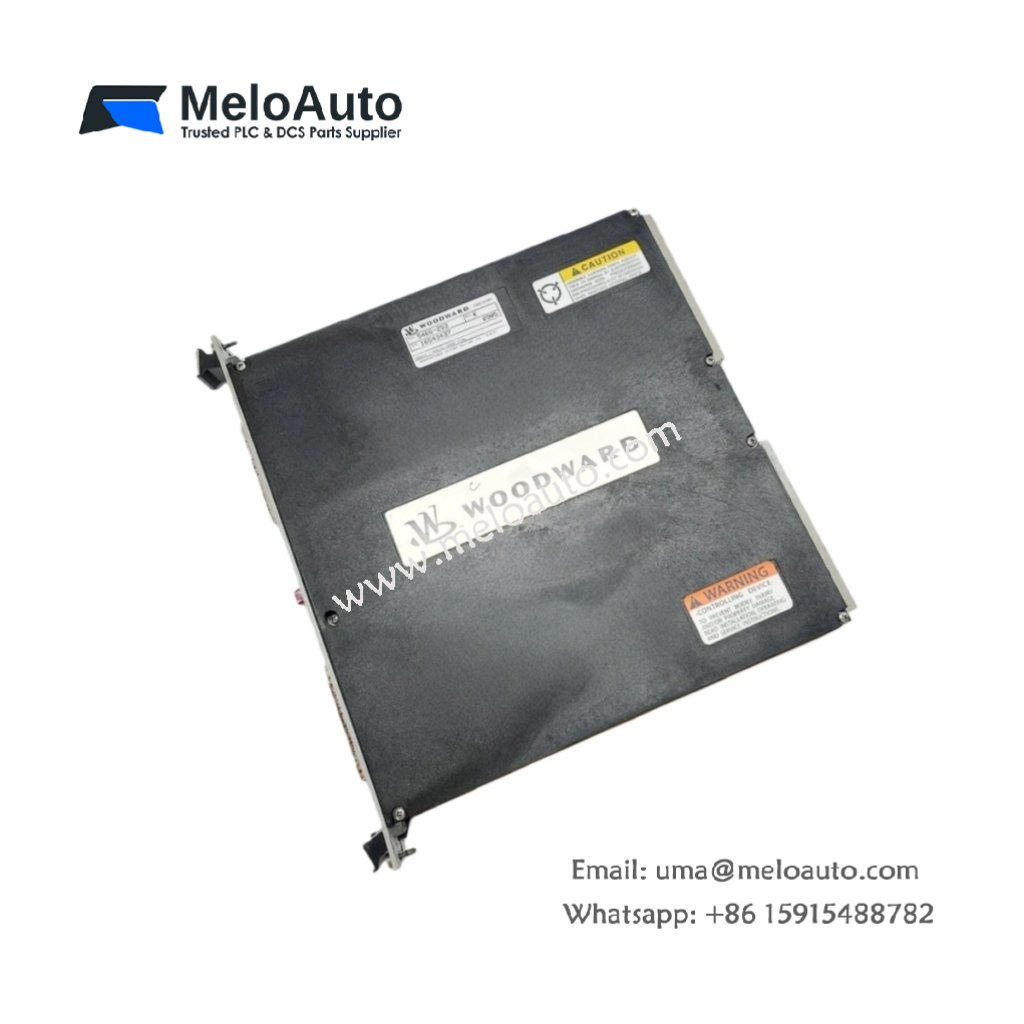

Woodward 5501-429 2-Channel Actuator Controller

The Woodward 5501-429 is a reliable 2-channel actuator controller specifically designed for controlling both proportional and integrating pneumatic and hydromechanical actuators. This 25 mA version provides high precision and seamless integration into your industrial control systems.

Key Features:

Dual Channel Control: Manage two actuator channels simultaneously for flexible control setups.
Position Feedback Devices: Supports LVDT or RVDT for accurate position feedback on each channel.
Advanced Fault Detection: Monitors excitation, feedback, driver errors, and position discrepancies.
Efficient Troubleshooting: A red fault LED indicates errors, helping you quickly identify issues.
Calibration-Free: Easily replace actuators without recalibrating the module or software.
Compact and Easy Installation: Mounts easily on panels or in chassis, ensuring straightforward system integration.

Technical Specifications

Specification	Details
Part Number	5501-429
Module Type	PLC Control Module
Channels	2-Channel Actuator Controller
Current	25 mA Version
Feedback Devices	LVDT, RVDT (Position Feedback)
Power Requirements	+5 V @ 0.5 A, +24 V @ 1 A
Maximum Load Resistance	10/30 mA max
Fault Detection	Monitors excitation, feedback, drivers, position errors
LED Indicators	Red fault LED (solid or flashing)
Mounting	Panel Mount
Installation	Plugs into motherboard with card guide
Handles	Two handles for easy removal
Compatible Cable	MicroNet low-density discrete cable
Calibration	No calibration required

Overview

The Woodward 5501-429 effectively controls pneumatic and hydromechanical actuators in industrial systems. It offers precise position feedback via LVDT or RVDT devices, ensuring reliable actuator control. The built-in fault detection and diagnostic features simplify system maintenance by providing clear error indicators. A red fault LED signals the module’s status, alerting you to issues requiring attention.

This 2-channel actuator controller operates with +5 V @ 0.5 A and +24 V @ 1 A, and can handle a 10/30 mA max load resistance. Moreover, you won’t need to perform any calibration when replacing actuators, ensuring a smooth transition and uninterrupted system operation.

For installation, simply mount the 5501-429 on a panel or chassis. It connects easily using a card guide, and the two handles provide quick removal for maintenance tasks.

Application

The Woodward 5501-429 is ideal for use in demanding industrial automation environments. It excels in applications requiring precise actuator control and fault monitoring. With its simple installation, reliable fault detection, and efficient troubleshooting, it enhances overall system performance and reduces downtime.
