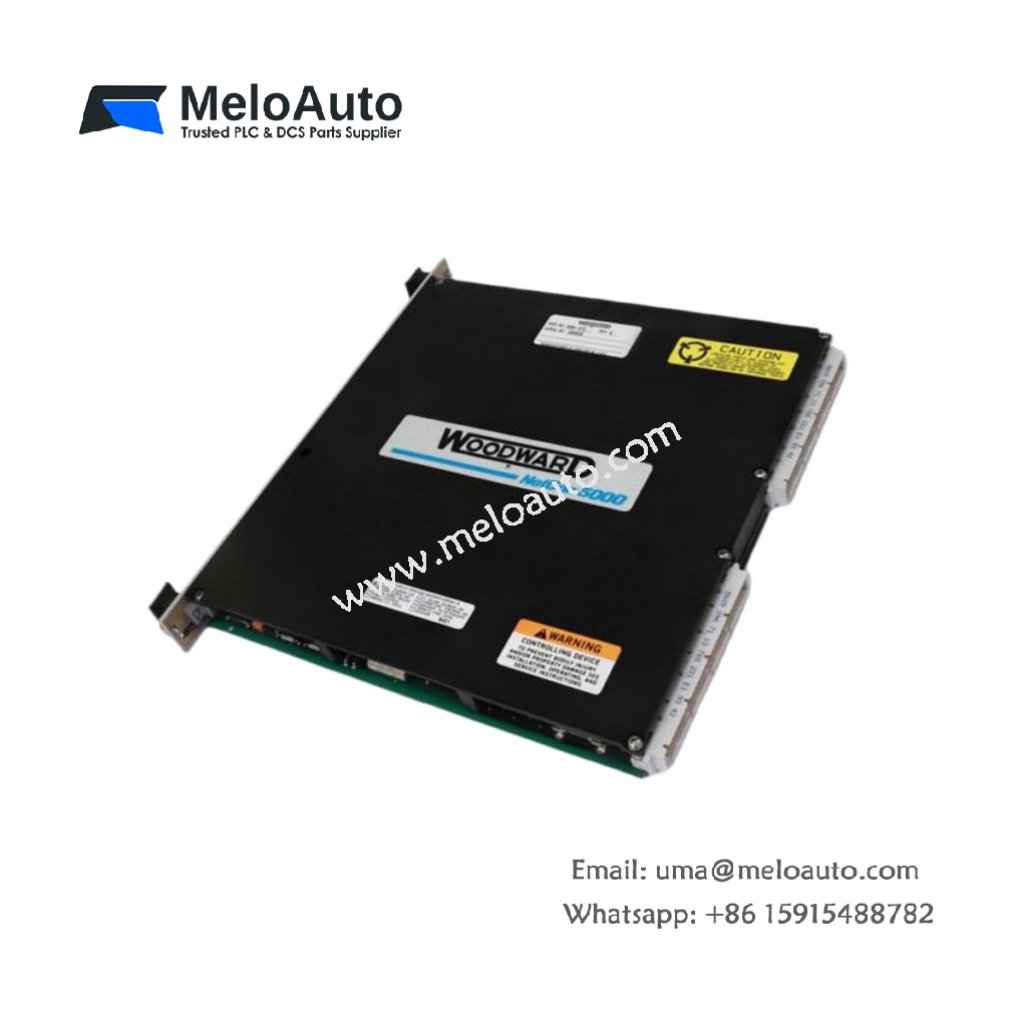

Woodward 5466-1035 MicroNet Digital Controller

The Woodward 5466-1035 is a versatile and robust MicroNet Digital Controller designed for advanced industrial applications. This unit features a PowerPC Motorola MPC5200 processor and is optimized for operation in either simplex or redundant configurations. It offers superior flexibility, making it ideal for a range of control and protection tasks, including gas and steam turbines, compressors, and industrial engines.

Key Features

Redundant or Simplex Operation: The 5466-1035 supports both simplex and redundant configurations, ensuring high availability and fault tolerance for critical systems.
Real-Time Clock: This unit includes a built-in real-time clock for precise timekeeping and system synchronization.
Ethernet Connectivity: Equipped with 10/100 Base T Ethernet for seamless communication and integration with distributed control systems (DCS) and HMIs.
Embedded Firewall: Provides robust cybersecurity features with an embedded firewall and a GAP security block, ensuring secure system operation and preventing unauthorized access.
Vibration Testing: The unit passes Lloyd’s ENV2 test 1 for vibration, ensuring reliability in harsh industrial environments.

Technical Specifications

Specification	Details
Part Number	5466-1035
Processor	PowerPC Motorola MPC5200
Redundancy Mode	Simplex or Redundant
Operating Temperature	32°F to 131°F (0°C to 55°C)
Vibration Test	Lloyd’s ENV2 test 1
Real-Time Clock	Yes
Ethernet	10/100 Base T
Embedded Firewall	Yes
Protocol Updates	Tool and Protocol Updates
Chassis Compatibility	Full-size 14 VME chassis
CSA Compliance	Class 1, Division 2
Security Features	GAP Security Block

Overview

The Woodward 5466-1035 is part of the MicroNet Digital Controller series and is designed for flexibility and redundancy in mission-critical control systems. It is fully compliant with modern cybersecurity standards, including embedded firewall protection and GAP security blocks to guard against threats.

This controller provides enhanced system reliability, supporting both simplex and redundant configurations. When used in a redundant setup, it accommodates a second CPU, located in slot 14 or 8, depending on the chassis configuration. Additionally, the 5466-1035 is tested for vibration resistance, ensuring it operates reliably in tough industrial environments.

Application and Usage

The Woodward 5466-1035 is ideal for applications requiring high reliability, such as turbine control systems, compressor monitoring, and engine control in industrial environments. With its built-in real-time clock and support for Ethernet connectivity, the unit can be seamlessly integrated into distributed control systems and monitoring platforms.

About the Manufacturer: Woodward Inc.

Woodward Inc., headquartered in Fort Collins, Colorado, is a global leader in energy control and automation solutions. The company specializes in providing reliable, high-performance control systems for industries such as aerospace, power generation, and industrial automation. The 5466-1035 exemplifies Woodward’s commitment to delivering innovative, secure, and high-reliability products.
