Overview

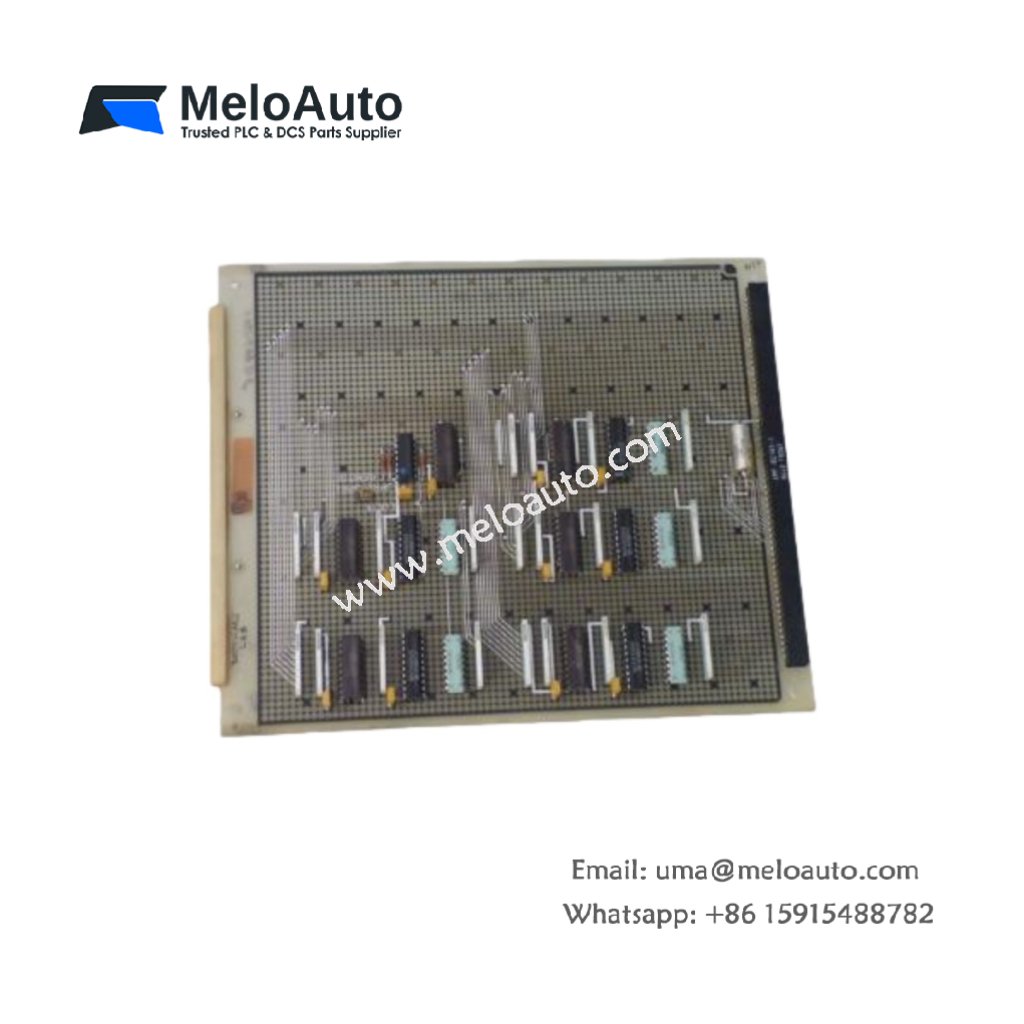

The WOODWARD 5462-718 Speed Sensor Board is a high-performance signal processing module designed to provide accurate and reliable speed control. It processes sensor signals to stabilize machinery speeds in various industrial applications. With precise speed regulation, the 5462-718 ensures optimal performance for systems that require high-speed monitoring.
Key Features
- Signal Processing: The board amplifies, filters, and processes signals from sensors, providing stable and accurate speed measurements.
- LED Indicator: The built-in LED display indicates the operational status of the system with various lighting patterns for easy monitoring.
- Fault Detection: Equipped with high and low latch setpoints, the module detects input faults and ensures system reliability.
- Speed Control: Processes incoming sensor data with high accuracy, effectively regulating system speed.
- Selectable Filtering: Configurable filter time constants (8 ms or 16 ms) allow customization to meet specific application requirements.
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 5462-718 |
| Manufacturer | Woodward |
| Product Type | Speed Sensor Board |
| Availability | In Stock |
| Country of Manufacture | United States (USA) |
| Output Voltage | 0 to 10 V |
| Sensitivity | 10 mV/(1000 RPM) |
| Accuracy | ±1% of reading |
| Linearity | ±0.5% of full scale |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -40°C to +125°C |
| Dimensions | 2.5 x 1.2 x 0.7 in (63 x 30 x 18 mm) |
| Weight | 0.38 kg |
| NEMA/IP Rating | NEMA 4X, IP67 |
| Expected Life | >10 million hours |
Applications
The WOODWARD 5462-718 Speed Sensor Board is ideal for use in various industrial applications where precise speed measurement and control are essential. Some of the primary uses include:
- Engine Speed Measurement: Ensures accurate speed regulation for engines in automotive or industrial machinery.
- Pump Speed Measurement: Monitors and stabilizes the speed of pumps in fluid handling systems.
- Fan Speed Measurement: Controls and regulates the speed of ventilation fans in HVAC and other systems.
- Conveyor Belt Speed Measurement: Provides precise speed control for conveyor belts in manufacturing and assembly lines.
- Machine Tool Spindle Speed Measurement: Offers accurate speed feedback for machine tools in precision manufacturing.
Durability and Reliability
The WOODWARD 5462-718 is built to withstand harsh industrial environments. With its NEMA 4X and IP67 ratings, the module is resistant to dust, water, and other environmental factors. It operates efficiently within a wide temperature range, from -40°C to +85°C, ensuring stable performance even in extreme conditions. Additionally, the module’s long life expectancy (over 10 million hours) further enhances its reliability in demanding applications.
Why Choose the WOODWARD 5462-718 Speed Sensor Board?
- High Accuracy: The 5462-718 offers ±1% accuracy, ensuring precise speed control.
- Easy Integration: It integrates seamlessly with various sensors, making it highly versatile for multiple industrial setups.
- Robust Design: With NEMA 4X and IP67 ratings, it can be used in outdoor and harsh conditions, providing long-lasting reliability.
- Customizable Settings: The selectable filter options and precise speed regulation offer flexibility for various operational needs.
- Extended Lifespan: With an operational lifespan exceeding 10 million hours, the 5462-718 minimizes maintenance and replacement costs.
