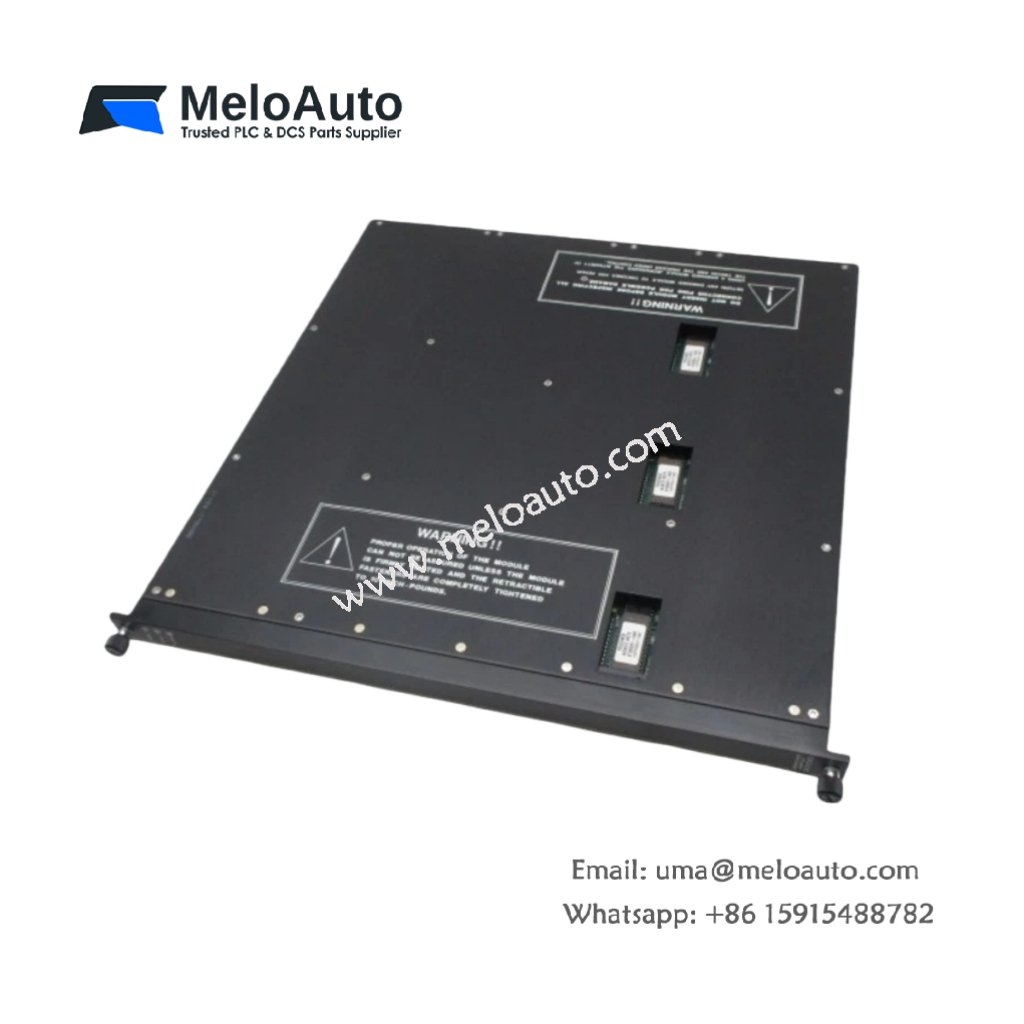

Triconex TRICON 3604E – Digital Output Module, 24VDC, 16 Point TMR

Overview

The Triconex TRICON 3604E is a robust Digital Output Module designed for high-reliability applications. It operates with a nominal voltage of 24VDC, providing 16 points for seamless integration in safety-critical systems. Notably, its TMR (Triple Modular Redundancy) design ensures that the module performs efficiently, even in the event of faults. In addition, this module offers 1500 VDC point isolation, making it ideal for environments where high availability and fault tolerance are essential.

Moreover, the Triconex TRICON 3604E guarantees outstanding performance by supporting non-commoned outputs. This feature helps avoid common ground issues and ensures clean and independent output signals. Furthermore, with surge protection and advanced diagnostic features, the module can support uninterrupted operations in demanding industrial environments.

Key Features

• Nominal Voltage: The module operates at a stable 24 VDC, compatible with a wide variety of industrial systems.
• TMR Design: By using Triple Modular Redundancy (TMR), the Triconex TRICON 3604E ensures high availability. It tolerates faults in one or two channels, thereby minimizing downtime and enhancing system reliability.
• 16 Digital Outputs: With 16 non-commoned outputs, this module provides significant flexibility, allowing independent operation of various output devices.
• Wide Voltage Range: It supports an extensive voltage range from 22 VDC to 45 VDC, ensuring compatibility across multiple industrial setups.
• Low Voltage Drop: The module typically maintains a voltage drop of less than 4V, which optimizes energy efficiency and system stability.
• High Current Ratings: It can handle 2A per point, with a 10A surge for 10 ms, offering robust performance for high-demand applications.
• Minimal Load Leakage: The Triconex TRICON 3604E exhibits minimal load leakage, with a maximum of 2 mA, ensuring efficient energy consumption.
• Field Termination Fuses: To protect against overloads, the module features 1 fuse per output, rated 2.5A, and is fast-acting, preventing potential damage to the system.
• Point Isolation: Each output point is 1500 VDC isolated, which minimizes the risk of electrical faults and enhances operational safety.
• Durable Enclosure: The module comes in a dark blue color, which provides both durability and easy identification in complex installations.

Applications

• Industrial Automation: The Triconex TRICON 3604E is ideal for high-reliability automation systems. It provides safe and accurate digital outputs, which are vital for critical industrial applications.
• Safety Instrumented Systems (SIS): The module plays a key role in safety applications, as it supports TMR, which is crucial for minimizing system failure and maintaining consistent performance.
• Harsh Industrial Environments: Due to its point isolation and high fault tolerance, the Triconex TRICON 3604E is highly suited for use in hazardous and demanding environments where reliability is paramount.

Technical Specifications

Why Choose the Triconex TRICON 3604E Digital Output Module?

The Triconex TRICON 3604E provides advanced features like TMR redundancy, 1500 VDC isolation, and high current ratings, making it the perfect choice for industrial systems that require fault tolerance and high availability. Thanks to its flexible voltage range and low voltage drop, it ensures maximum operational efficiency and compatibility across various applications. Moreover, the surge protection and field termination fuses offer added layers of safety, reducing the risk of damage and failure.

Conclusion

In conclusion, the Triconex TRICON 3604E Digital Output Module is engineered to provide superior reliability and flexibility. Its TMR design, point isolation, and robust electrical characteristics make it a top choice for safety-critical systems. When you choose the Triconex TRICON 3604E, you invest in a highly reliable and efficient solution that will support your industrial applications for years to come.
