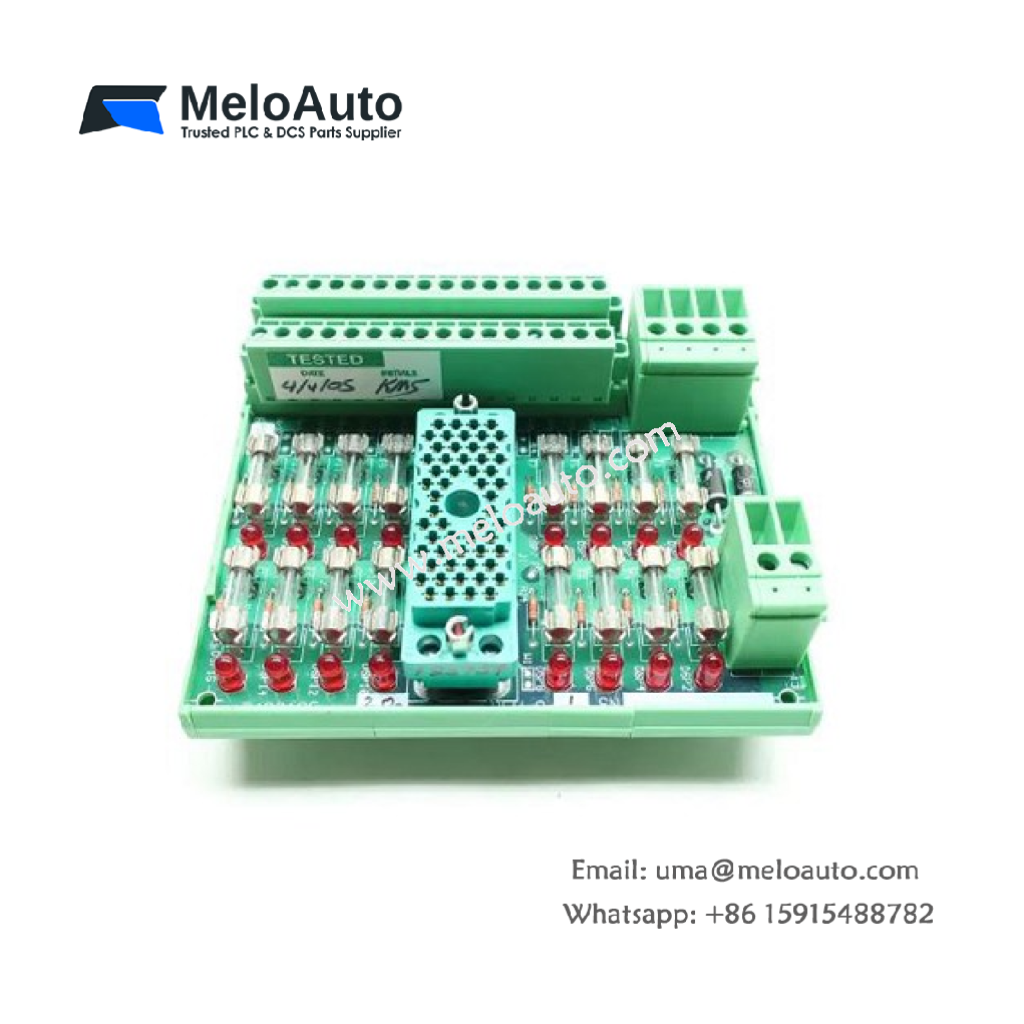

Triconex 9563-810 3000510-380 Termination Panel

Overview

The Triconex 9563-810 is a 16-point termination panel designed for use with 24V digital input modules. It features commoned power terminals (PWR+ and PWR–) and fuse protection for each input, with blown-fuse indicators to enhance reliability. The panel is compatible with 32-point digital input modules, requiring two panels per module.

Key Features

Feature	Description
Model Number	9563-810
Voltage Rating	24V (AC/DC)
Number of Points	16
Panel Type	Commoned
Leakage Current per Point	Maximum: 3.3 mA Typical: 2.5 mA
Fuse Protection	Yes, with blown-fuse indicator
Compatibility	Works with 32-point digital input modules

Compatible Digital Input Modules

Module	Points per Module	Description	Fuse
3503E	32	24 VAC/VDC, commoned in groups of 8, TMR with self-test	1A, slow
3505E	32	24 VDC, low-threshold, commoned in groups of 8, TMR with self-test	1A, slow
