Overview

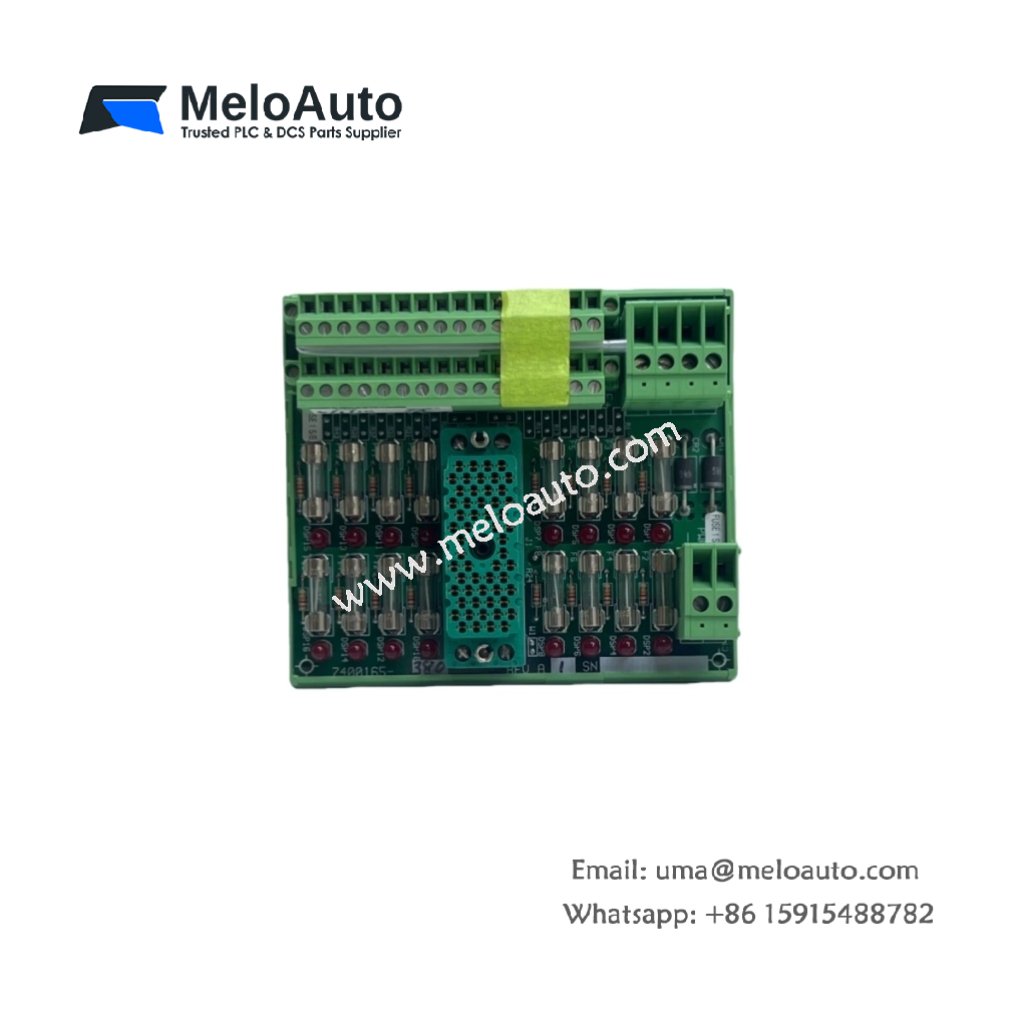

The Triconex 9563 is a reliable and efficient digital input termination panel used in industrial automation systems. It connects to 24V digital input modules, providing seamless integration and efficient handling of digital input signals. Designed for compatibility and durability, the Triconex 9563 offers 16 commoned input points, ensuring optimal performance in demanding environments. Its features, such as fuse protection and blown-fuse indicators, ensure long-lasting operation and minimal downtime.
This panel is an essential component for applications requiring high levels of system integrity, safety, and reliability. It is designed to support the Triconex 3503E and 3505E digital input modules, making it a versatile and flexible solution for industrial automation needs.
Key Features
- 16 Input Points: Each point supports 24V digital inputs, providing reliable system control.
- Fuse Protection: Every input point is equipped with a fuse, and a blown-fuse indicator is provided for ease of maintenance.
- Commoned Power Terminals: PWR+ and PWR- terminals ensure simplified power connections.
- High Compatibility: Designed to be compatible with Triconex 3503E and 3505E digital input modules.
- Labeling Options: Includes two sets of labels for points 1-16 and 17-32, ensuring easy identification and configuration.
- Leakage Current: Max leakage current is 3.3mA, with a typical leakage of 2.5mA per point.
Applications
The Triconex 9563 termination panel is ideal for:
- Industrial automation systems requiring reliable digital input handling.
- Safety-critical systems where reliability and system integrity are essential.
- Integration with Triconex digital input modules for seamless system operation.
- Process control applications in sectors like manufacturing, oil and gas, and energy production.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | Triconex 9563 |
| Type | Digital Input Termination Panel |
| Input Points | 16 input points |
| Voltage Compatibility | 24V Digital Inputs |
| Leakage Current (Max) | 3.3 mA per point |
| Leakage Current (Typical) | 2.5 mA per point |
| Power Terminals | Commoned power terminals (PWR+ and PWR-) |
| Fuse Protection | Each point protected by fuse |
| Blown-Fuse Indicator | Yes |
| Compatible Modules | 3503E and 3505E |
| Fuses | 1A, slow blow fuses per module |
| Dimensions | Standard 19″ rack-mountable |
| Labeling | Two sets of labels (1-16, 17-32) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95%, non-condensing |
Why Choose the Triconex 9563?
The Triconex 9563 is an excellent choice for industrial control systems, providing:
- Reliable digital input handling with built-in fuse protection and blown-fuse indicators.
- Ease of use with clearly labeled terminals and input points.
- Enhanced system integration with compatibility for Triconex 3503E and 3505E modules.
- Durable design that ensures optimal performance in a wide range of industrial environments.
This termination panel simplifies wiring and enhances the efficiency of your automation system. It is built to provide safe, reliable operation for years.
Conclusion
In conclusion, the Triconex 9563 digital input termination panel is a robust and reliable solution for handling 24V digital inputs in industrial automation systems. Its compatibility with Triconex 3503E and 3505E modules, fuse protection, and easy labeling make it a versatile choice for process control applications. Choose the Triconex 9563 for your automation needs, and experience enhanced reliability and performance.
