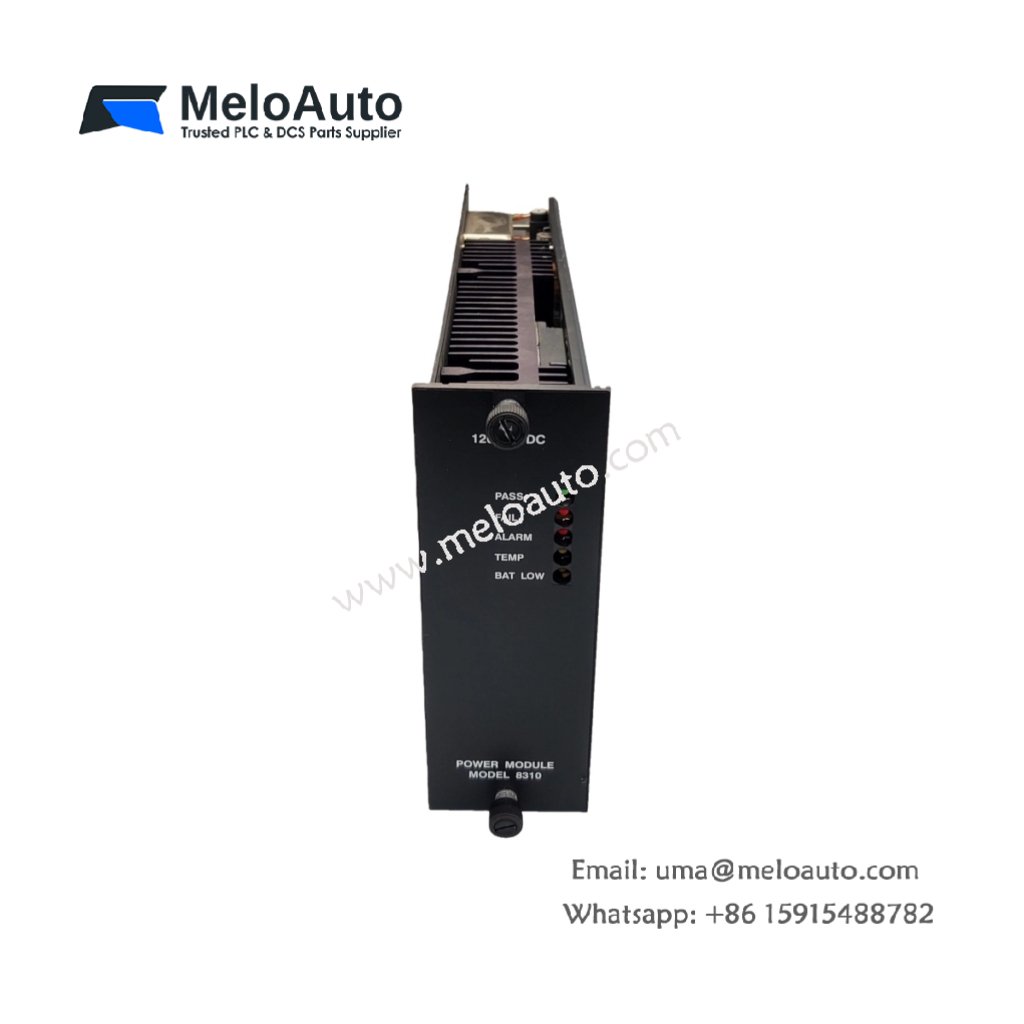

Triconex 8310 Power Module

The Triconex 8310 is a robust power module designed for integration into Triconex safety systems. Manufactured by Schneider Electric, this module offers reliable power supply management for critical safety and automation processes. Its 175-watt power capacity ensures stable performance across a range of applications, making it ideal for industrial control systems.

Key Features of the Triconex 8310 Power Module

Power Capacity: Provides a total of 175 watts for reliable system operation.
Nominal Voltage: Supports 120 VAC/VDC for versatile usage in industrial environments.
Chassis Compatibility: Compatible with Main, Expansion, and RXM chassis types for flexible integration.
Input Voltage Range:
- AC: 85–140 VAC (47-63 Hz)
- DC: 95–180 VDC
Fuse Rating: Equipped with a 5 amp, time-delay fuse for added protection against overloads and faults.
Input Frequency: Designed for 47-63 Hz AC input, ensuring adaptability to a wide range of industrial power supplies.

Technical Specifications

Parameter	Details
Model Number	Triconex 8310
Product Type	Power Module
Power Capacity	175 watts
Nominal Voltage	120 VAC/VDC
Input VAC	85-140 VAC (47-63 Hz)
Input VDC	95-180 VDC
Fuse Rating	5 amps, time-delay
Chassis Compatibility	Main, Expansion, RXM

Applications of the Triconex 8310

The Triconex 8310 power module is widely used in safety-critical applications across various industries, such as:

Oil & Gas: Reliable power supply for wellhead control systems and offshore platforms.
Chemical Processing: Ensures continuous operation in chemical plants, including hazardous material handling.
Power Generation: Ideal for power plants, including nuclear and coal-fired stations, where continuous power is essential for safety systems.
Water Treatment: Provides consistent power for water purification and wastewater treatment plants, supporting critical safety controls.
