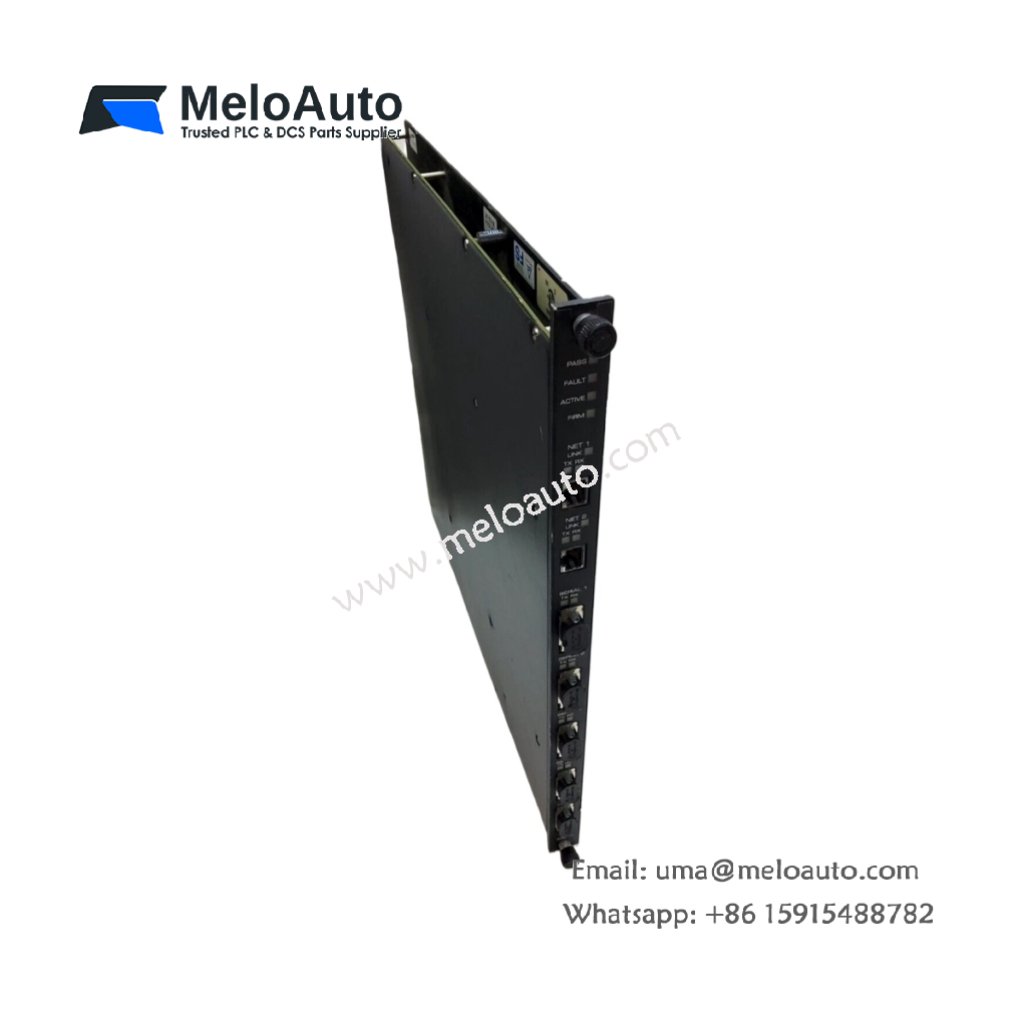

Triconex 4354 Digital Output Module

The Triconex 4354 is a high-performance Digital Output Module specifically designed for use in Triconex safety and control systems. It offers fast and reliable output essential for critical applications in industries such as oil and gas, power generation, and chemical processing. The Triconex 4354 features 32 isolated output channels, providing exceptional performance even in harsh environments. This module ensures precise control for complex industrial processes, maintaining system stability and operational safety.

The Triconex 4354 is designed to meet the highest industry standards, ensuring seamless integration and reliability for demanding applications. With features like fast response time, high isolation voltage, and low power consumption, it delivers optimal performance without compromising safety or efficiency.

Key Features of the Triconex 4354 Digital Output Module

Output Channels: Offers 32 isolated output channels for secure, reliable performance in critical processes.
Output Voltage Range: Provides a stable 24V DC output for consistent operation.
Output Current: Delivers 2A per channel, ensuring sufficient power for demanding applications.
Response Time: Boasts a fast response time of less than 1 millisecond for real-time control.
Isolation Voltage: Features a 1500V RMS isolation between channels and system to prevent interference.
Power Consumption: Operates at a low power consumption of just 10W, enhancing energy efficiency.

Environmental Specifications of the Triconex 4354

Operating Temperature: Designed to function in temperatures ranging from -20°C to +60°C, making it ideal for challenging environments.
Storage Temperature: Safe for storage in temperatures between -40°C to +85°C.
Humidity: Withstands humidity levels between 5% and 95% RH, non-condensing, ensuring reliable operation in various environmental conditions.

Physical Specifications of the Triconex 4354**

Specification	Details
Model Number	Triconex 4354
Type	Digital Output Module
Manufacturer	Triconex
Output Channels	32 isolated channels
Output Voltage Range	24V DC
Output Current	2A per channel
Response Time	Less than 1 millisecond
Isolation Voltage	1500V RMS between channels and system
Power Consumption	10W
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% RH, non-condensing
Dimensions	2.3 x 40.4 x 40 cm
Weight	2.26 kg

Why Choose the Triconex 4354 Digital Output Module?

High Reliability: The Triconex 4354 ensures dependable performance in harsh environments, guaranteeing uninterrupted control over critical processes.
Fast Response: With a rapid response time of less than 1 millisecond, it ensures quick system reactions in real-time operations.
Safe and Isolated: The module’s 1500V RMS isolation offers enhanced safety, preventing electrical interference between channels.
Efficient and Low Power Consumption: Operating at just 10W, the Triconex 4354 is energy-efficient without sacrificing power or performance.
Versatile Environmental Tolerance: The Triconex 4354 works effectively across a wide range of temperatures and humidity levels, ensuring stability in diverse environments.

Conclusion

The Triconex 4354 Digital Output Module is an essential component for industries that demand reliable, high-speed output for safety and control applications. With its outstanding isolation, fast response time, and robust environmental tolerance, the Triconex 4354 ensures continuous, safe operation of critical industrial systems. Whether in oil and gas, power generation, or chemical processing, this module offers the high-performance, safety, and efficiency required for mission-critical operations.
