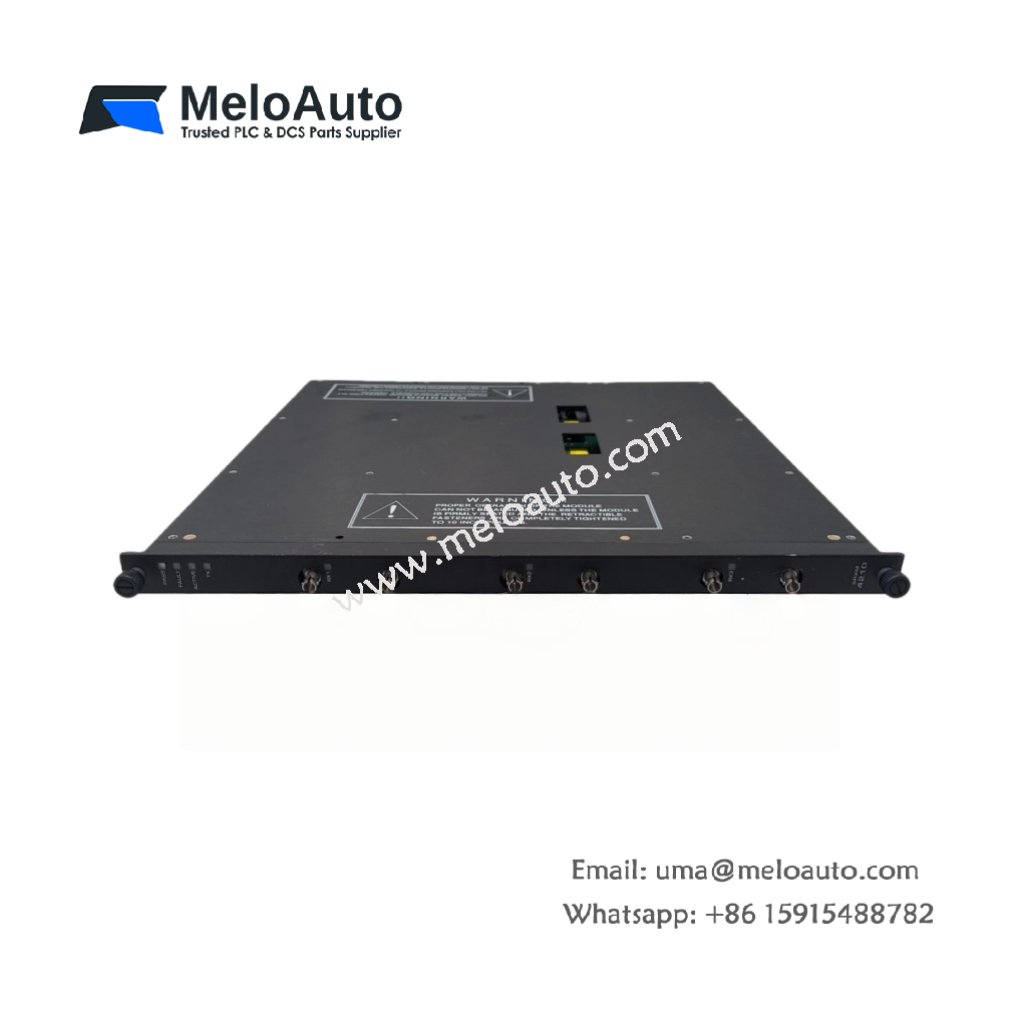

Triconex 4210 Remote Extender Module

The Triconex 4210 is a reliable Remote Extender Module designed to extend communication capabilities in safety-critical systems. By integrating single-mode fiber optic technology, this module ensures secure and efficient data transmission, even over long distances. It is ideal for industries that require high-performance communication and real-time system diagnostics.

Key Features

Single-Mode Fiber Optic Technology: The Triconex 4210 utilizes single-mode fiber optic to achieve robust and stable data transmission. As a result, it guarantees excellent communication quality over extended distances, even in large industrial environments.
Long Cable Length Support: This module supports cable lengths of up to 7.5 miles (12 kilometers), offering flexibility for installation across vast industrial sites while maintaining reliable performance.
Remote Site Connectivity: The Triconex 4210 enables connectivity with up to 3 remote sites, making it perfect for industries that require multiple locations to stay connected and efficiently managed.
ST Fiber Optic Connectors: It comes equipped with ST connectors, ensuring secure and seamless fiber optic connections. These connectors enhance the reliability and longevity of the module’s performance.
Comprehensive Diagnostic Indicators: Equipped with diagnostic indicators such as PASS, FAIL, ACTIVE, TX, RX1, RX2, and RX3, the Triconex 4210 allows for real-time monitoring and quick identification of any system issues, facilitating preventive maintenance.

Technical Specifications

The Triconex 4210 is designed to handle demanding industrial requirements. Below are its key specifications:

Feature	Specification
Product Number	4210
Product Type	Remote Extender Module
Fiber Optic Type	Single-Mode
Number of Modules	Set of 3 Modules
RXM Chassis Location	Primary
Cable Type	Single-mode
Cable Length Limit	7.5 miles (12 km)
Connectors	6/Remote Site
Remote Sites Supported	3
Modem Ports	Fiber Optic with ST connectors
Diagnostic Indicators	PASS, FAIL, ACTIVE, TX, RX1, RX2, RX3

Applications

The Triconex 4210 is ideal for use in environments that demand extended communication capabilities. It fits perfectly in applications such as:

Industrial Process Control: The Triconex 4210 extends reliable communication between control systems and remote sites, ensuring continuous data flow and system management.
Safety and Security Systems: This module supports real-time diagnostics, ensuring constant monitoring and rapid responses to potential security or safety issues.
Remote Monitoring: It allows for efficient monitoring of distant locations, improving the overall operational performance and reducing downtime.

Conclusion

To conclude, the Triconex 4210 Remote Extender Module offers high-performance single-mode fiber optic communication. With support for up to 3 remote sites and a long cable length limit of 7.5 miles (12 km), it is perfect for industrial applications that require reliable data transmission across vast areas. The ST connectors ensure seamless integration, while the diagnostic indicators provide real-time insights into system health.
