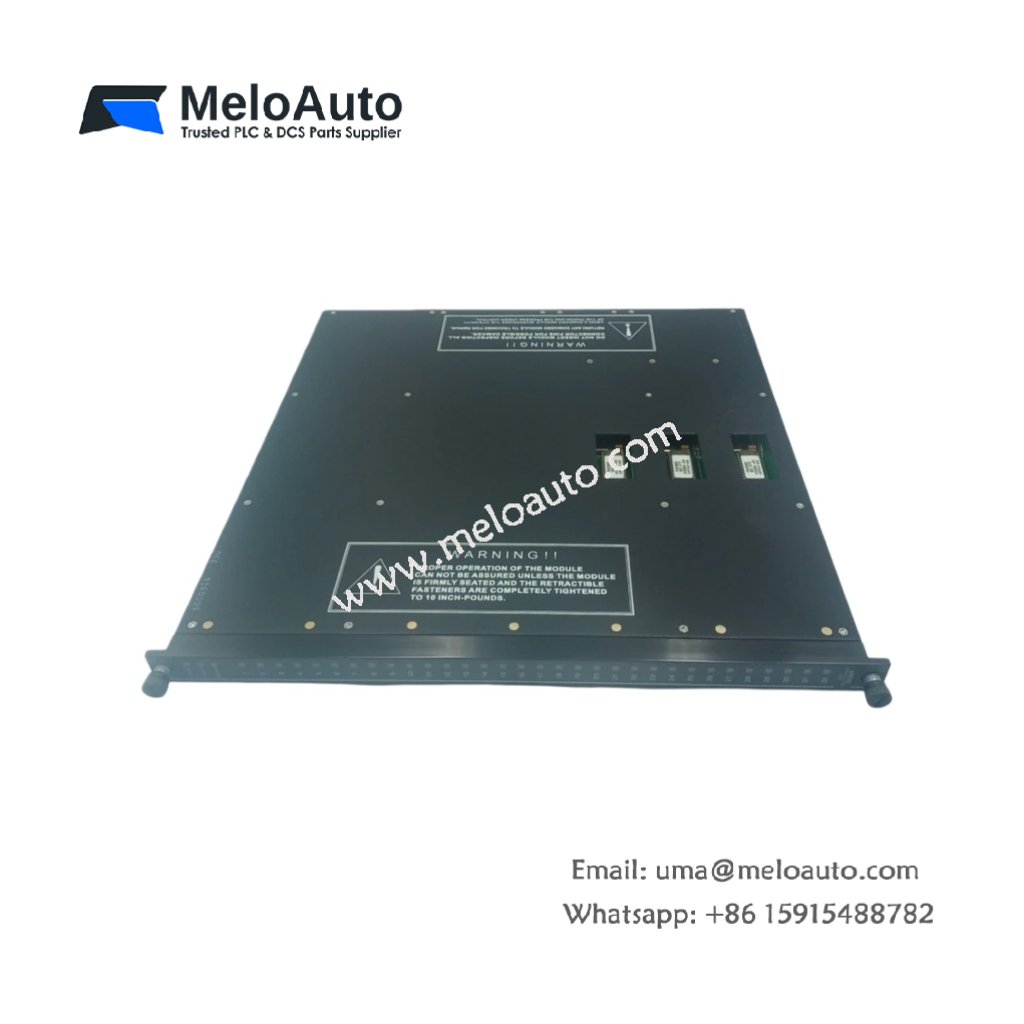

Triconex 3636R Non-Triplicated Relay Output Module

The Triconex 3636R is a non-triplicated relay output (RO) module, designed to provide reliable and high-performance control in critical safety systems. This module supports 32 non-commoned points and handles a wide voltage range from 125 VAC/DC, making it suitable for applications in industries like oil & gas, chemical processing, and power generation. By offering advanced features such as high power switching capacity and point isolation, it ensures optimal system reliability and operational safety.

Key Features of the Triconex 3636R Relay Output Module

Fault-Tolerant and Reliable Design: The Triconex 3636R uses a non-triplicated design for improved reliability without redundant complexity. This enables efficient operation while maintaining high safety standards.
High Voltage and Current Handling: The module supports a voltage range of 125 VAC/DC and handles up to 2A per point. This makes it highly versatile, capable of managing both high and low power outputs across various applications.
Precise Switching Power: With up to 2,000 VA and 150 watts maximum resistive switching power, the Triconex 3636R provides accurate and dependable control over field devices like actuators and alarms. This ensures reliable operation in demanding industrial settings.
Point Isolation for Enhanced Safety: The module delivers 1,500 VDC isolation for each point, preventing faults from spreading across the system. This isolation protects the integrity of the entire safety system, ensuring safe and uninterrupted operation.
Diagnostic Indicators for Easy Monitoring: Built-in diagnostic indicators provide real-time status updates, including PASS, FAULT, and ACTIVE signals. These indicators simplify troubleshooting and allow operators to monitor system health at a glance.
Fusing for Protection: Each output is protected with a fast-acting 2.5A fuse, ensuring that the system remains safe from electrical faults and short circuits, thus increasing overall reliability.
Color-Coded for Easy Identification: The Triconex 3636R features a silver-blue color code, allowing for quick and easy identification during installation and maintenance.

Technical Specifications

Parameter	Details
Model	Triconex 3636R
Module Type	Non-triplicated Relay Output Module
Points	32, non-commoned
Voltage Range	125 VAC/DC
Maximum Current Load	2A per point
Minimum Permissible Load	10 mA, 5 VDC
Switching Power (Resistive)	2,000 VA, 150 watts maximum
Point Isolation	1,500 VDC (for 3636R)
Fuses	1 per output (2.5A fast-acting)
Diagnostic Indicators	Output status: 1 per point; Module status: PASS, FAULT, ACTIVE
Output Contact	Normally Open
Color Code	Silver Blue

Applications

The Triconex 3636R is essential for industries that demand precise and reliable relay output control:

Oil & Gas: The Triconex 3636R ensures safe, reliable operation in harsh and hazardous environments, enabling secure control of field devices.
Chemical Processing: Ideal for controlling safety-critical systems in chemical plants, the Triconex 3636R maintains constant output stability.
Power Generation: In power plants, this module provides secure, uninterrupted relay output control, enhancing operational safety and efficiency.
Manufacturing: The Triconex 3636R supports automation systems in manufacturing plants, ensuring reliable performance and minimizing downtime.
