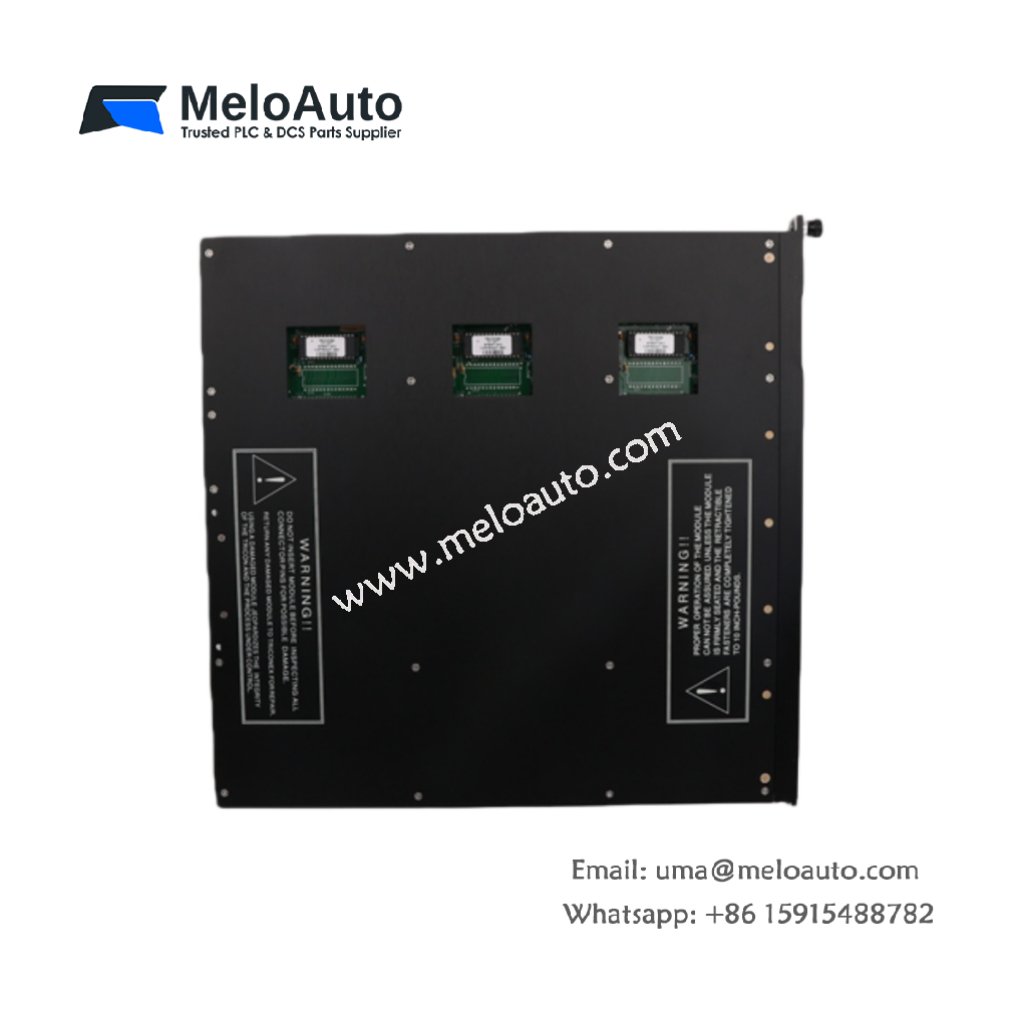

TRICONEX 3511 Pulse Input Module

Overview

The TRICONEX 3511 Pulse Input Module is designed for precise frequency and RPM measurement in industrial automation systems. This high-performance module provides reliable input signals with exceptional accuracy, ensuring smooth and efficient operation of critical machinery like turbines and compressors. Whether in power generation, chemical processing, or oil and gas industries, the 3511 Pulse Input Module meets the demands of high-speed, high-frequency applications.

Key Features

High-Performance Inputs: The module offers 8 non-commoned inputs, ensuring precise frequency and RPM measurement.
Exceptional Accuracy: With a resolution of 16 bits, the 3511 achieves an accuracy of ±0.01% from 1,000 Hz to 20,000 Hz.
Versatile Signal Detection: Optimized for use with non-amplified magnetic speed sensors, this module effectively detects voltage transitions from magnetic transducers.
TMR Redundancy: Triple Modular Redundancy (TMR) design ensures high availability and reliability in critical applications.
Wide Frequency Range: Accurately measures frequencies from 20 Hz to 20,000 Hz.
Compact and Robust: Designed to endure demanding industrial environments, the module provides stable performance over time.

Technical Specifications

Specification	Details
Model Number	TRICONEX 3511
Category	PLCs/Machine Control
Subcategory	PLC Module/Rack
Product Type	Pulse Input Module
Module Type	TMR (Triple Modular Redundant)
Input Signals	8 non-commoned
Resolution	16 bits
Accuracy	±0.01% at 1,000 Hz to 20,000 Hz
Input Characteristics	AC coupled, balanced differential
Update Rate	25 ms (typical)
Impedance (Load)	>8 kΩ, 20 kΩ typical
Common Mode Range	-100 VDC to +100 VDC peak-to-peak
Normal Mode Range	1.5 V to 200 V peak-to-peak
Overrange Protection	+150 VDC continuous
Hysteresis	150 millivolts, typical
Wave Shape	Sine, Square, Pulse, etc.
Duty Cycle	10% to 90%
Frequency Range	20 Hz to 20,000 Hz
Current Range	0-20 mA (250-ohm shunt)
Diagnostic Indicators	Input Status (1 per point), Module Status (PASS, FAULT, ACTIVE)
Weight	3.03 kg
Manufacturer	Triconex
Color Code	Light Purple

Product Description

The TRICONEX 3511 Pulse Input Module is specifically designed to measure frequencies and RPMs from rotating equipment. It effectively captures pulse signals from magnetic transducers, processes the data, and converts it into frequency or RPM values. These values are then transmitted to the system’s Main Processors for further processing and analysis.

The module’s 16-bit resolution allows for extremely precise measurements, even in demanding applications. With its wide frequency range of 20 Hz to 20,000 Hz, it supports a broad spectrum of machinery, including turbines, compressors, and motors. Additionally, the 3511 can handle a wide variety of signal types, such as sine, square, pulse, and more, making it versatile across many industries.

Benefits of the TRICONEX 3511 Pulse Input Module

High-Precision Performance: Achieve precise frequency and RPM measurements in a variety of industrial applications.
Redundant Design: The TMR (Triple Modular Redundant) configuration provides enhanced reliability for mission-critical systems.
Flexibility: Supports different signal types and an extensive frequency range, ensuring compatibility with diverse rotating equipment.
Easy Integration: Seamlessly integrates into Triconex control systems, ensuring smooth operation.
Robust Diagnostics: Built-in diagnostic indicators provide clear feedback on module status, facilitating quick troubleshooting.

Applications

The TRICONEX 3511 Pulse Input Module is ideal for a wide range of applications, including:

Process Control: Provides accurate frequency monitoring in process automation.
Oil & Gas: Ensures reliable performance in high-speed rotating equipment used in oil and gas operations.
Chemical Industry: Facilitates precise RPM measurements for critical machinery in chemical plants.
Power Generation: Optimized for measuring the performance of rotating machinery in power plants.
Water Treatment: Monitors equipment speeds in water and wastewater treatment facilities.

Why Choose the TRICONEX 3511?

The TRICONEX 3511 Pulse Input Module is a high-performance solution for industries requiring precise frequency measurement and RPM monitoring. Its reliable TMR design, wide input range, and easy integration make it the ideal choice for critical systems in industrial automation. With this module, you can ensure efficient and accurate performance of your rotating equipment.
