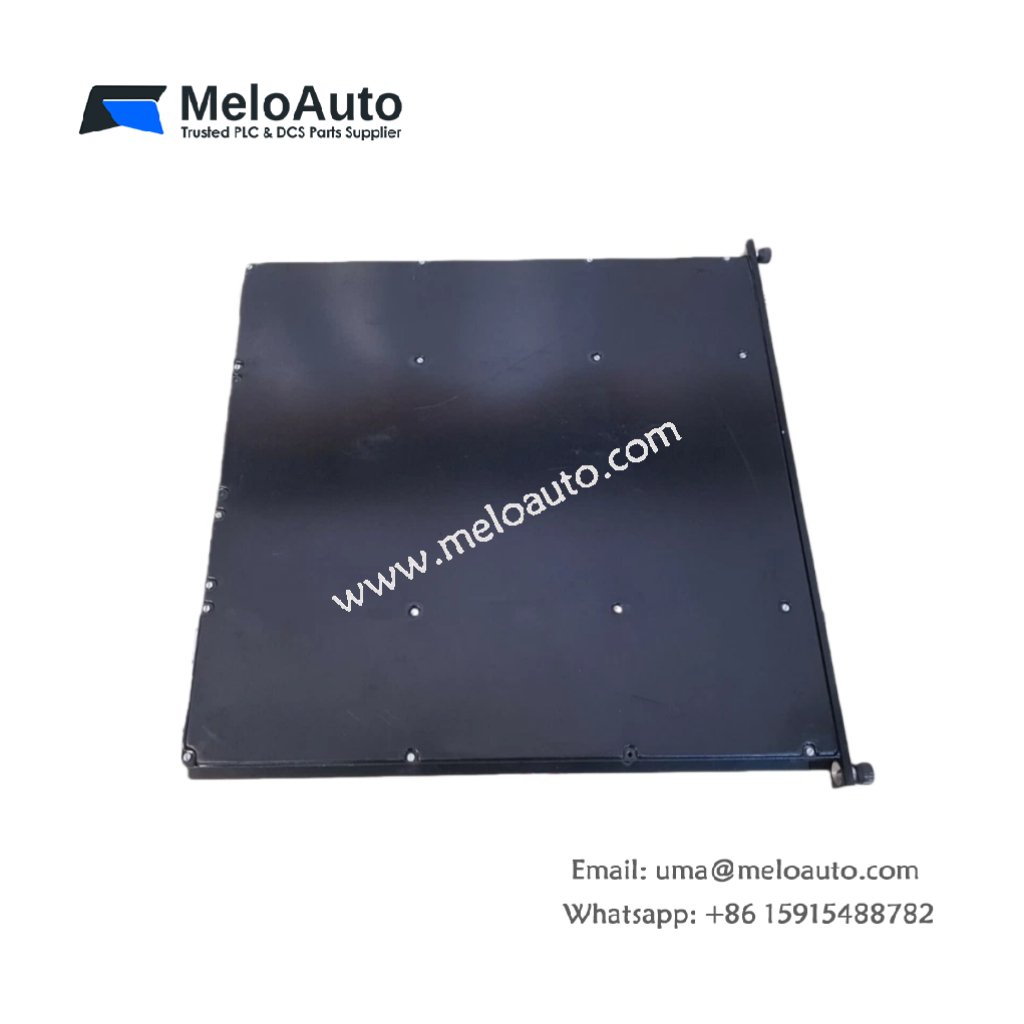

Triconex 3510 Pulse Input Module

The Triconex 3510 Pulse Input Module delivers accurate and reliable pulse data for safety-critical systems. It interfaces with pulse-generating field devices, such as speed sensors, encoders, and flow meters, to provide high integrity pulse data to Triconex safety and process control systems. With its eight non-commoned inputs, the module supports AC-coupled, balanced differential inputs and integrates Triple Modular Redundancy (TMR) architecture. These features ensure precise measurements and enhance fault detection in industrial and safety-critical environments.

Key Features

Eight non-commoned pulse inputs offer flexibility for different field devices.
Wide input frequency range: From 20 Hz to 20,000 Hz, it supports diverse applications.
High accuracy: ±0.01% accuracy for frequencies between 1,000 Hz and 20,000 Hz.
Advanced diagnostics: Monitors fault conditions to ensure reliable operation.
TMR architecture: Provides redundant data paths for improved measurement accuracy and fault tolerance.
Robust protection: Ensures continuous operation even with +150 VDC over-range protection.

Technical Specifications

Parameter	Specification
Model Number	3510
Module Type	Pulse Input Module (PI)
Color Code	Light purple (module stripe)
Number of Input Signals	8 non-commoned
Input Frequency Range	20 Hz to 20,000 Hz
Accuracy at 1,000 Hz – 20,000 Hz	±0.01%
Accuracy at 100 Hz – 999 Hz	±0.1%
Accuracy at 20 Hz – 99 Hz	±1.0%
Minimum Input Change (Diagnostic)	0.5% of full scale
Input Change Sample Period	1 scan or 210 ms, whichever is greater
Minimum Period of Mis-compares	10 samples
Status Indicators	Input activity (1 per point), Module status (PASS, FAULT ACTIVE)
Logic Power Consumption	< 20 W
Input Update Rate	~50 ms typical
Load Impedance	> 8 kΩ (typical – 20 kΩ)
Common Mode Range	-100 V to +100 V peak-to-peak
Normal Mode Range	1.5 V to 200 V peak-to-peak (20 Hz – 15 kHz)
Over-range Protection	+150 VDC continuous
Hysteresis (Typical)	150 mV
Input Type	AC-coupled, balanced differential

Description

The Triconex 3510 Pulse Input Module provides high-precision pulse measurements for demanding safety and process control applications. It integrates with Triconex safety systems, delivering reliable data from pulse-generating devices like encoders, speed sensors, and flow meters. The module features eight non-commoned pulse inputs, allowing it to interface with a variety of industrial devices.

With ±0.01% accuracy at higher frequencies (1,000 Hz to 20,000 Hz), and ±1.0% accuracy at lower frequencies (20 Hz to 99 Hz), the module ensures precise and consistent performance. Additionally, its advanced diagnostics feature actively monitors the system for faults, ensuring quick response times to irregularities.

The AC-coupled, balanced differential inputs and TMR architecture provide redundancy and improve fault tolerance, ensuring that data remains accurate even in challenging environments. Furthermore, the 3510 module includes over-range protection of +150 VDC, adding an extra layer of security to your operations.

Applications

Safety-critical systems: Ideal for applications requiring high-reliability signal acquisition.
Process control: Ensures accurate pulse data for system monitoring and control.
Flow and speed measurement: Works seamlessly with encoders, flow meters, and speed sensors.
