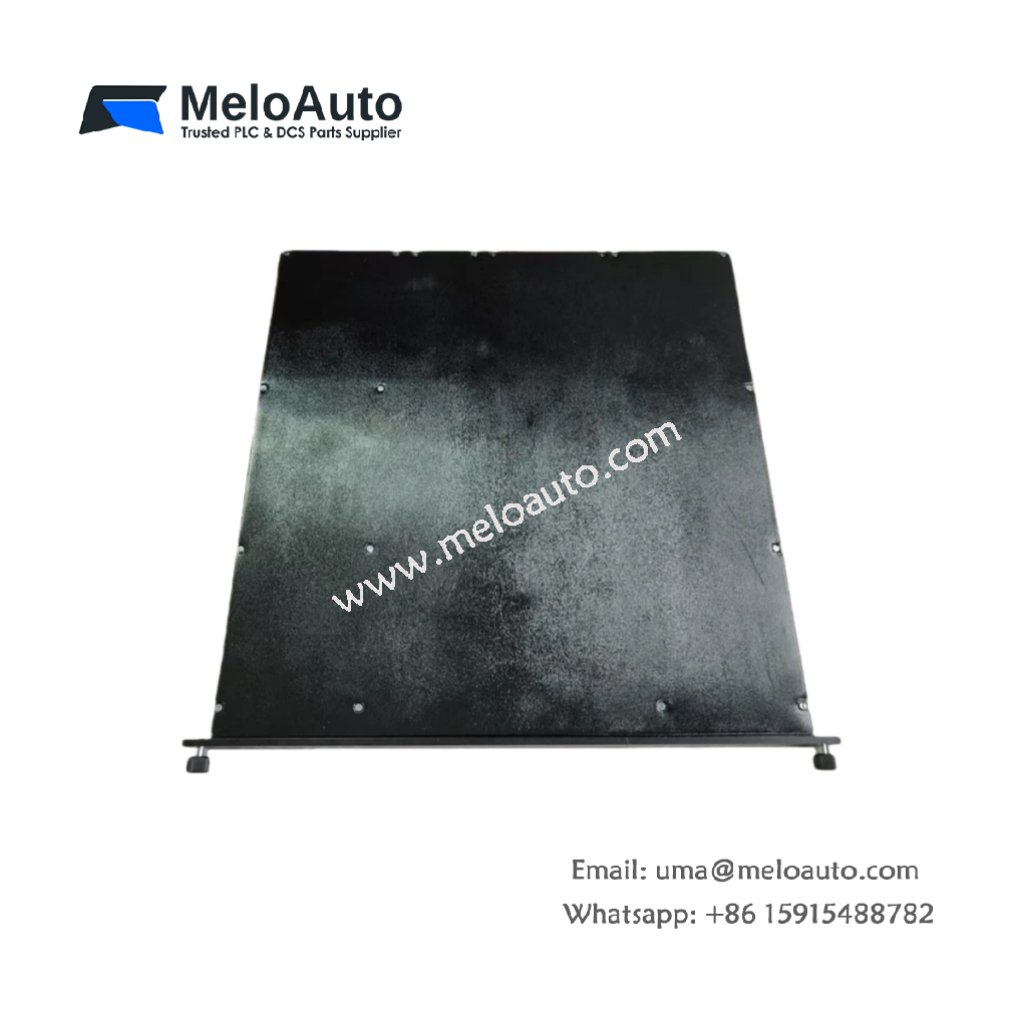

Triconex 3482 High-Speed Communication Module

The Triconex 3482 High-Speed Communication Module offers high-performance, reliable, and secure communication for Triconex process control systems. It enables seamless data exchange between the Triconex system and various devices, including PLCs, PCs, and RTUs. Designed to deliver fast and stable communication, it supports multiple protocols to enhance integration in diverse industrial environments.

Key Features

Data rates up to 100 Mbps: Supports high-speed data transfer for demanding applications.
Multiple communication protocols: Includes Ethernet, Modbus, and Profibus for flexible system integration.
Hot-swappable: Easily replaceable for efficient maintenance without system downtime.
Redundant power supplies: Ensures high availability and system reliability.
Backward compatibility: Works with older Triconex systems for seamless upgrades and integration.

Technical Specifications

Parameter	Specification
Model Number	3482
Module Type	High-Speed Communication Module
Communication Protocols	Ethernet, Modbus, Profibus
Data Rate	Up to 100 Mbps
Ethernet Ports	2 x 100 Mbps Ethernet Ports
Power Supply	24V DC
Dimensions	222 mm x 107 mm x 35 mm
Weight	2.5 kg
Operating Temperature Range	Not specified (industrial range)
Environmental Conditions	Designed for harsh industrial environments

Description

The Triconex 3482 High-Speed Communication Module is built to support high-speed communication within Triconex process control systems. It offers a range of communication protocols such as Ethernet, Modbus, and Profibus, ensuring compatibility with various industrial devices. The module supports data rates up to 100 Mbps, enabling fast data exchange in real-time control applications.

With two Ethernet ports running at 100 Mbps, the Triconex 3482 provides robust connectivity for a wide array of networked devices. Its hot-swappable design allows for quick and easy maintenance without disrupting system operation, making it a reliable choice for industrial environments where uptime is critical.

The module also features redundant power supplies, ensuring uninterrupted operation even in the event of a power failure. Its backward compatibility with older Triconex systems further extends its value, allowing seamless integration into existing setups with minimal disruption.

Applications

High-speed networking: Ideal for connecting the Triconex system to high-speed industrial networks.
Data exchange: Efficiently exchanges data between the Triconex system and other devices like PLCs, PCs, and RTUs.
Remote monitoring and control: Enables secure, remote management of industrial devices and systems.
