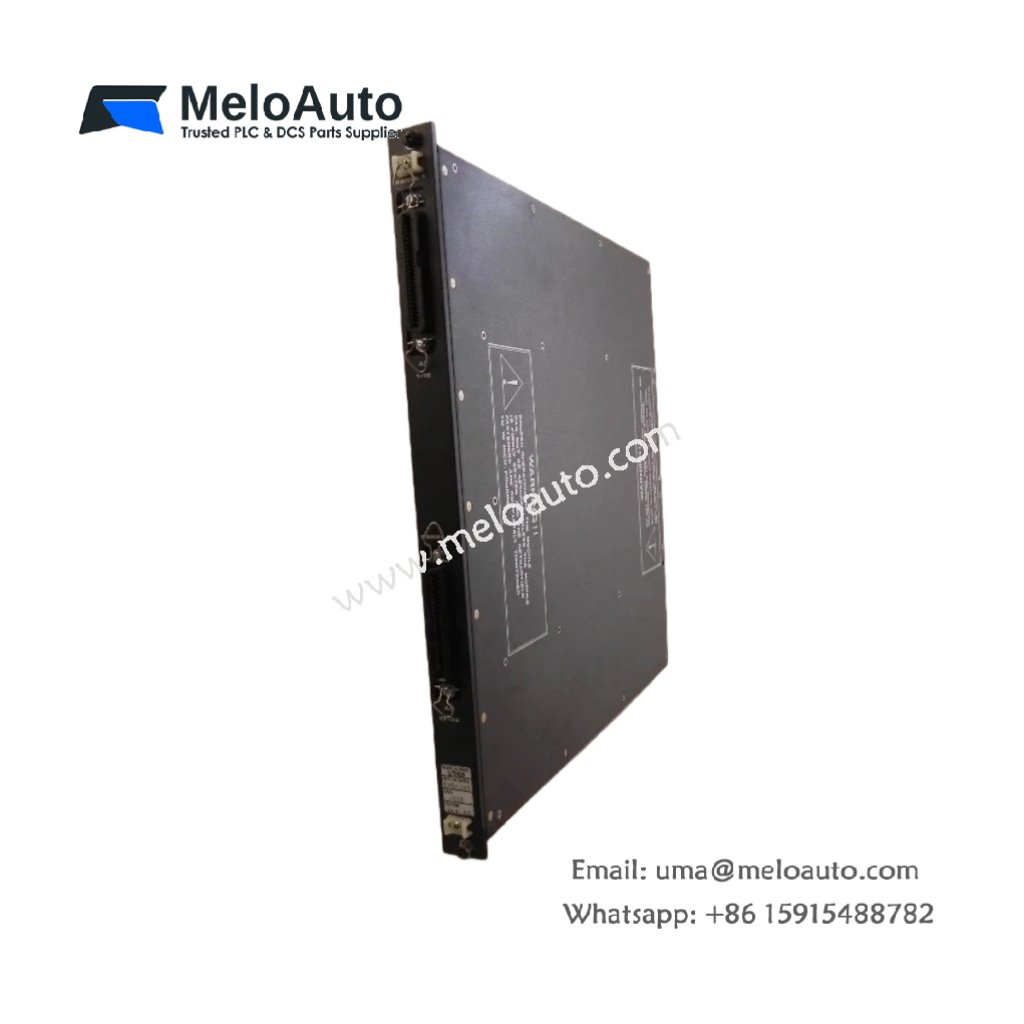

Triconex 2750-010 Analog Digital Input Module

The Triconex 2750-010 is a high-performance analog-to-digital input (AI) module specifically designed for the Triconex process control system. It converts analog signals into digital signals for processing by the Triconex processor. This module is engineered to meet the demands of safety-critical applications, ensuring reliable and precise signal conversion in industrial environments.

Key Features of the Triconex 2750-010 Analog Digital Input Module

The Triconex 2750-010 provides exceptional accuracy, high-speed sampling, and strong noise immunity. It is built for seamless integration into industrial automation systems where precise signal conversion is essential. Below are the main features of the module:

High-Speed Sampling: The module samples analog signals up to 100 kHz, ensuring real-time performance for applications requiring fast signal processing.
Accuracy: With an accuracy of up to 0.1%, the Triconex 2750-010 guarantees high precision in data conversion.
Noise Immunity: Designed to resist electrical noise, this module prevents interference during analog-to-digital signal conversion.
Isolation: The Triconex 2750-010 isolates itself from the power supply and other system modules, ensuring that electrical noise does not impact its performance.
Channel Isolation: Each input channel is isolated, preventing noise from one channel affecting the others.
Factory Calibration: The module comes factory-calibrated, ensuring it meets the highest accuracy standards from the start.
Self-Test Functionality: With its self-test capability, the Triconex 2750-010 allows users to verify its operation, ensuring continuous system reliability.

Technical Specifications

Specification	Details
Model	Triconex 2750-010
Type	Analog Digital Input Module
Accuracy	Up to 0.1%
Sampling Rate	100 kHz
Channel Isolation	Yes
Noise Immunity	High
Power Supply Isolation	Yes
Self-Test Function	Yes
Dimensions	198 mm x 130 mm x 35 mm
Weight	0.6 kg
Operating Temperature	-20°C to +70°C
Input Type	Analog Input
Manufacturer	Triconex (Schneider Electric)

Product Overview

The Triconex 2750-010 is a vital part of any Triconex process control system. It converts analog input signals into digital data for further processing. This module is designed to perform consistently in various industrial applications, offering high accuracy and reliability.

Durability and Performance

The Triconex 2750-010 delivers exceptional durability, even in harsh industrial conditions. It performs well across a wide temperature range, from -20°C to +70°C, making it suitable for both extreme heat and cold environments. As a result, this module ensures continuous performance in challenging industrial settings.

Integration and Reliability

Integrating the Triconex 2750-010 into your existing Triconex system is simple, thanks to its compact design. The module comes fully calibrated, so you can deploy it quickly without additional setup. With built-in self-test functionality, you can verify its operation at any time to maintain system reliability. The channel isolation feature ensures no interference from other signals, while its noise immunity guarantees uninterrupted performance.
