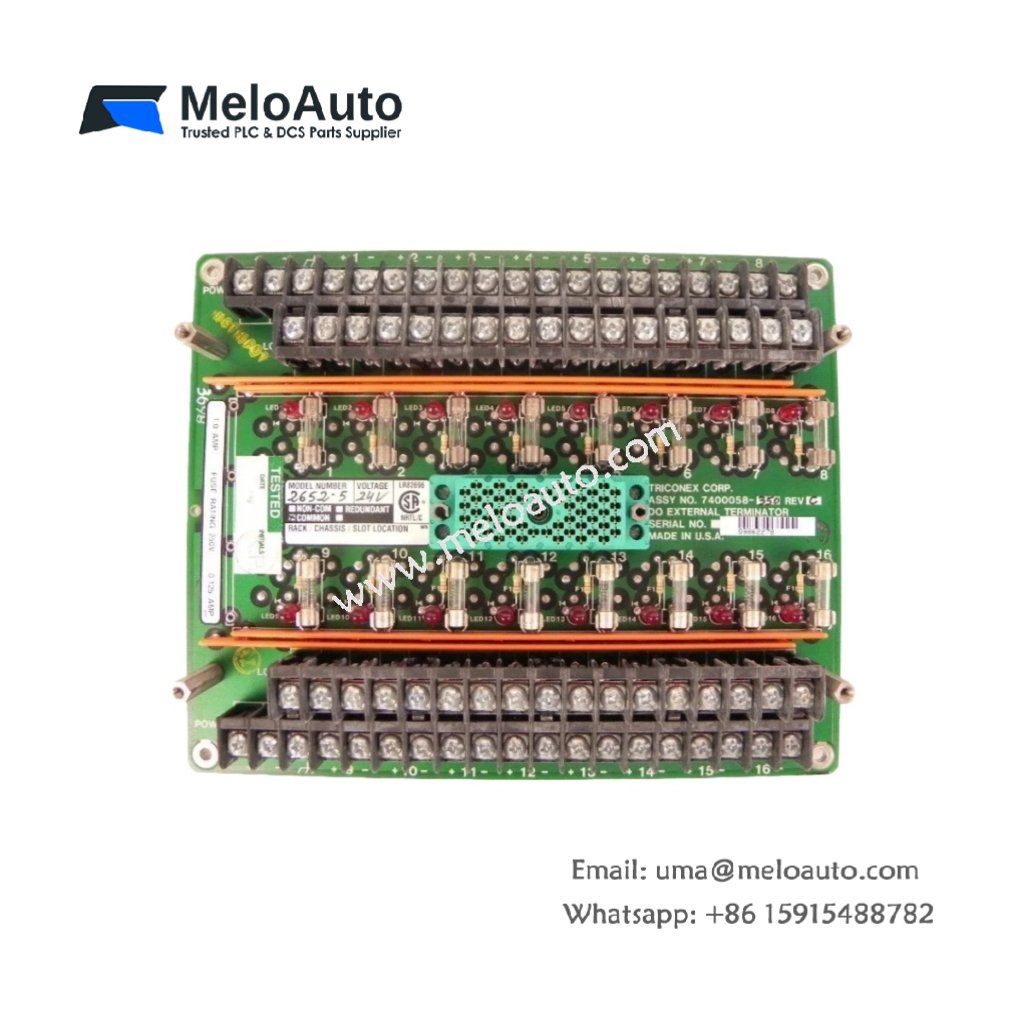

Triconex 2652-5 7400058-350 Terminal Board

Overview

The Triconex 2652-5 7400058-350 terminal board provides an essential connection between field devices and the Triconex Safety Instrumented System (SIS). It includes 32 isolated input channels, making it an ideal choice for diverse industrial applications. Notably, it supports multiple signal types such as dry contact, wet contact, and pulse. Additionally, the board offers key features like hot-swappable modules, high-integrity communication protocols, and advanced diagnostics, all ensuring robust system performance in safety-critical environments.

Key Features

32 Isolated Input Channels: The Triconex enables the connection of multiple devices at once, providing a flexible solution for complex safety systems.
Signal Type Flexibility: It accepts a wide range of signals, including dry contact, wet contact, and pulse, ensuring compatibility with various devices.
Point Isolation: The board guarantees high-level isolation, with a range from 1500 VDC to 2500 VDC. This feature enhances safety and minimizes system interference.
Hot-Swappable Modules: This board allows you to replace modules without disrupting system operations, minimizing downtime and maximizing operational continuity.
High-Integrity Communication: Featuring reliable communication protocols, the Triconex 2652-5 7400058-350 ensures secure data transmission, boosting the overall system’s stability.
Built-In Diagnostics: The board provides advanced diagnostic capabilities, offering early fault detection to streamline maintenance and avoid costly downtime.

Applications

Industrial Safety Systems: The Triconex 2652-5 7400058-350 is integral to Triconex safety systems, helping to safely monitor and control industrial processes in hazardous environments.
Field Device Integration: It is particularly suited for connecting field devices, such as sensors and switches, to safety instrumented systems.
Process Control: This terminal board is perfect for use in industries where operational safety, reliability, and efficiency are non-negotiable.

Technical Specifications

Parameter	Specification
Model	Triconex 2652-5 7400058-350
Product Type	Terminal Board
Input Channels	32
Signal Types	Dry contact, Wet contact, Pulse
Input Voltage Range	90-155 VAC/VDC
Input Current Range	6-9 mA
Point Isolation	1500 VDC to 2500 VDC
Power Consumption	2.9 W
Dimensions (L x W x H)	173 x 117 x 48 mm (6.8 x 4.6 x 1.9 in)
Weight	0.4 kg (0.9 lb)
Operating Temperature Range	-40 to 85°C (-40 to 185°F)
Humidity Range	5% to 95% non-condensing
Vibration	2 g, 5 to 500 Hz
Shock Resistance	30 g, 11 ms

Why Choose the Triconex 2652-5 7400058-350 Terminal Board?

The Triconex 2652-5 7400058-350 stands out for its flexibility and reliability. It supports multiple signal types and allows seamless integration into Triconex Safety Instrumented Systems. With 32 isolated input channels, it helps to connect numerous field devices, ensuring compatibility with a wide range of industrial equipment.

Moreover, the board’s point isolation feature minimizes the risk of electrical interference. The hot-swappable modules enable easy maintenance without shutting down the system, saving time and costs. Additionally, diagnostic capabilities alert you to potential issues, improving system uptime.

In industrial environments where safety is paramount, the Triconex 2652-5 7400058-350 ensures secure, efficient, and continuous operation.

Conclusion

In summary, the Triconex 2652-5 7400058-350 Terminal Board is essential for connecting field devices to your Triconex SIS. It supports a variety of signal types, offers exceptional point isolation, and delivers reliable communication. The hot-swappable modules and diagnostic features make maintenance easier, reducing operational disruptions. Overall, this board is ideal for safety-critical industrial applications, ensuring reliability and performance in every aspect.
