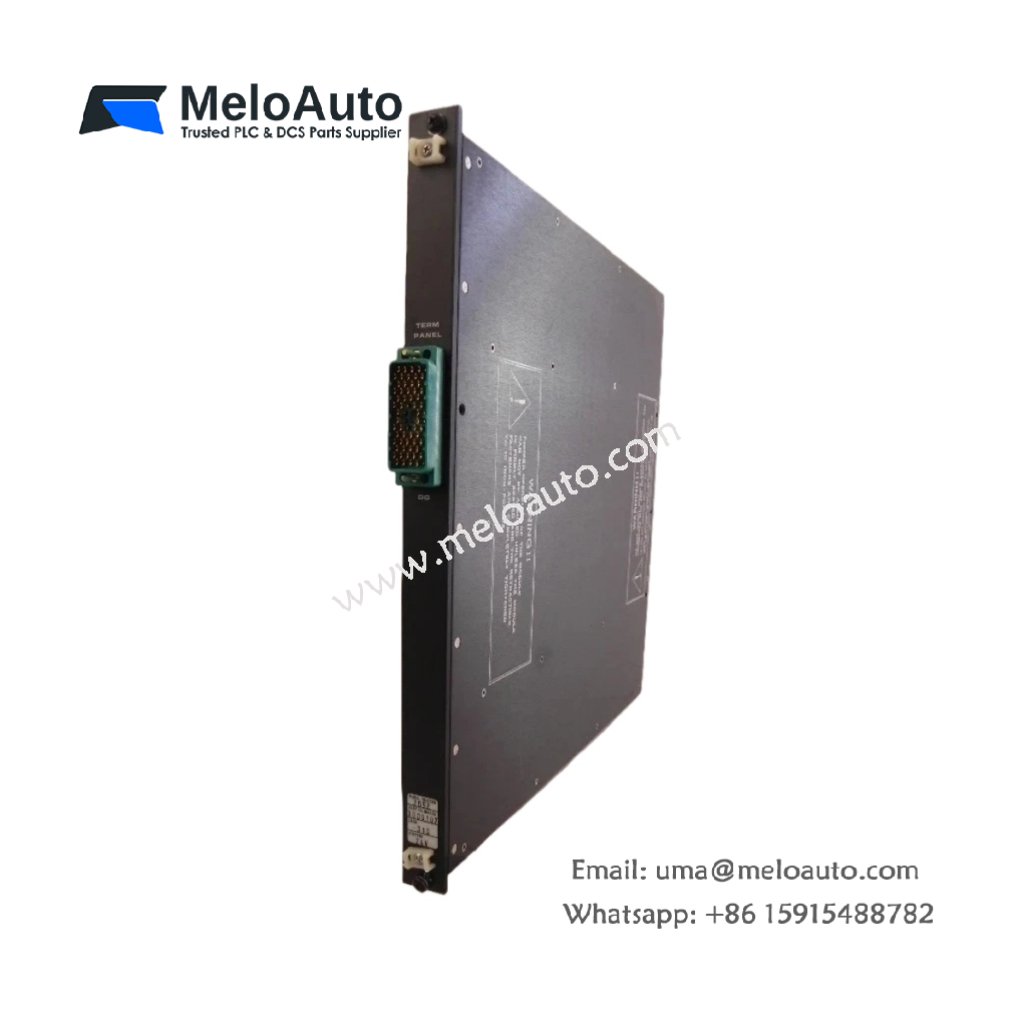

Triconex 2652-310 Analog Input Module Overview

The Triconex 2652-310 is a high-performance analog input (AI) module specifically designed for safety-critical applications. It efficiently converts analog signals from sensors into digital signals for processing by the Triconex process control system. Built for accuracy and reliability, this module ensures consistent performance even in challenging environments.

Key Features

• High Sampling Rate: The Triconex 2652-310 can sample analog signals at a remarkable rate of 100 kHz, offering fast data acquisition for real-time control.
• Fault Tolerance: This module is engineered for fault tolerance, ensuring continued operation even if one or more components fail.
• Redundancy Capability: The Triconex 2652-310 supports redundant components, enhancing fault tolerance and ensuring operational reliability.
• Deterministic Operation: With its deterministic design, the Triconex 2652-310 consistently executes instructions in the same order, regardless of the processor load.

Precise Technical Specifications

• Input Type: Analog signals for processing in safety-critical systems.
• Input Voltage Range: Accepts an input range from -10V to +10V, making it highly adaptable to various sensor outputs.
• Accuracy: Provides an exceptional 0.1% accuracy, ensuring precise signal conversion for critical control operations.
• Resolution: Equipped with 16-bit resolution, the module allows for fine-grained signal measurements and detailed data processing.
• Sampling Rate: The 100 kHz sample rate ensures fast and efficient processing of analog inputs, supporting dynamic control systems.
• Power Consumption: Consumes a modest 25 W, balancing performance with energy efficiency.
• Dimensions: Compact design with dimensions of 8 inches (20.3 cm) x 3.1 inches (7.9 cm) x 1.6 inches (4.1 cm), suitable for various control panel configurations.
• Weight: Weighs 2.2 pounds (1.0 kg), ensuring a lightweight yet durable design for easy integration into system racks.

Durability and Reliability

The Triconex 2652-310 is built to withstand the rigorous demands of industrial and safety-critical environments. Its fault tolerance and redundancy capabilities make it a reliable choice for continuous operation, even in the event of system component failures. The high sampling rate ensures rapid processing, while the precise accuracy guarantees that the module performs accurately under varying conditions.

Conclusion

The Triconex 2652-310 Analog Input Module is a robust and reliable component for industrial automation systems, specifically designed to meet the needs of safety-critical applications. With its fault tolerance, redundancy, high resolution, and rapid sampling rate, it ensures precise and uninterrupted operation in the most demanding environments.

Technical Specifications

Brand, Model, Category

• Brand: Triconex
• Model: 2652-310
• Category: Analog Input Module
