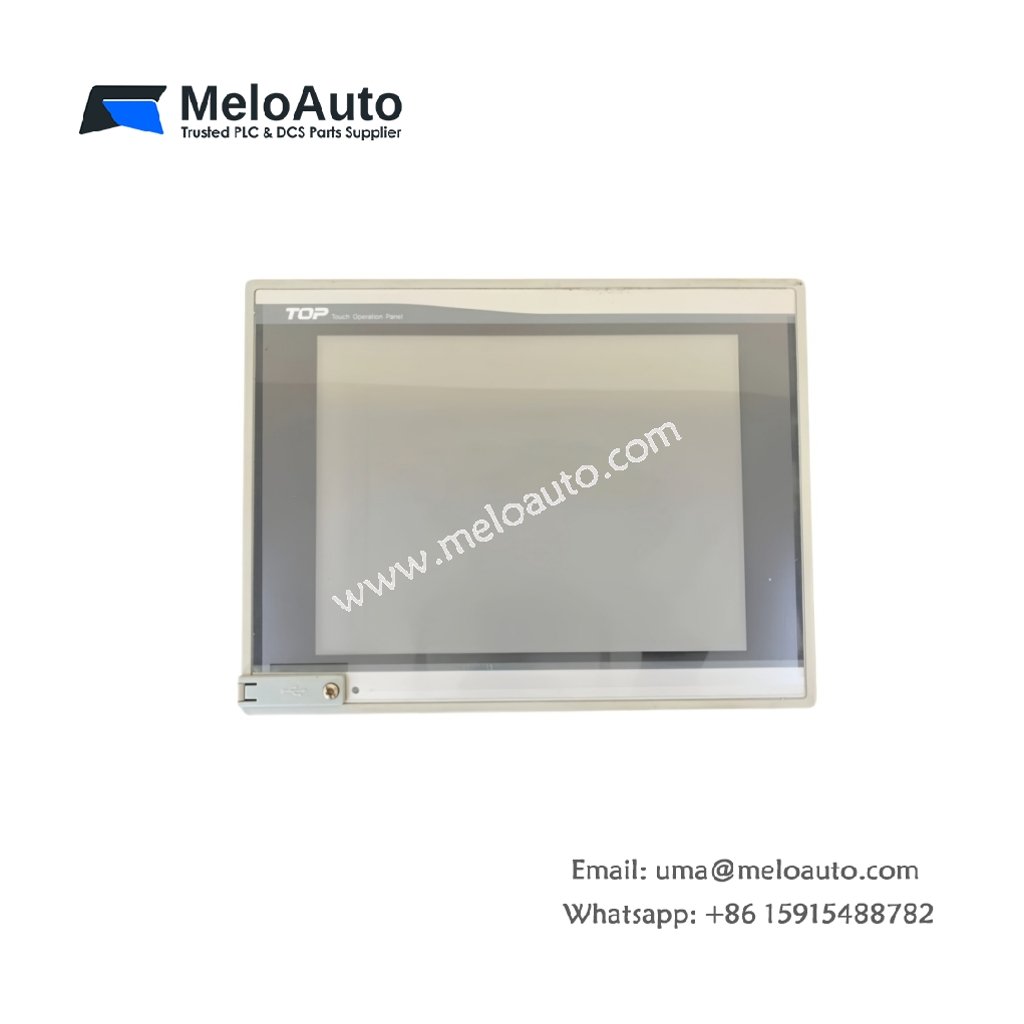

The XTOP12TS-SD touch operation panel from TOP gives operators a dependable interface for industrial machinery. This 12.1-inch unit fits neatly into factory automation and process control cabinets. Moreover, its rugged housing withstands vibration, dust, and wide temperature swings.
Key Technical Specifications
The XTOP12TS-SD pairs a sharp display with versatile communication ports. Meanwhile, the resistive touch layer responds well to gloved hands and stylus input. Consequently, technicians keep production lines running without interrupting their workflow.
| Parameter | Value |
|---|---|
| Device Type | Touch Operation Panel (HMI) |
| Manufacturer | TOP |
| Part Number | XTOP12TS-SD |
| Display Size | 12.1 inches |
| Resolution | 1024 x 768 pixels |
| Display Type | TFT LCD |
| Touch Technology | Resistive touchscreen |
| Brightness | 400 cd/m² |
| Interface | RS-232, RS-485, USB, Ethernet |
| Operating Voltage | 24 V DC |
| Power Consumption | Approx. 15 W |
| Dimensions | 320 x 240 x 55 mm |
| Weight | Approx. 2.1 kg |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Protection Rating | IP65 front panel |
| Mounting | Panel mount |
Performance and Integration Details
The XTOP12TS-SD refreshes screens quickly, so operators track live process data with ease. Additionally, the panel supports common industrial protocols for straightforward PLC integration. Therefore, commissioning teams finish wiring and configuration tasks faster.
Application Areas
Packaging lines, water treatment plants, and building automation systems rely on this panel daily. Furthermore, textile machinery and food processing equipment benefit from its sealed front bezel. As a result, the XTOP12TS-SD continues working through washdowns and dusty shifts.
Why Choose This Operation Panel
The XTOP12TS-SD delivers bright visuals, broad protocol support, and a compact footprint. Moreover, its IP65-rated front panel resists water and dust ingress. Consequently, plant managers gain a long-lasting interface that lowers replacement costs.
