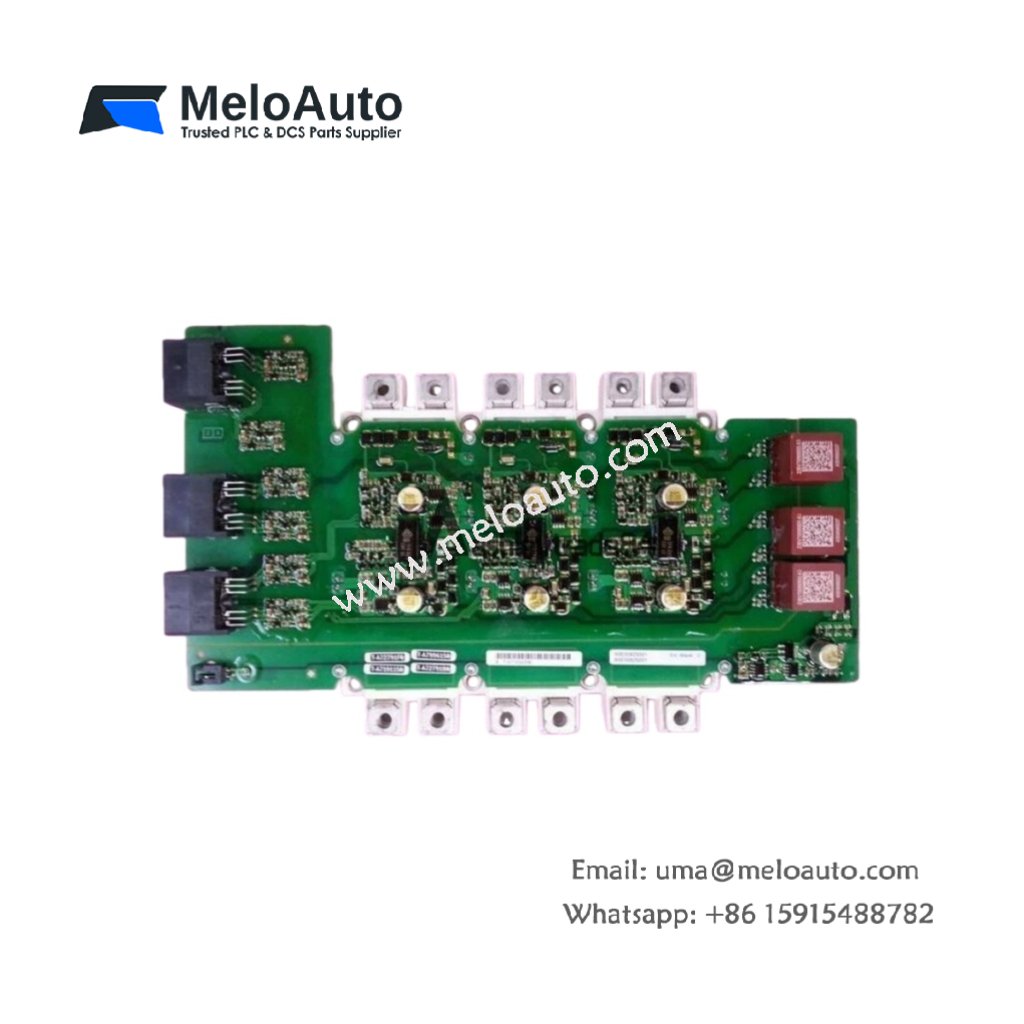

The Siemens A5E00825001 is a high-performance IGBT module designed for demanding industrial applications. With a current rating of 210A and a voltage rating of 400V, this module ensures reliable performance in power electronics systems, providing both high efficiency and durability.
Key Features and Specifications
- Model: A5E00825001
- Category: IGBT Module
- Manufacturer: Siemens
Electrical and Performance Specifications
| Parameter | Details |
|---|---|
| Current Rating | 210 A |
| Voltage Rating | 400 V |
| Type | IGBT (Insulated Gate Transistor) |
| Switching Frequency | Up to 20 kHz |
| Mounting Type | Baseplate Mounting |
| Power Loss (Typical) | 2.5 W |
| Operating Temperature Range | -40°C to +150°C |
Dimensions and Weight
| Parameter | Details |
|---|---|
| Module Dimensions | 110 mm x 90 mm x 40 mm |
| Weight | 0.35 kg |
Design and Durability
The Siemens A5E00825001 IGBT module features an efficient design that handles high power levels while maintaining thermal stability. The 210A current rating ensures that it can manage large current flows without overheating. Moreover, the 400V voltage rating makes it suitable for a wide range of industrial applications where high-voltage switching is required.
This module’s compact dimensions (110 mm x 90 mm x 40 mm) and lightweight design (0.35 kg) make it easy to integrate into various systems without taking up excessive space. Its baseplate mounting simplifies installation and enhances heat dissipation, ensuring long-term reliability.
Enhanced Performance and Efficiency
With a switching frequency of up to 20 kHz, the A5E00825001 ensures quick and efficient switching, allowing for precise control of power in industrial systems. This high-speed operation improves system performance, reduces losses, and increases overall efficiency. The 2.5 W typical power loss ensures minimal heat generation, further improving the module’s efficiency and lifespan.
Applications
The Siemens A5E00825001 IGBT module is perfect for use in various industrial applications, such as:
- Motor Drives: Ideal for controlling electric motors in high-power systems.
- Power Inverters: Used in renewable energy systems, including solar and wind power.
- Welding Equipment: Suitable for high-current applications like industrial welding machines.
- HVAC Systems: Efficient power control in heating, ventilation, and air conditioning systems.
