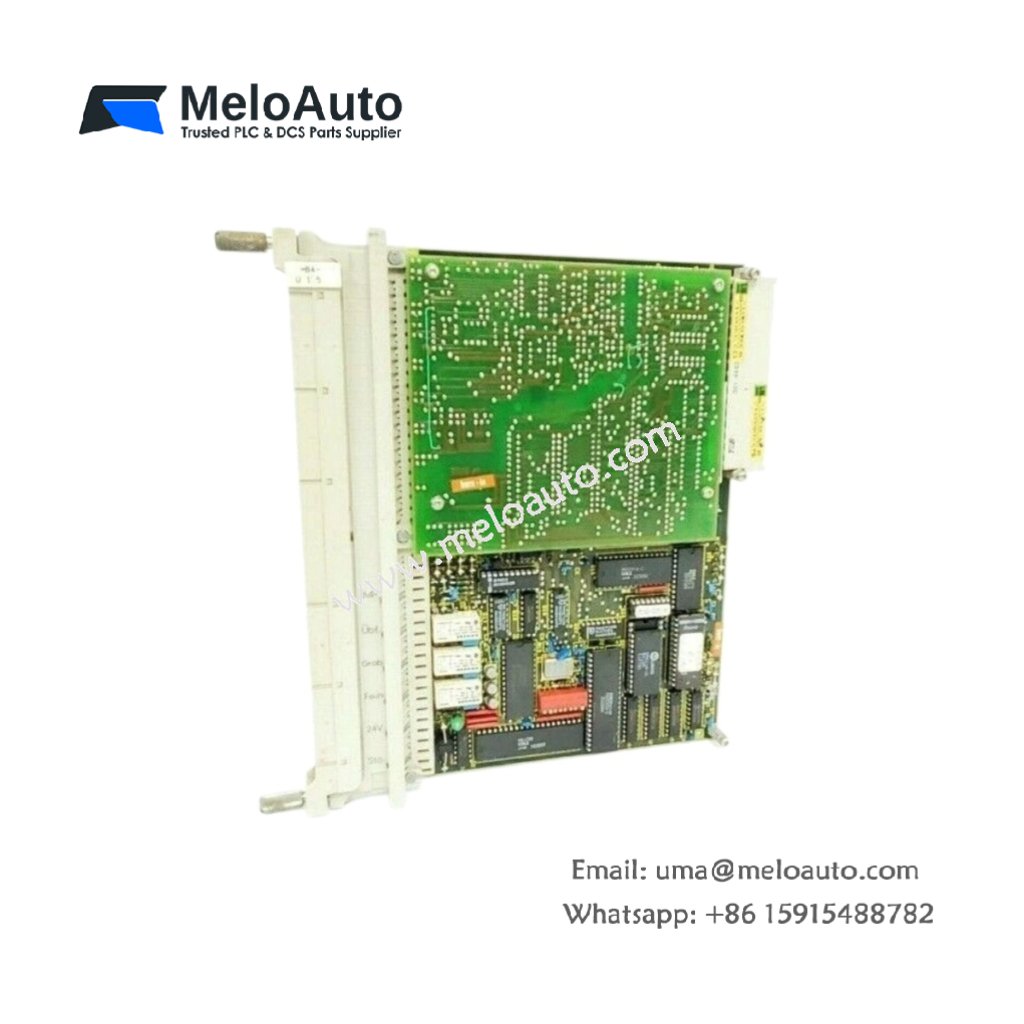

The 7MH3305-1AB functions as a processor intelligent module for Siemens weighing systems. This unit processes load cell signals for accurate weight measurement in industrial processes. It connects to SIMATIC PLCs through the Profibus DP network. Therefore, this module enables precise batching, filling, and dosing applications.
Technical Specifications
We engineered this intelligent processor module for high-accuracy weighing tasks. Its compact design mounts directly on a standard DIN rail. Moreover, the module includes integrated diagnostics for rapid troubleshooting.
| Parameter | Specification |
|---|---|
| Dimensions (W x H x D) | 4.5 x 3.9 x 2.8 inches (114 x 99 x 71 mm) |
| Weight | 0.32 kg (0.71 lbs) |
| Input Channels | 1 load cell input |
| Sensor Type | Strain gauge bridge (4-wire or 6-wire) |
| Excitation Voltage | 10V DC internal |
| Input Sensitivity | 0.5 μV per digit |
| Internal Resolution | 24-bit (16.7 million counts) |
| Rated Accuracy | ±0.01% of full scale |
| Update Rate | 100 measurements per second |
| Digital Filter | Adaptive averaging filter |
| Communication | Profibus DP (12 Mbps) |
| Diagnostic LEDs | 4 status indicators |
| Input Voltage | 24V DC nominal (18-32V DC) |
| Power Consumption | 5 W typical |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
Measurement Circuit Design
The 7MH3305-1AB uses a high-precision 24-bit analog-to-digital converter. A low-drift instrumentation amplifier conditions the millivolt signal from the load cell. The module provides stable 10V excitation voltage for up to four 350-ohm load cells. Consequently, you get accurate weight readings even with long cable runs.
Digital Signal Processing
This intelligent module includes adaptive digital filtering for noisy environments. The filter adjusts automatically to changing vibration conditions. An internal microprocessor performs linearization and calibration calculations. Therefore, the module outputs linear weight values without external computation.
Calibration and Configuration
The 7MH3305-1AB stores all calibration data in non-volatile memory. Perform a span calibration using actual test weights on the scale. The module also supports electronic calibration without physical weights. Hence, you can calibrate the system without moving heavy test masses.
Profibus Communication Interface
This processor module communicates with SIMATIC PLCs via Profibus DP. It transmits weight values, status, and diagnostic data to the controller. The module also receives setpoints and control commands from the PLC. Consequently, the weighing system integrates seamlessly into your existing automation network.
Diagnostic Capabilities
The 7MH3305-1AB provides comprehensive self-diagnostic functions for troubleshooting. The module detects load cell breaks, short circuits, and cable faults. Four LED indicators show power, communication, and error status at a glance. Therefore, maintenance personnel can identify problems without specialized test equipment.
Energy Storage and Data Retention
This intelligent module uses non-volatile FRAM memory for calibration storage. The memory retains all parameters without any battery backup. The module contains no lithium battery for configuration retention. Consequently, calibration data remains safe even during extended power outages.
Installation and Commissioning
Mount the 7MH3305-1AB onto a standard 35 mm DIN rail securely. Connect the load cell wires to the removable screw terminal block. Apply 24V DC power to the designated terminals on the module. Configure the Profibus address using the onboard DIP switches. Perform a calibration routine before placing the module into active service. Always use shielded cable for load cell connections to prevent electrical noise.
