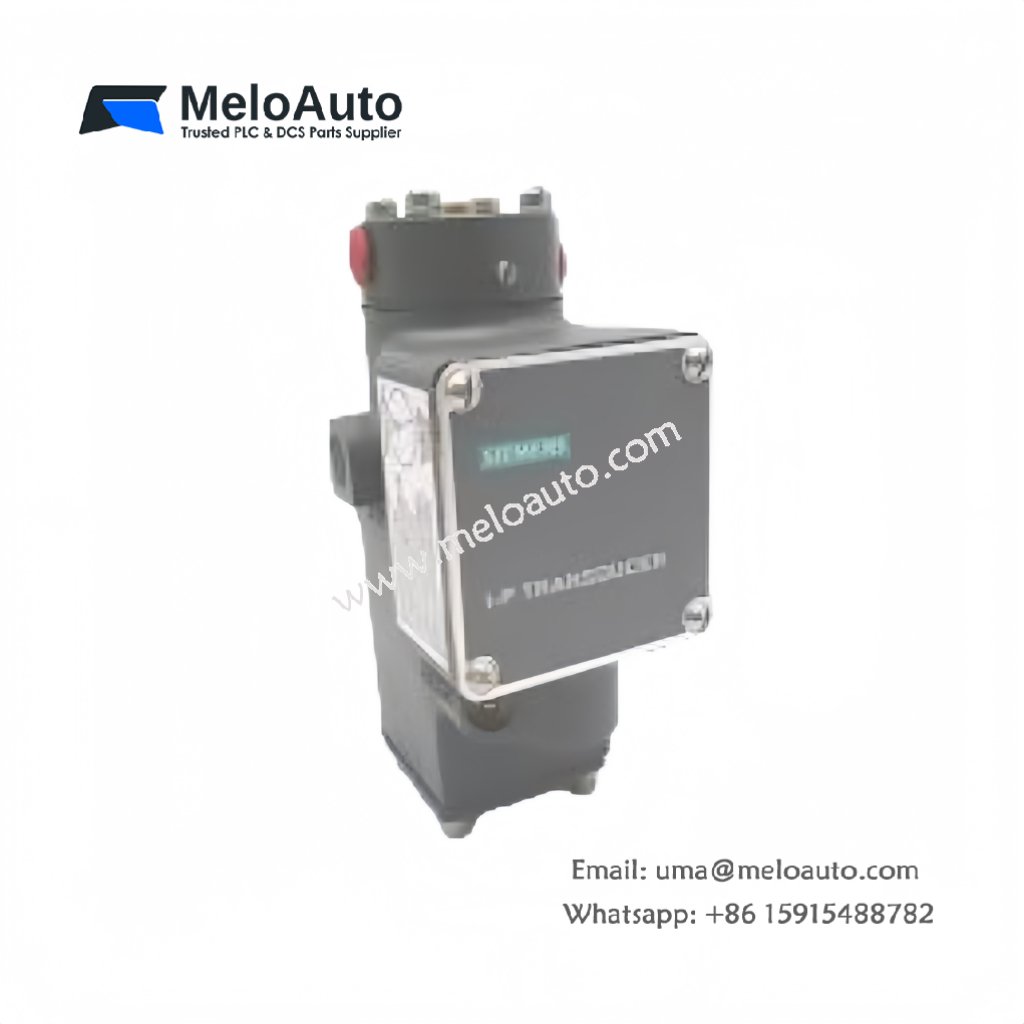

Siemens 771-3STF2 – I/P Transducer

The Siemens 771-3STF2 is a high-performance I/P transducer designed to convert electrical signals into pneumatic outputs. This transducer plays a key role in industrial automation systems, ensuring precise control over pressure regulation and actuator movement.

Key Features:

Model: 771-3STF2
Category: I/P Transducer
Manufacturer: Siemens
Signal Input: 1-5 mA
Output Pressure Range: 3-15 PSIG
Purpose: Converts electrical signals to pneumatic outputs, critical for industrial control systems.

Technical Specifications

Parameter	Details
Signal Input	1-5 mA
Output Pressure	3-15 PSIG
Supply Voltage	24 V DC
Accuracy	±1% of Full Scale
Response Time	< 150 ms
Mounting	Surface mount
Weight	0.35 kg
Operating Temperature Range	-10°C to +60°C
Dimensions (W x H x D)	100 mm x 70 mm x 50 mm
Material	Die-cast aluminum housing
Housing Protection	IP65 (dust-tight and water-resistant)

Functionality and Application

The Siemens 771-3STF2 I/P transducer ensures precise control over pneumatic systems by accurately converting electrical signals (1-5 mA) into a pneumatic output with a pressure range of 3-15 PSIG. This feature makes it ideal for applications requiring tight pressure control, such as controlling actuators in industrial valves or other pneumatic instruments.

With a rapid response time of less than 150 ms, the 771-3STF2 can adjust quickly to variations in the electrical input, ensuring stable and efficient system performance. Additionally, the durable die-cast aluminum housing enhances its robustness, making it reliable for operation in demanding industrial environments.

The IP65-rated protection adds another layer of reliability, offering resistance to both dust and water. This protection ensures the transducer remains operational even in challenging environmental conditions.

Conclusion

The Siemens 771-3STF2 I/P transducer is a reliable and efficient solution for applications requiring precise signal conversion and pressure regulation. Its wide input signal range, accurate output pressure, and sturdy design make it the ideal choice for industrial automation systems that rely on precise pneumatic control.
