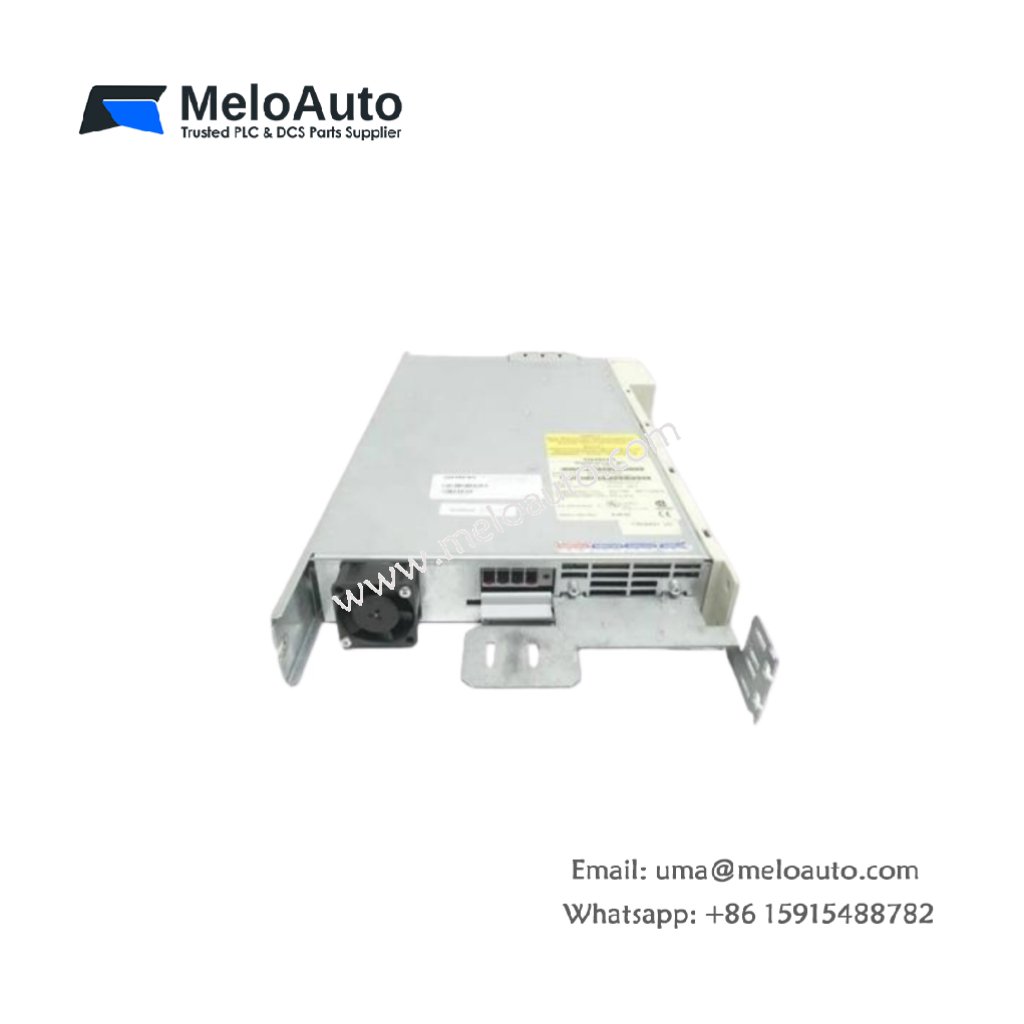

Siemens 6SE7012-0TP50: Compact AC/DC Drive for Precision Motor Control

Meet the Siemens 6SE7012-0TP50, a versatile AC/DC drive from the SIMOVERT MASTERDRIVES MC series. This unit efficiently converts a high-voltage DC input into a variable AC output for precise motor control. Moreover, it delivers a robust 0.75 kW of power with a maximum output current of 2 A. Consequently, it is an ideal choice for applications requiring adjustable speed and torque for three-phase motors.

Detailed Technical Specifications

The 6SE7012-0TP50 drive provides flexible power conversion within a compact chassis. Below are its precise electrical and performance parameters for system integration.

Core Functionality and Application

This drive controls motor speed and torque by varying the output frequency and voltage. Therefore, it enables significant energy savings in applications like pumps, fans, and conveyors. Additionally, its wide 0-400 Hz output frequency range supports both standard and high-speed motor operations.

The unit requires a stable 510-650 VDC supply, typically from a common DC bus system. Furthermore, for complete motor circuit protection, system designers must integrate appropriate safety devices. For instance, a RMS-TSG-TZ-C Static Trip unit can provide essential short-circuit and overload protection upstream.

Engineered for Reliable Performance and Integration

Choosing the Siemens 6SE7012-0TP50 ensures compatibility with the proven MASTERDRIVES ecosystem. Its compact power rating makes it suitable for distributed cabinet layouts or single-axis control. Ultimately, this drive provides a reliable and efficient solution for enhancing the performance of your three-phase motor applications.
