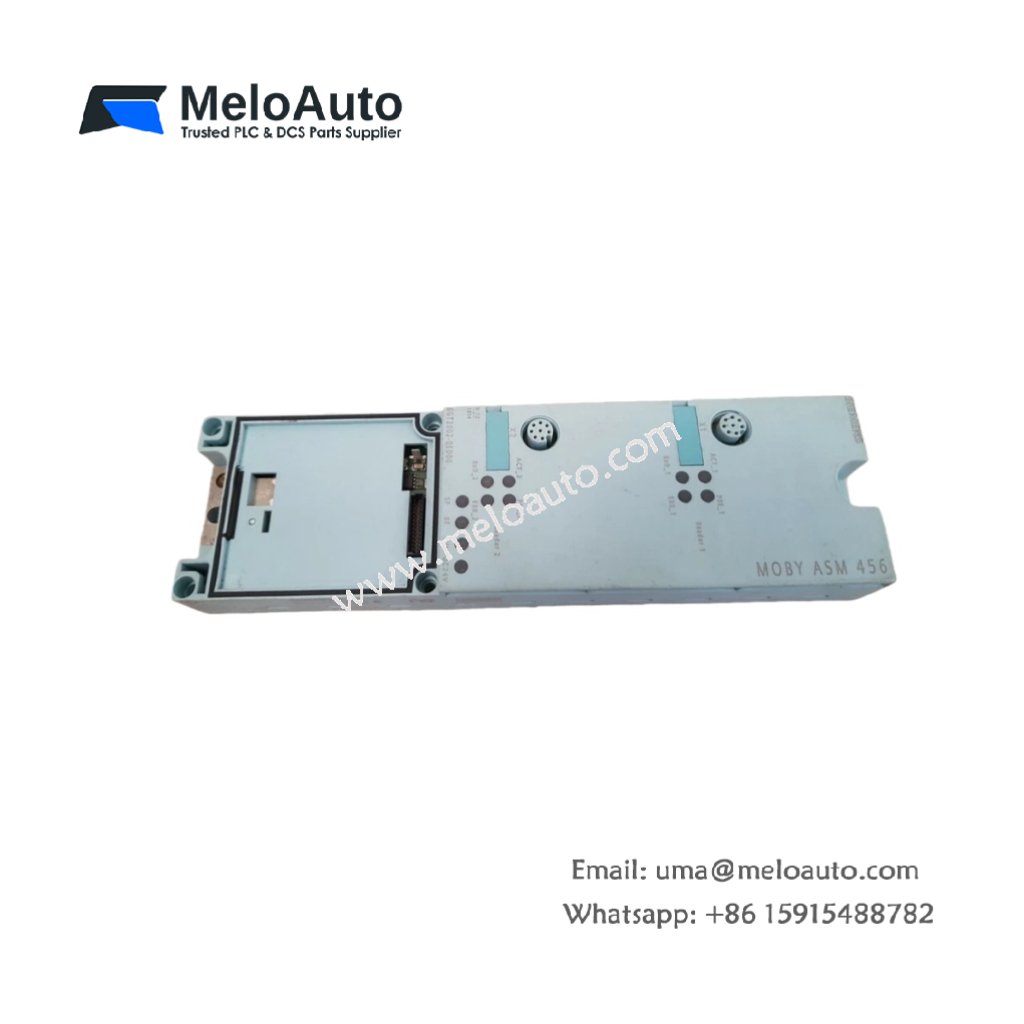

Siemens 6GT2002-0ED00 PROFIBUS DP-V1 Module

The Siemens 6GT2002-0ED00 PROFIBUS DP-V1 module enables efficient communication within a PROFIBUS network. It supports 2 read-write devices, making it suitable for various industrial systems, including RF200/300/600, MV400/500, and MOBY D/E/U. This module guarantees fast and reliable data transmission for point-to-point connections.

Key Features

Manufacturer: Siemens
Model: 6GT2002-0ED00
Product Type: PROFIBUS DP-V1 Module
Transfer Rate (with PROFIBUS): 9.6 kbit/s to 12 Mbit/s
Point-to-Point Transfer Rate: 115.2 kbit/s
Number of Readers Connectable: 2
Interfaces: RS422, M12 8-pin
Material: Thermoplastic (Valox 467, fiberglass reinforced)
Protection Class: IP67
Mechanical Data: Lightening torque for securing the equipment – 3 N-m

Technical Specifications

Parameter	Details
Model	6GT2002-0ED00
Manufacturer	Siemens
Product Type	PROFIBUS DP-V1 Module
Transfer Rate (with PROFIBUS)	9.6 kbit/s to 12 Mbit/s
Point-to-Point Transfer Rate	115.2 kbit/s
Number of Readers Connectable	2
Interfaces	RS422, M12 8-pin
Electrical Connection	PROFIBUS interface for supply voltage
Material	Thermoplastic (Valox 467, fiberglass reinforced)
Protection Class	IP67
Lightening Torque	3 N-m
Supply Voltage (DC)	24V
Consumed Current (Typical)	0.08A
Maximum Current Consumption	0.85A
Operating Temperature	0…55°C
Storage Temperature	-40…+70°C
Transport Temperature	-40…+70°C

Description

The Siemens 6GT2002-0ED00 PROFIBUS DP-V1 module ensures seamless integration into PROFIBUS networks. It allows for the connection of 2 read-write devices, which is crucial for modern automation systems. Furthermore, the module operates at a transfer rate ranging from 9.6 kbit/s to 12 Mbit/s over PROFIBUS, while offering 115.2 kbit/s for point-to-point connections.

In addition, this module features RS422 and M12 8-pin interfaces, which support various devices and improve the overall flexibility of the system. Its PROFIBUS interface ensures smooth data transmission while maintaining a stable supply voltage. Moreover, it is built with thermoplastic (Valox 467, fiberglass reinforced), which provides enhanced durability, making it suitable for demanding industrial environments.

The module also has an IP67 protection rating, safeguarding it against dust and water ingress, which is crucial for harsh environments. Its lightening torque of 3 N-m ensures secure attachment during installation, ensuring that it stays firmly in place even under vibration or environmental stress.

Why Choose the Siemens 6GT2002-0ED00 Module?

Versatile Connectivity: Connect up to 2 read-write devices for flexible system integration.
High-Speed Data Transfer: Operates with PROFIBUS at 9.6 kbit/s to 12 Mbit/s, ensuring reliable communication.
Durable and Robust: IP67 protection provides high resistance to dust and water, making it ideal for challenging conditions.
Easy Installation: The RS422 and M12 8-pin interfaces simplify system setup.

Applications

The Siemens 6GT2002-0ED00 module excels in:

Automation Systems: Ideal for integration into PROFIBUS DP-V1 networks.
Industrial Control: Compatible with RF200/300/600, MV400/500, and MOBY D/E/U systems.
Data Transmission: Ensures reliable data transfer for high-performance industrial applications.
