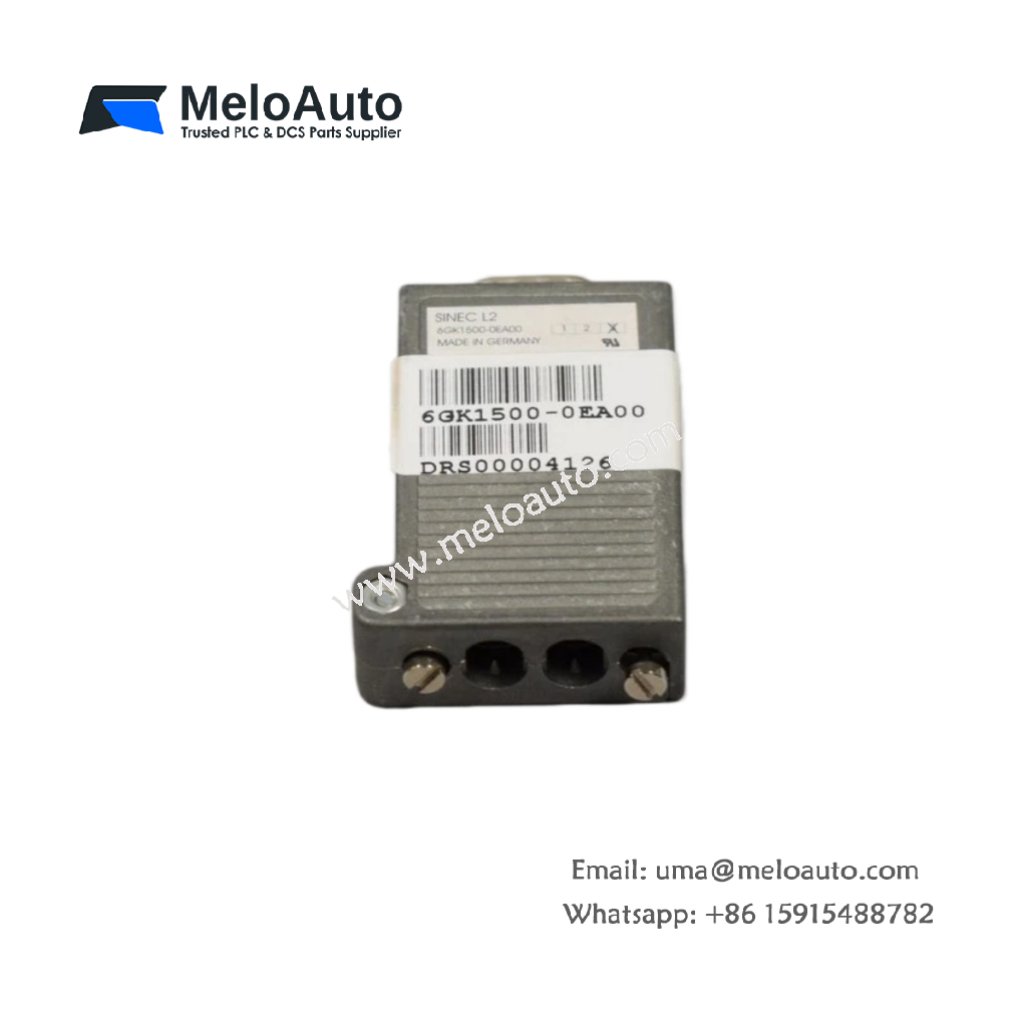

Siemens 6GK1500-0EA00 PROFIBUS LAN Connector

Technical Overview

The 6GK1500-0EA00 PROFIBUS LAN connector provides a reliable physical link between SIMATIC S5 controllers and PROFIBUS networks. This 9-pin D-sub connector supports data transmission rates up to 12 Mbps for high-speed industrial communication. It features an integrated terminating resistor that users can activate via a simple slide switch. This connector delivers excellent signal integrity even in electrically noisy factory environments.

Key Technical Specifications

Signal Integrity and Termination Features

The integrated terminating resistor prevents signal reflections at the end of the PROFIBUS cable. A slide switch on the connector housing allows users to enable or disable this termination quickly. Therefore, the 6GK1500-0EA00 ensures correct bus termination without requiring external components. This feature significantly improves communication reliability in long cable runs or high-speed networks.

Robust Mechanical Design

The connector features a durable housing that withstands harsh industrial conditions. Two M12 fastening screws secure the connection firmly to the device port. Furthermore, the screw-type terminal block provides a gas-tight connection for the PROFIBUS cable cores. These design elements minimize the risk of accidental disconnection due to vibration.

Network Integration

Users connect this connector directly to the PROFIBUS interface on SIMATIC S5 controllers. The standard D-sub pinout ensures compatibility with all PROFIBUS-compliant devices. Engineers can daisy-chain multiple connectors to build flexible bus topologies across machines or production lines.
