Siemens 6FM1705-3AA00 Position Decoder Module

Technical Specifications and Functional Overview

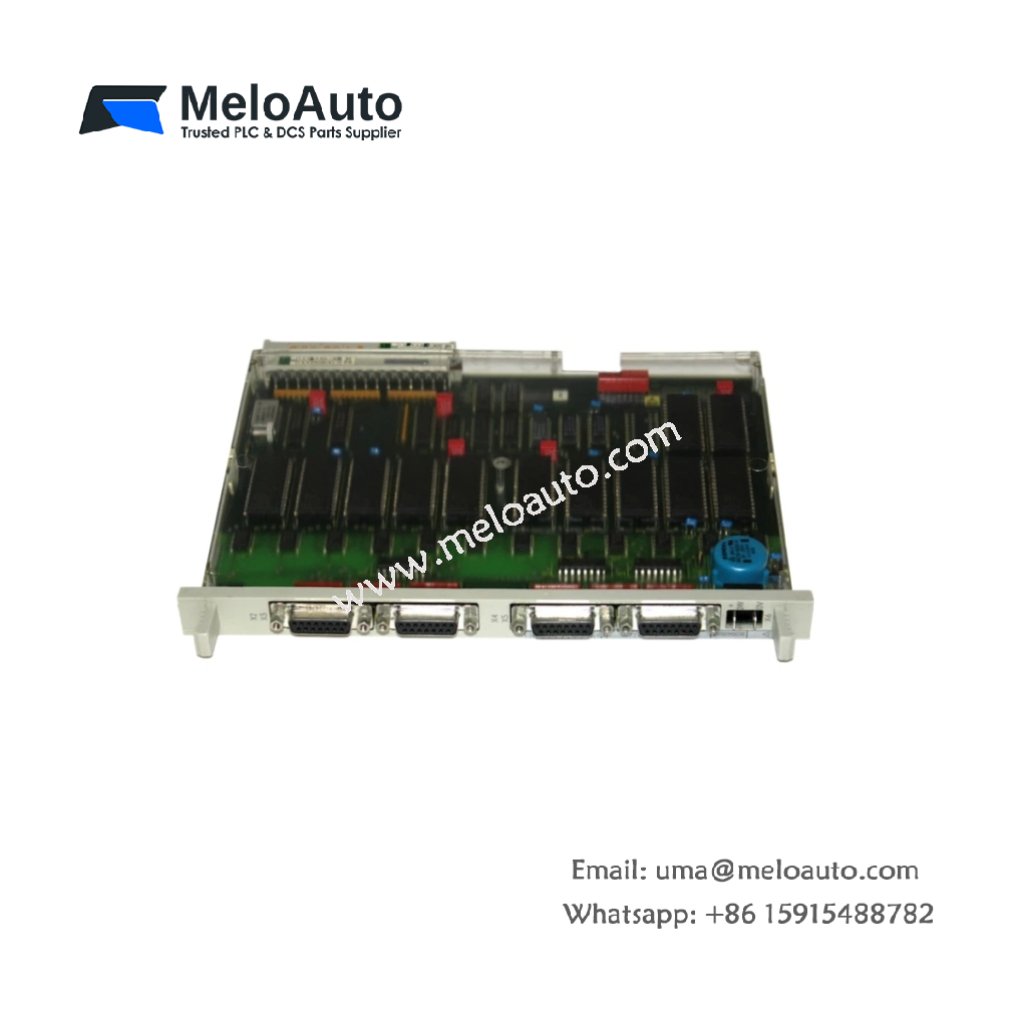

The Siemens 6FM1705-3AA00, also known as the WF705 position decoder module, serves as a high-performance function module within the SIMATIC S5-155U PLC system . This module provides 4 independent high-speed counting channels for precise position detection and motion control applications . It accepts TTL/HTL (24V) signals from incremental encoders and supports a maximum counting frequency of 200 kHz . The module features an onboard microprocessor that handles high-speed pulse signals without burdening the CPU scan time . Its compact dimensions suit standard S5-155U function module slots, and it weighs approximately 0.3 kg .

Functional Capabilities

The 6FM1705-3AA00 module actively performs high-speed counting and comparison operations independently from the CPU . Its four channels support various operating modes including continuous counting, single-shot counting, frequency measurement, period measurement, gated counting, and comparison with preset values . Moreover, the module can trigger hardware interrupts to the CPU when it reaches preset values, ensuring millisecond-level response times for critical control actions. Users can configure each channel independently to handle different tasks simultaneously, such as measuring speed on one channel while tracking position on another . The module also features built-in short-circuit and reverse polarity protection for enhanced reliability . Consequently, this module eliminates the risk of lost pulses and position inaccuracies in high-speed applications.
