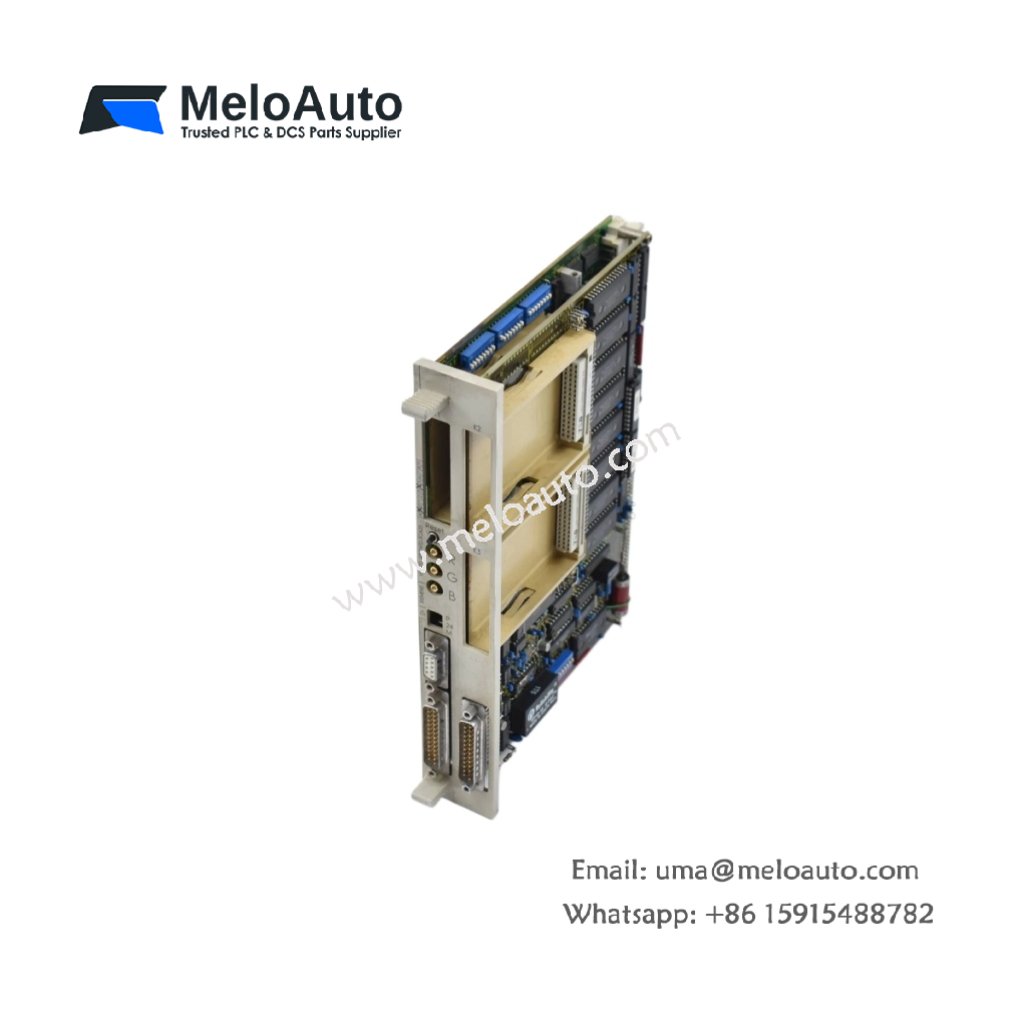

Siemens 6FM1470-3CA25 Video Display Module

The Siemens 6FM1470-3CA25 PLC video display module provides graphical monitoring for SIMATIC S5 systems. This module generates high-resolution graphics and text on an external monitor. It mounts directly into any S5-135U or S5-155U rack slot. You can use this module as a direct replacement for older video units.

Detailed Technical Specifications

The Siemens 6FM1470-3CA25 PLC video display module measures 250 mm in length. Its width reaches 160 mm across the main body. The total height goes up to 48 mm with all components installed. This unit weighs approximately 0.68 kilograms for secure mounting.

Key hardware parameters include:

Complete Model: Siemens 6FM1470-3CA25
Component count: 132 individual electronic parts
Connector ports: Two 20-pin screw terminal blocks
Video output: VGA (15-pin SUB-D female)
Energy storage: Eight aluminum capacitors (100 µF each)
Mounting system: Two rear locking levers
PCB layers: Six-layer high-speed construction
Display resolution: 640 x 480 pixels (VGA)
Color depth: 16 colors from a palette of 4096
Display memory: 256 KB dedicated video RAM
Screen capacity: 100 user-defined screens
Graphic elements: Lines, circles, rectangles, and text
Refresh rate: 60 Hz non-interlaced

The Siemens 6FM1470-3CA25 PLC video display module stores moderate residual charge after power-off. Therefore, technicians must wait thirty seconds before handling the module. The VGA output connects to any standard PC monitor or touchscreen. Moreover, the module supports both alphanumeric and graphic display modes.

Technical Parameter	Specification
Full Model Number	Siemens 6FM1470-3CA25
Dimensions (LxWxH)	250 mm x 160 mm x 48 mm
Weight	0.68 kg
Total Components	132 units
Connector Ports	2 x 20-pin screw terminal
Video Output	VGA (15-pin SUB-D female)
Energy Storage Caps	8 x 100 µF (aluminum)
Display Resolution	640 x 480 pixels
Color Depth	16 colors (4096 palette)
Video Memory	256 KB
Maximum Screens	100 user-defined
Refresh Rate	60 Hz
Operating Temperature	0°C to +50°C
Humidity Tolerance	5% to 85% non-condensing

Application and Installation

The Siemens 6FM1470-3CA25 PLC video display module slots into any S5 rack alongside the CPU. It requires an external VGA monitor for visual output. This module displays process diagrams, trend graphs, and machine status screens. Consequently, you create high-quality operator interfaces without an external HMI.

Programming and Graphics Creation

This module uses simple graphic commands from the STEP 5 program. The Siemens 6FM1470-3CA25 stores all screen layouts in onboard flash memory. You program graphic objects using standard function blocks from the library. Therefore, creating dynamic process displays requires minimal additional coding effort.

Always power down the rack before inserting or removing this module. Connect the VGA cable securely to the 15-pin port. The module features LED indicators for power, communication, and video sync status. Furthermore, its conformal coating protects against dust and light moisture.
