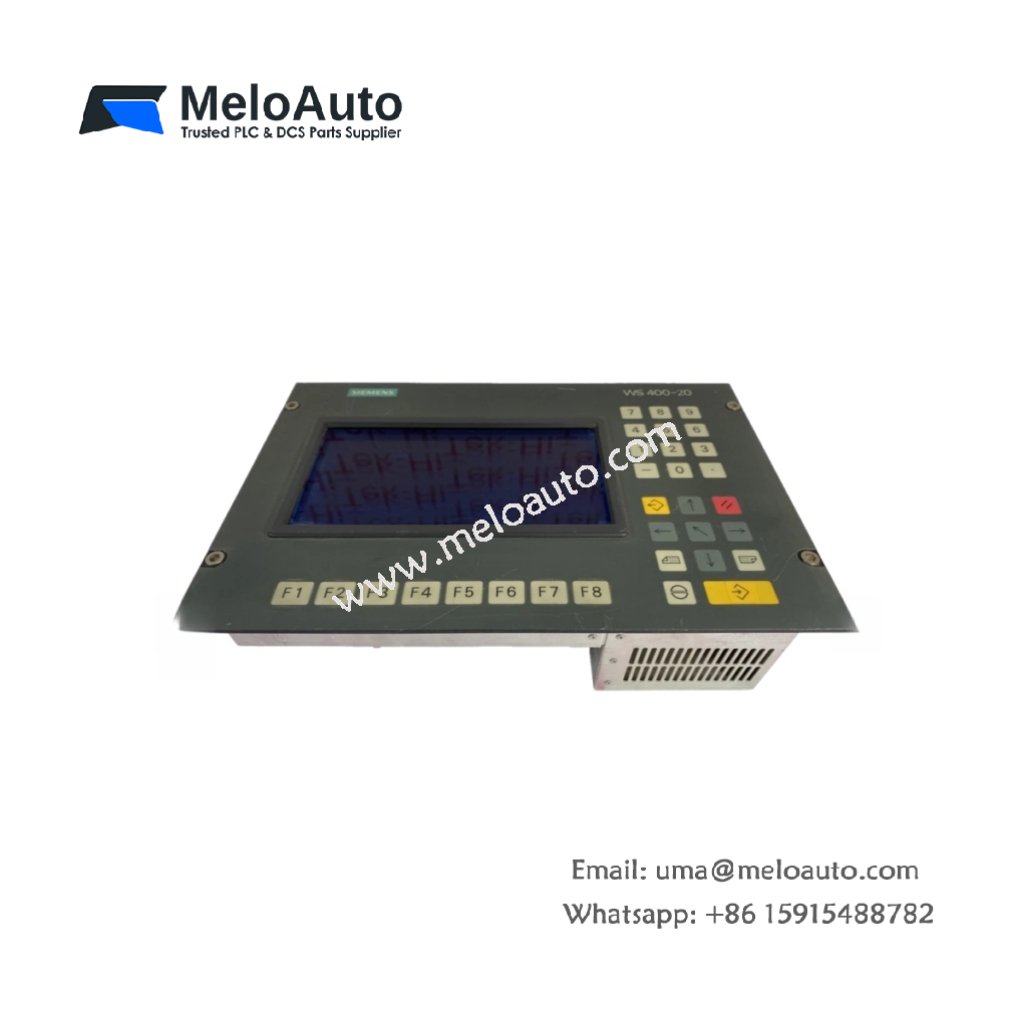

Siemens 6FM1420-1CA00 Operator Panel

The Siemens 6FM1420-1CA00 operator panel is designed to offer intuitive control and monitoring for industrial automation systems. With a user-friendly interface and high performance, this panel provides operators with real-time data access and easy control of connected equipment. Whether in manufacturing or process control, this panel enhances efficiency and reduces downtime, ensuring optimal system performance.

Key Features of the Siemens 6FM1420-1CA00 Operator Panel

Model: 6FM1420-1CA00
Category: Operator Panel
Manufacturer: Siemens
Application: Industrial Automation, Control Systems

Technical Specifications

Specification	Details
Module Type	Operator Panel
Display Type	LCD (Liquid Crystal Display)
Screen Size	6-inch
Resolution	320 x 240 pixels
Input Type	Touchscreen, Keypad
Communication Interface	RS232, RS485, Ethernet
Operating Voltage	24 V DC
Operating Temperature	-10°C to +55°C
Weight	0.8 kg
Dimensions (L x W x H)	180 mm x 150 mm x 40 mm
Protection Class	IP65

Enhanced User Interface for Efficient Control

The Siemens 6FM1420-1CA00 operator panel offers an intuitive LCD display for easy navigation. The 6-inch screen provides a clear view of system data with a 320 x 240 pixel resolution, ensuring high visibility even in challenging lighting conditions. The panel’s touchscreen and keypad input options offer flexibility for operators, making it easy to manage and control automation processes.

By integrating multiple communication interfaces such as RS232, RS485, and Ethernet, this operator panel ensures seamless connection to various devices within an industrial setup. It supports multiple protocols, enabling smooth data exchange between the panel and connected systems, which improves overall system efficiency.

Compact and Durable Design

With its compact dimensions of 180 mm x 150 mm x 40 mm and a lightweight of 0.8 kg, the 6FM1420-1CA00 is easy to install and integrate into existing control systems. Its space-saving design allows for flexible installation options, whether in a control panel or as a standalone unit. The panel is built to withstand tough environments, with an IP65 protection class, ensuring it is resistant to dust, dirt, and water.

Reliable Performance in Harsh Environments

Operating within a wide temperature range of -10°C to +55°C, the Siemens 6FM1420-1CA00 operator panel remains reliable even in extreme industrial conditions. Whether in a hot or cold factory environment, this panel continues to deliver consistent performance, reducing the risk of system downtime due to temperature fluctuations.

The 24 V DC operating voltage ensures compatibility with most industrial power systems, making it a versatile choice for various automation applications.

Conclusion

The Siemens 6FM1420-1CA00 operator panel is a powerful and reliable tool for controlling and monitoring industrial systems. Its user-friendly interface, combined with robust communication options, ensures smooth integration and operation within a wide range of applications. With its durable design and easy installation, this operator panel is an essential component for optimizing industrial automation systems.
