Robust Power Conversion

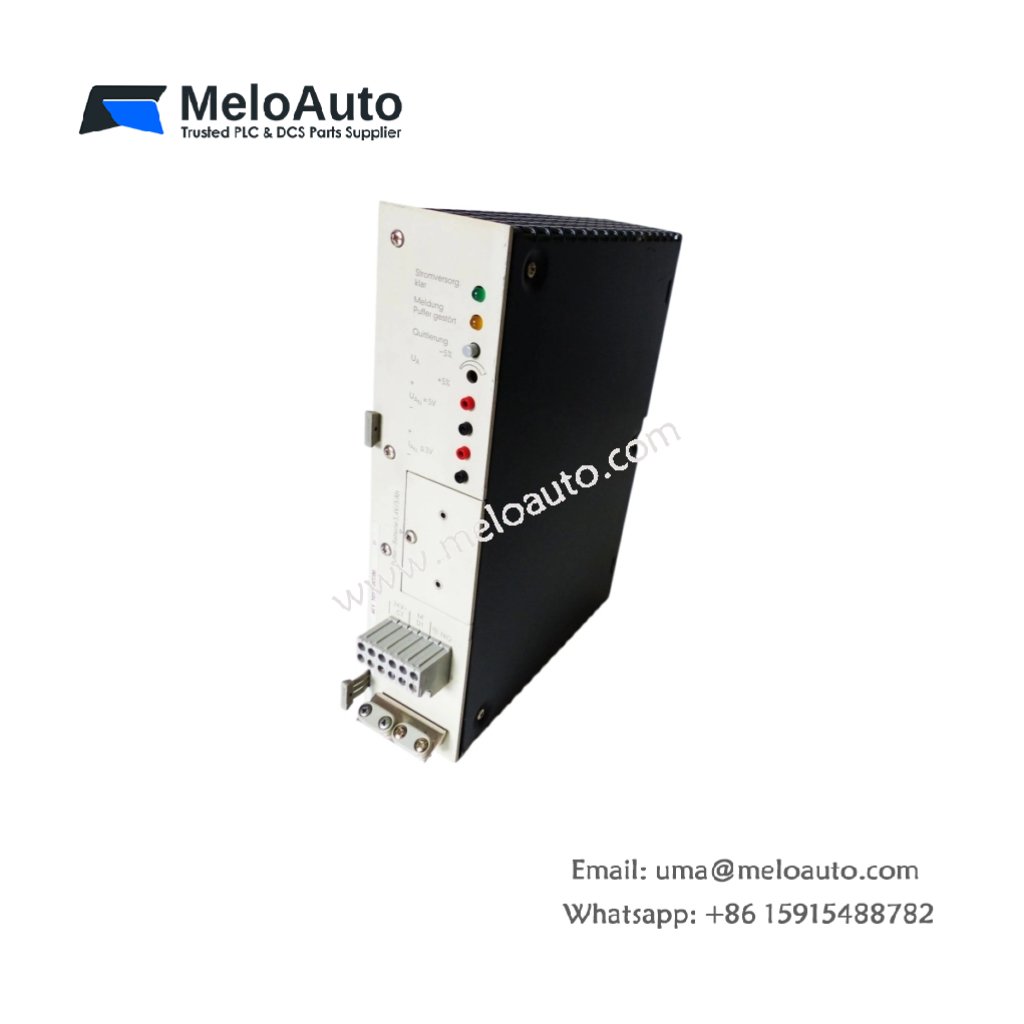

The 6EV3053-0CC operates as a compact power supply module for Siemens industrial control systems. This unit converts AC line voltage into a stable DC output for powering automation components. It delivers a regulated 24 VDC output with sufficient current for field devices. The module includes built-in short-circuit and overload protection mechanisms. Consequently, it ensures safe and continuous operation of connected equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Category | Power Supply Module |
| Part Number | 6EV3053-0CC |
| Input Voltage | 85–264 VAC (universal) |
| Input Frequency | 47–63 Hz |
| Output Voltage | 24 VDC (regulated) |
| Output Current | 2.5 A (continuous) |
| Output Power | 60 W |
| Efficiency | 85% (typical) |
| Hold-up Time | 15 ms (at 115 VAC) |
| Ripple & Noise | 50 mV (peak-to-peak) |
| Protection Features | Overvoltage, short-circuit, overload |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 13.0 cm x 7.0 cm x 6.0 cm |
| Weight | 0.5 kg |
| Mounting | DIN rail (35 mm) |
| Terminals | Screw-type (removable) |
| Status Indicators | Green LED (output OK), Red LED (fault) |
Protection and Monitoring Features
The 6EV3053-0CC incorporates comprehensive protection for reliable system operation. Overvoltage protection clamps the output to prevent damage to sensitive electronics. Short-circuit protection limits current during fault conditions and auto-recovers. Overload protection prevents excessive current draw that could overheat the unit. The module’s green LED confirms normal output, while a red LED indicates fault status. These features enhance system uptime and simplify diagnostics.
Application and Integration
This power supply suits a broad range of industrial applications. Common uses include powering PLCs, sensors, relays, and small actuators. The DIN rail mounting simplifies installation in standard control cabinets. The 6EV3053-0CC supports both horizontal and vertical mounting orientations. Its compact dimensions conserve valuable panel space effectively. The module’s universal input range allows global deployment without manual voltage selection.
Efficiency and Thermal Management
The 6EV3053-0CC achieves 85% typical efficiency, minimizing wasted energy and heat. The module relies on natural convection cooling without requiring a fan. This passive design enhances reliability and reduces maintenance needs. Users can operate the unit continuously at full load within its temperature range.
