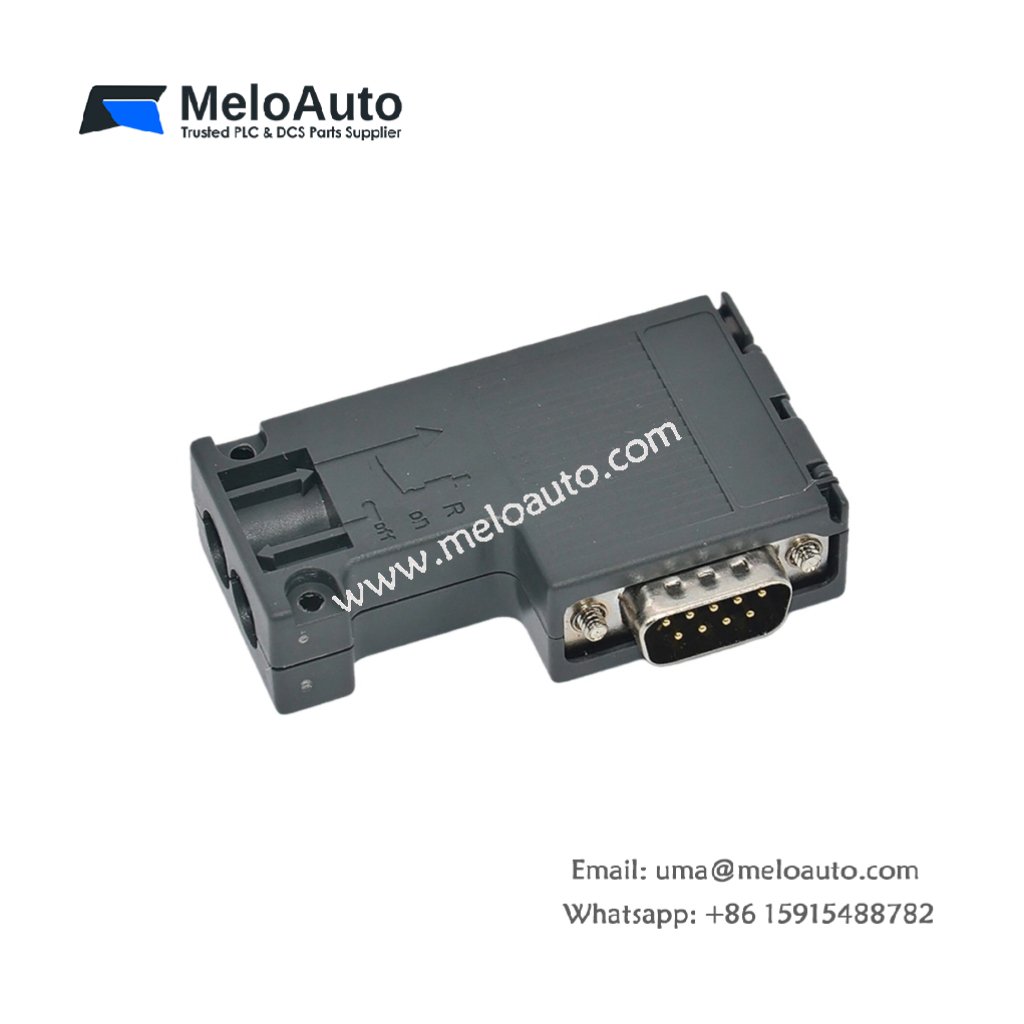

Siemens 6ES7972-0BA12-0XA0 PROFIBUS Bus Connector

Overview

The Siemens 6ES7972-0BA12-0XA0 is a highly reliable PROFIBUS bus connector designed for efficient communication between PROFIBUS stations and the bus cable. With its 90° cable outlet and integrated terminating resistor, this connector ensures stable and high-speed data transmission. It supports transfer rates from 9.6 kbit/s to 12 Mbit/s, making it suitable for demanding industrial environments.

This connector is part of the SIMATIC DP system, widely used in various automation networks. Additionally, the Siemens 6ES7972-0BA12-0XA0 simplifies the setup process by providing a screw-type connection that secures the connection in place. Whether for network components or terminal equipment, this connector offers both functionality and durability.

Key Features

Efficient Data Transmission: The Siemens guarantees fast communication with transfer rates from 9.6 kbit/s to 12 Mbit/s. It enables seamless data flow in your automation systems.
Compact Design: The 90° cable outlet ensures the connector fits into tight spaces, making it ideal for environments with limited installation room.
Enhanced Signal Stability: Featuring an integrated terminating resistor, this connector provides a stable signal with an isolating function, optimizing overall network performance.
Durable and Reliable: Made from plastic, the Siemens 6ES7972-0BA12-0XA0 features a screwed joint, ensuring mechanical stability and resistance to wear.
No PG Socket: Designed without a PG socket, this connector focuses on providing the core functionality necessary for the connection, without extra components.

Technical Specifications

Parameter	Specification
Model	Siemens 6ES7972-0BA12-0XA0
Manufacturer	Siemens
Product Line	SIMATIC DP
Part Number	6ES7972-0BA12-0XA0
Transfer Rate	9.6 kbit/s to 12 Mbit/s
Electrical Connections	9-pin Sub-D connector
Terminating Resistor	Integrated, connectable via slide switch
Connection Type	Screw connection
Dimensions (WxHxD)	15.8 mm x 64 mm x 35.6 mm
Weight	369 g
Cable Outlet Type	90° cable outlet
Enclosure Material	Plastic
Locking Mechanism	Screwed joint
Protection Class	IP20
Ambient Temperature (Operation)	-25°C to +60°C
Ambient Temperature (Storage)	-40°C to +70°C
Ambient Temperature (Transport)	-40°C to +70°C

Applications

The Siemens 6ES7972-0BA12-0XA0 is ideal for connecting PROFIBUS stations to PROFIBUS bus cables in automation systems. It is particularly suited for environments requiring fast, reliable data transmission. This connector works flawlessly with SIMATIC DP systems and is essential for network components and terminal equipment. The 90° cable outlet ensures it fits into confined spaces, making it an excellent choice for industrial setups.

Why Choose Siemens?

Siemens has long been a leader in the industrial automation field. The 6ES7972-0BA12-0XA0 connector exemplifies Siemens’ commitment to high-quality and efficient communication solutions. By offering fast data rates, ease of installation, and robust performance, it supports the seamless operation of your PROFIBUS network. Moreover, its compact design and durable construction make it a reliable solution for industrial automation professionals.
