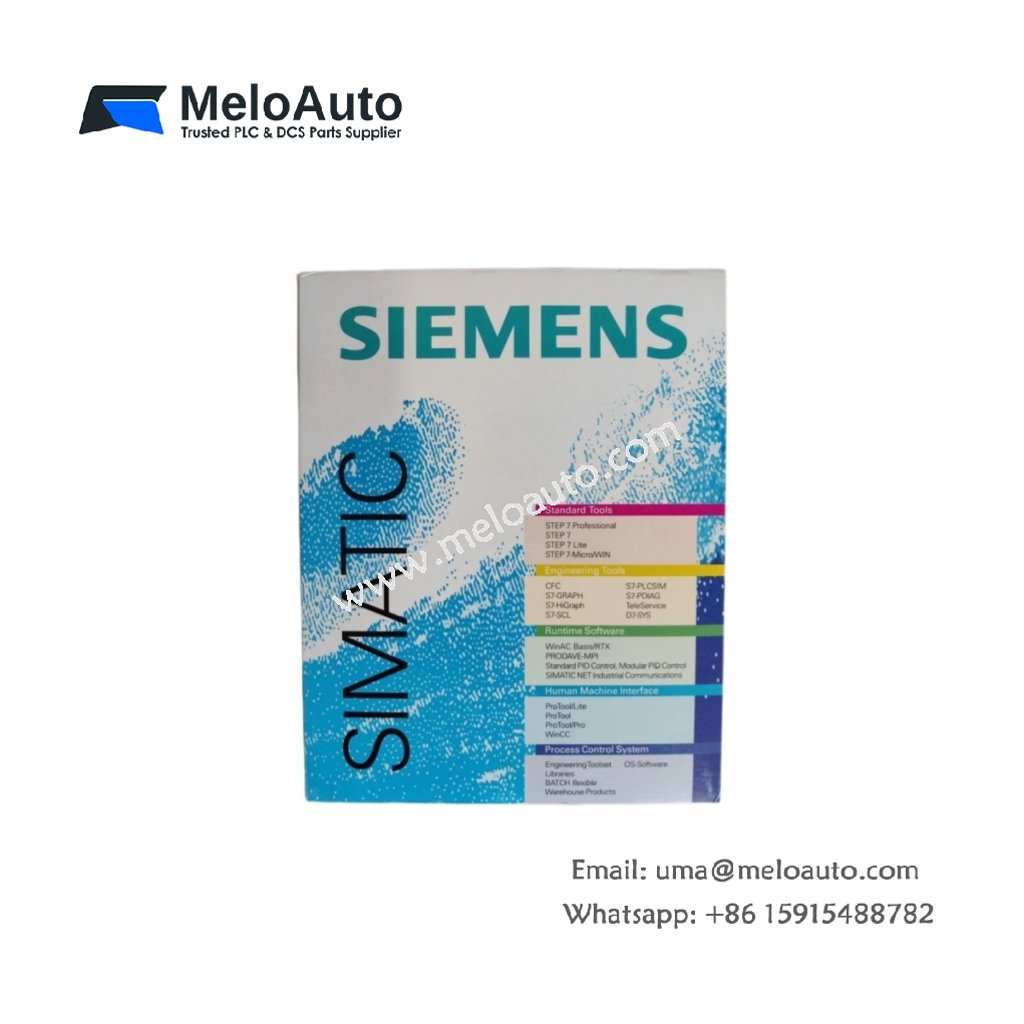

Siemens 6ES7658-3NX28-2YH5 PDM V8.2

The Siemens 6ES7658-3NX28-2YH5 provides the Extended V8.2 version of SIMATIC PDM (Process Device Manager) software. This powerful tool handles the configuration, parameterization, and monitoring of field devices. The software supports intelligent instrument management for process automation systems.

Technical Specifications

Parameter	Specification
Product Type	Device management software
Software Version	V8.2 (Extended)
Platform Compatibility	Windows 10, Windows 11 (64-bit)
Fieldbus Support	PROFIBUS, PROFINET, HART, Foundation Fieldbus
Device Support	Up to 5,000 devices (per project)
Integration	STEP 7, TIA Portal, PCS 7
Communication Interfaces	RS-232, USB, Ethernet, OPC UA
Protocol Support	HART (UP), PROFIBUS PA/DP, FF, Modbus RTU
License Type	Floating or node-locked (multi-user)
File Format	.pdm (proprietary), .xml (export)
System Requirements	4GB RAM, 2GB HDD, 1GHz+ CPU
Software Components	1 x device database, 1 x DTM library, 1 x communication server
Language Support	English, German, French, Italian, Spanish, Chinese
Installation Media	USB dongle (license key)
Documentation	PDF manuals (DVD, English/German)
Approvals	FDA 21 CFR Part 11 (compatible)

Comprehensive Device Management for Process Automation

The Siemens 6ES7658-3NX28-2YH5 SIMATIC PDM Extended V8.2 manages up to 5,000 field devices per project. This capacity suits large process plants with extensive instrumentation networks. Users can configure, calibrate, and diagnose devices from a single software interface. The tool supports intelligent instruments with digital communication capabilities.

Multi-Protocol Communication for Universal Integration

SIMATIC PDM V8.2 supports PROFIBUS DP/PA, PROFINET, HART, and Foundation Fieldbus. This multi-protocol coverage ensures compatibility with virtually all industrial instruments. The software connects to devices through RS-232, USB, Ethernet, or OPC UA channels. Users can access device parameters from the control room or field locations.

Seamless Integration with Siemens Automation Platforms

The Extended V8.2 version integrates seamlessly with STEP 7, TIA Portal, and PCS 7. This tight integration simplifies engineering and commissioning for Siemens-based systems. Users can launch PDM directly from the TIA Portal environment. Device data transfers automatically between the software and the control system.

Advanced Diagnostic and Monitoring Capabilities

PDM provides real-time device status monitoring with diagnostic alerts and events. Users can view detailed device health parameters including signal quality and temperature. The software logs historical data for predictive maintenance planning. Diagnostic wizards guide users through troubleshooting procedures step by step.

Multi-User License with Flexible Deployment

The Extended V8.2 software supports floating or node-locked license models for flexibility. Multiple engineers can access the same device database simultaneously. The license key stores on a USB dongle for easy transfer between workstations. This licensing model simplifies software administration across engineering teams.

Modern Operating System Compatibility

SIMATIC PDM V8.2 runs natively on Windows 10 and Windows 11 64-bit platforms. This modern compatibility ensures long-term software viability and support. Users can deploy the software on current engineering workstations without legacy constraints. The interface supports multiple languages for global engineering teams.
