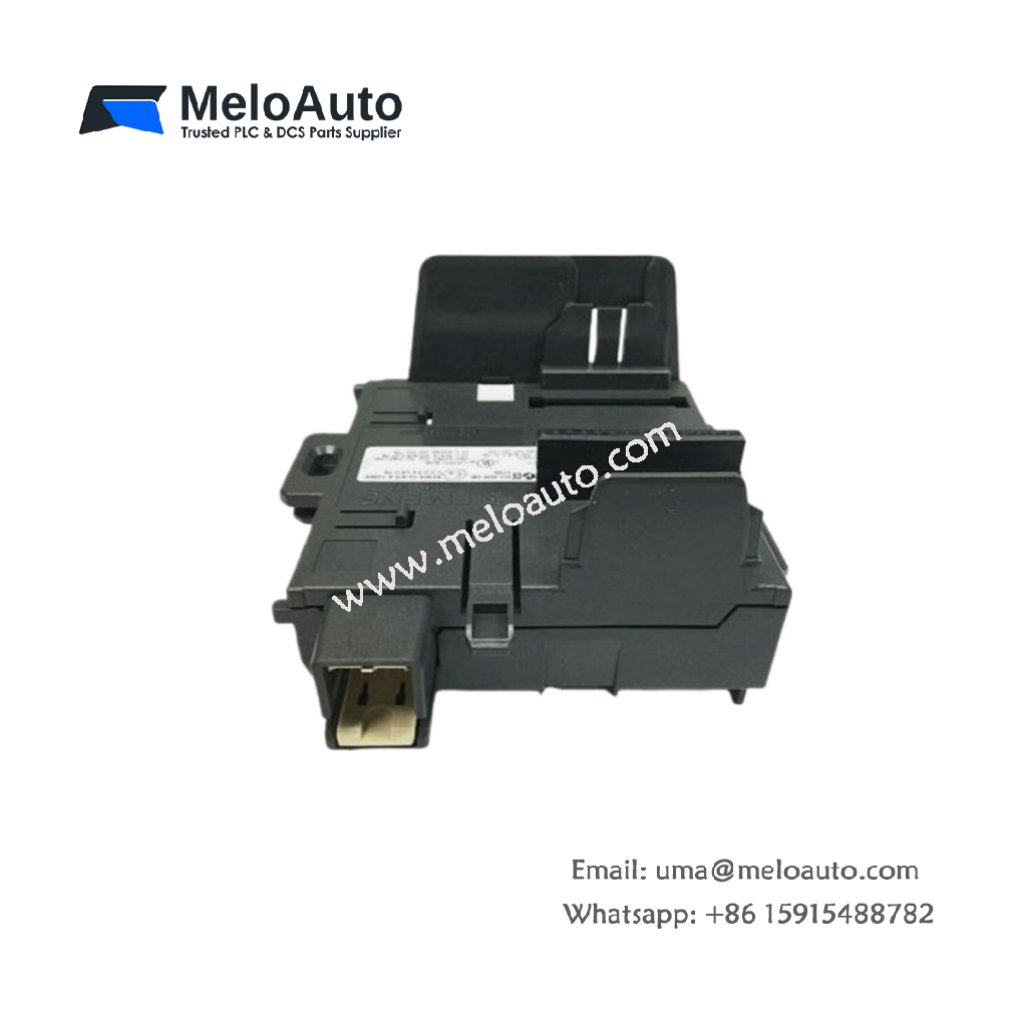

Siemens 6ES7654-7HY00-0XA0 BUS Unit

The Siemens 6ES7654-7HY00-0XA0 is a highly effective BUS unit designed specifically for integrating a Y coupler into SIMATIC S7 systems. This unit enhances communication, expands system capabilities, and ensures a smooth operation. It also comes with a protective cover, offering additional durability for industrial environments.

Key Features and Specifications

Specification	Value
Manufacturer	Siemens
Model	6ES7654-7HY00-0XA0
Product Type	BUS Unit
System Compatibility	SIMATIC S7
Primary Function	Y Coupler Integration
Protection	Includes cover for bus unit
Weight	0.5 kg
Dimensions	120 mm x 100 mm x 60 mm
Operating Voltage	24V DC
Temperature Range	-20°C to +60°C
Mounting Type	DIN Rail
Connection Type	Screw terminal
Communication Protocol	SIMATIC S7 Bus System Compatibility

In-Depth Overview

The Siemens 6ES7654-7HY00-0XA0 BUS unit seamlessly integrates a Y coupler into your SIMATIC S7 system, which significantly enhances the system’s flexibility and functionality. This integration enables efficient communication between components, ensuring smooth data flow and reliable performance.

The unit operates at 24V DC, with a wide temperature range of -20°C to +60°C, making it suitable for both standard and extreme industrial environments. Its design also includes a protective cover, safeguarding the bus unit from dust, moisture, and physical damage, ensuring the unit’s longevity and stable performance.

With a compact form factor of 120 mm x 100 mm x 60 mm and a lightweight design of just 0.5 kg, the 6ES7654-7HY00-0XA0 is easy to integrate into existing control setups. Furthermore, it mounts securely on a DIN rail, simplifying installation, while the screw terminal connection ensures a reliable, stable connection for all your system components.

Why Opt for the Siemens 6ES7654-7HY00-0XA0 BUS Unit?

The Siemens 6ES7654-7HY00-0XA0 offers a straightforward solution for expanding your SIMATIC S7 system with a Y coupler. It provides essential functionality for system integration, with robust features like the protective cover and DIN rail mounting. This module allows for enhanced communication, easy installation, and reliable system expansion, making it ideal for various industrial applications.

Additionally, the 24V DC operating voltage, along with its high temperature resilience, ensures that the unit delivers consistent performance in diverse working conditions.

Summary

The Siemens 6ES7654-7HY00-0XA0 is a critical component for SIMATIC S7 systems, offering seamless integration of a Y coupler. The module’s compact design, 24V DC voltage, and temperature range of -20°C to +60°C make it suitable for diverse environments. Moreover, the protective cover and DIN rail mounting ensure durability and ease of installation.
