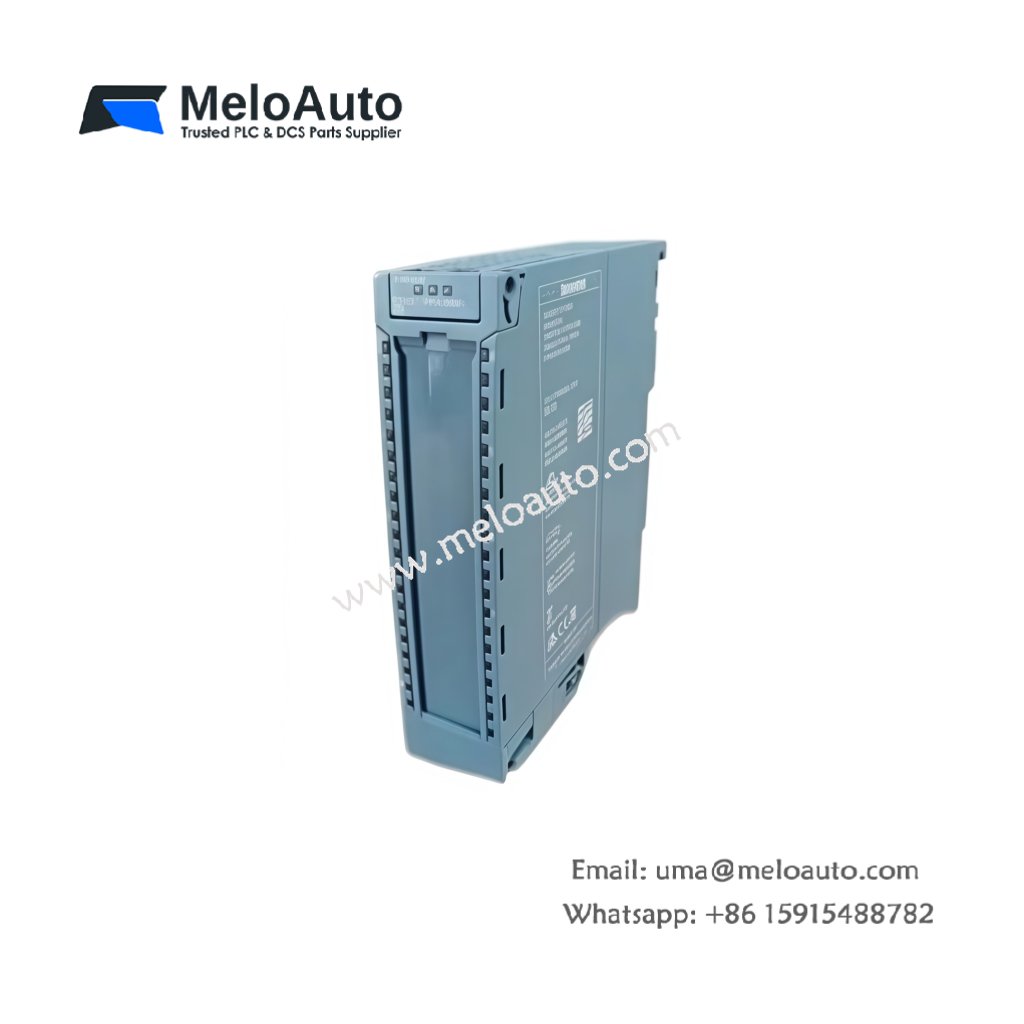

Siemens 6ES7531-7NF10-0AB0 AI Module | 8 Ch, 16‑bit, 0.125 ms

This analog input module captures eight channels of high-precision process signals. The Siemens 6ES7531-7NF10-0AB0 belongs to the SIMATIC S7-1500 product family. You can connect voltage, current, and resistance sensors directly. Its high-speed conversion suits fast control loops and monitoring applications.

Physical Dimensions and Hardware Layout

The Siemens 6ES7531-7NF10-0AB0 measures 3.5 cm in module width. Its total depth reaches 12.9 cm including the front connector. This analog input module weighs approximately 0.28 kg. A plastic housing provides robust protection for internal electronics. One green LED indicates backplane power status. Additionally, eight bi-color LEDs show each channel’s operating state.

Input Specifications and Signal Ranges

Each channel accepts ±10V, ±5V, or 0 to 10V voltage signals. The Siemens 6ES7531-7NF10-0AB0 also handles 0 to 20 mA and 4 to 20 mA currents. You can configure resistance measurement up to 10 kΩ. Built‑in 24V DC loop power supports two‑wire transmitters per channel. The module automatically rejects common-mode noise up to 60V.

Parameter	Specification
Number of Channels	8
Product Family	SIMATIC S7-1500
Voltage Ranges	±10V, ±5V, 0‑10V, 1‑5V
Current Ranges	0‑20 mA, 4‑20 mA, ±20 mA
Resistance Ranges	0‑600 Ω, 0‑6 kΩ, 0‑10 kΩ
Resolution	16 bits
Accuracy	±0.1% of full scale
Conversion Time per Channel	0.125 ms
Update Time (all channels)	1.0 ms
Loop Power Output	24V DC, 30 mA per channel
Input Impedance (Voltage)	> 1 MΩ
Input Impedance (Current)	100 Ω
Dimensions (W x H x D)	35 mm x 129 mm x 129 mm
Weight	0.28 kg (0.62 lbs)
Terminal Type	40‑pin front connector (sold separately)
Backplane Current Draw	220 mA @ 24V DC
Power Dissipation	5.3 W max
Internal Energy Storage	220 µF capacitor bank
Isolation Voltage	1500 Vrms channel‑to‑backplane
Common Mode Rejection	90 dB at 50/60 Hz
LED Indicators	1 green (power), 8 bi-color (status)
Diagnostic Alarms	Yes (wire break, underrange, overrange)
Operating Temperature	0°C to +60°C

Energy Storage and Measurement Stability

Internal capacitors stabilize the analog reference voltage locally. The Siemens 6ES7531-7NF10-0AB0 maintains reading accuracy during brief power dips. This storage prevents false measurements from supply fluctuations. Consequently, process readings remain reliable in noisy industrial environments.

Diagnostic Features and Channel Monitoring

Each channel provides wire break detection for current loops. The Siemens 6ES7531-7NF10-0AB0 also detects underrange and overrange conditions. The module sends diagnostic alarms to the CPU automatically. You can read channel status via the backplane interface. Therefore, troubleshooting field wiring faults becomes much faster.

Configuration and Integration

You configure this module using TIA Portal software. The Siemens 6ES7531-7NF10-0AB0 supports firmware updates over the backplane. Use a 40‑pin front connector (6ES7592-1AM00-0XB0) for field wiring. Shielded cables improve measurement accuracy significantly. Connect the shield drain wire to the ground terminal only.
