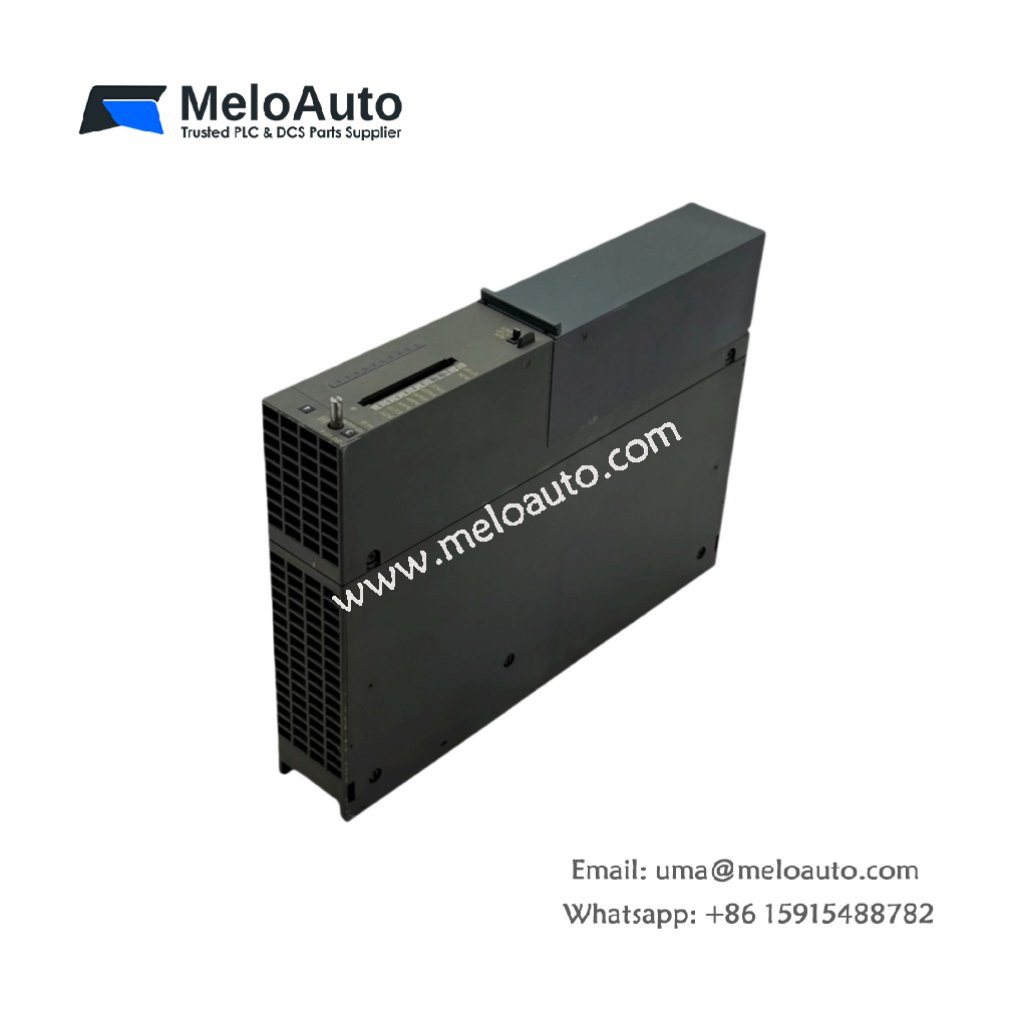

Siemens 6ES7417-4XL04-0AB0 Central Processing Unit

The Siemens 6ES7417-4XL04-0AB0 is a high-performance central processing unit (CPU) in the SIMATIC S7-400 series, designed for advanced industrial automation applications. It provides robust processing power and efficient data handling, making it ideal for complex control systems in manufacturing and process automation.

Key Features of Siemens 6ES7417-4XL04-0AB0

High Work Memory: The Siemens 6ES7417-4XL04-0AB0 offers 20 MB of work memory, with 10 MB allocated to code and 10 MB for data, ensuring fast processing and efficient data storage.
Multi-Interface Connectivity: It supports multiple communication interfaces, including MPI at 12 Mbit/s and PROFIBUS DP, allowing seamless communication across systems.
Plug-in IFM Module Support: The CPU includes plug-in interface modules, enhancing system flexibility and the ability to scale as needed.
Successor Model: The Siemens 6ES7417-4XL04-0AB0 is succeeded by the Siemens 6ES7417-4XT07-0AB0, offering an upgraded version with additional features.

Advantages of Siemens 6ES7417-4XL04-0AB0

Efficient Data Handling: With its large work memory, this CPU handles complex automation tasks with ease, enhancing system efficiency.
Versatile Communication: The multi-interface support allows integration with various automation components, improving system adaptability.
Scalable Solutions: Plug-in IFM modules and interface options offer flexibility for expanding and upgrading the system as needed.
Reliability: Built for high-demand environments, the 6ES7417-4XL04-0AB0 delivers consistent performance with minimal downtime.

Technical Specifications of Siemens 6ES7417-4XL04-0AB0

Specification	Details
Model	Siemens 6ES7417-4XL04-0AB0
Category	Central Processing Unit
Work Memory	20 MB (10 MB Code; 10 MB Data)
First Interface	MPI, 12 Mbit/s
Second Interface	PROFIBUS DP
Third/Fourth Interface	Plug-in IFM Module
Successor Model	Siemens 6ES7417-4XT07-0AB0
Power Supply	24 V DC (nominal)
Operating Temperature	0°C to +60°C
Dimensions	247 mm x 310 mm x 100 mm
Weight	2.5 kg
Protection Class	IP20
Mounting Type	DIN rail mounting

Applications

The Siemens is widely used in various automation applications, including:

Manufacturing Automation: This CPU efficiently manages production processes, enhancing automation and improving overall system performance.
Process Control: It provides reliable and precise control in industries like chemical processing, power generation, and water treatment.
Large-Scale Control Systems: The CPU’s scalable features allow it to handle large and complex control systems with multiple interfaces and data requirements.

Conclusion

The Siemens 6ES7417-4XL04-0AB0 CPU is an essential component for industrial automation. Its high work memory, versatile communication interfaces, and plug-in module support make it perfect for demanding control systems. Whether you’re upgrading an existing system or designing a new one, this central processing unit delivers top-tier performance, scalability, and reliability.
