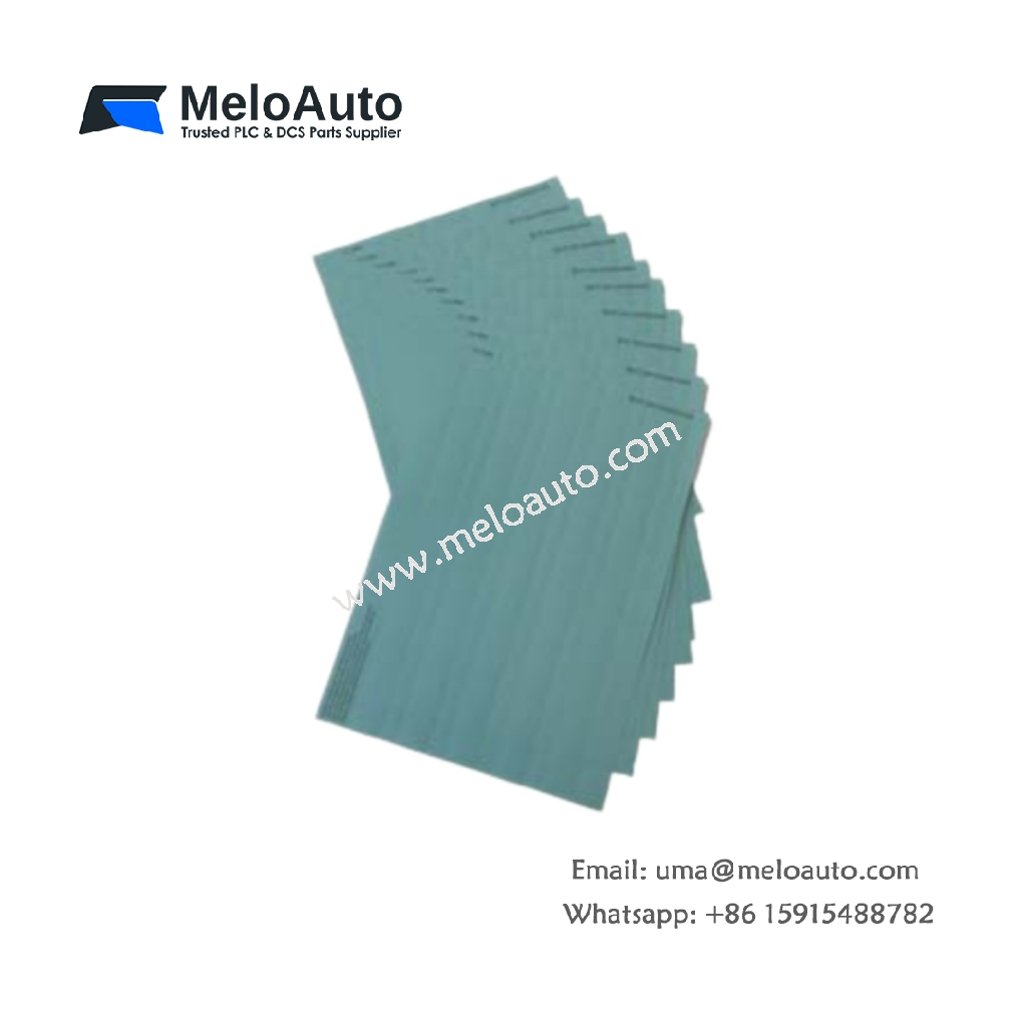

The Siemens 6ES7392-2DX10-0AA0 labeling sheets provide clear identification for SIMATIC S7-300 I/O modules. This set includes 10 DIN A4 sheets with pre-cut labeling fields for terminals and modules. The sheets allow users to create professional, permanent labels for control cabinet wiring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Labeling sheet set |
| Compatibility | SIMATIC S7-300 (all I/O modules) |
| Number of Sheets | 10 sheets per package |
| Sheet Format | DIN A4 (210 x 297 mm) |
| Label Fields per Sheet | 100 pre-cut labels |
| Total Labels per Set | 1,000 labels |
| Label Dimensions | 8 x 17 mm (each) |
| Material | Polyester film (white, matte) |
| Print Compatibility | Laser printers, inkjet printers |
| Adhesive Type | Permanent, solvent-based acrylic |
| Temperature Range (application) | +10°C to +40°C |
| Temperature Range (service) | -40°C to +80°C |
| Chemical Resistance | Oil, grease, solvents (mild) |
| UV Resistance | Good (5 years indoor) |
| Storage Conditions | Dry, 15–30°C, ≤80% RH |
| Shelf Life | 2 years (from production) |
| Dimensions (packaged) | 215 x 305 x 5 mm |
| Weight (total set) | 0.15 kg |
| Approvals | RoHS compliant |
Comprehensive Labeling Kit for S7-300 Systems
The Siemens 6ES7392-2DX10-0AA0 delivers 1,000 labels across ten DIN A4 sheets for extensive wiring projects. This quantity covers typical S7-300 installations with multiple I/O racks. Users can label terminals, modules, and cable markers with consistent formatting. The pre-cut design eliminates the need for manual cutting or punching.
Durable Polyester Material for Long Service Life
White matte polyester film provides excellent durability for industrial cabinet environments. The material resists oil, grease, and mild solvents commonly found in factories. UV resistance maintains label legibility for at least five years indoors. The adhesive withstands temperatures from -40°C to +80°C for reliable bonding.
Easy Printing with Standard Office Printers
Users can print labels using standard laser or inkjet printers without special equipment. The DIN A4 format fits most office and industrial printers seamlessly. The matte surface accepts toner and ink without smudging or bleeding. Users can create custom text, barcodes, or symbols using standard software.
Professional and Legible Terminal Identification
Each label measures 8 x 17 mm for clear visibility on terminal blocks and modules. This size provides ample space for wire numbers, signal names, or function codes. Consistent labeling reduces commissioning time and simplifies troubleshooting. Maintenance technicians can quickly identify wires and components during service.
Permanent Adhesive for Secure Attachment
Solvent-based acrylic adhesive ensures permanent bonding to various cabinet surfaces. The adhesive adheres strongly to metal, plastic, and painted surfaces. Labels remain firmly in place despite vibration and temperature cycles. Users can remove labels with moderate force if necessary.
Standardized Format for S7-300 Compatibility
The label fields match the terminal spacing of S7-300 I/O modules perfectly. This compatibility ensures labels align correctly with terminal blocks and module markings. The pre-cut layout prevents misalignment during application. Users can apply labels quickly without measuring or cutting each one individually.
