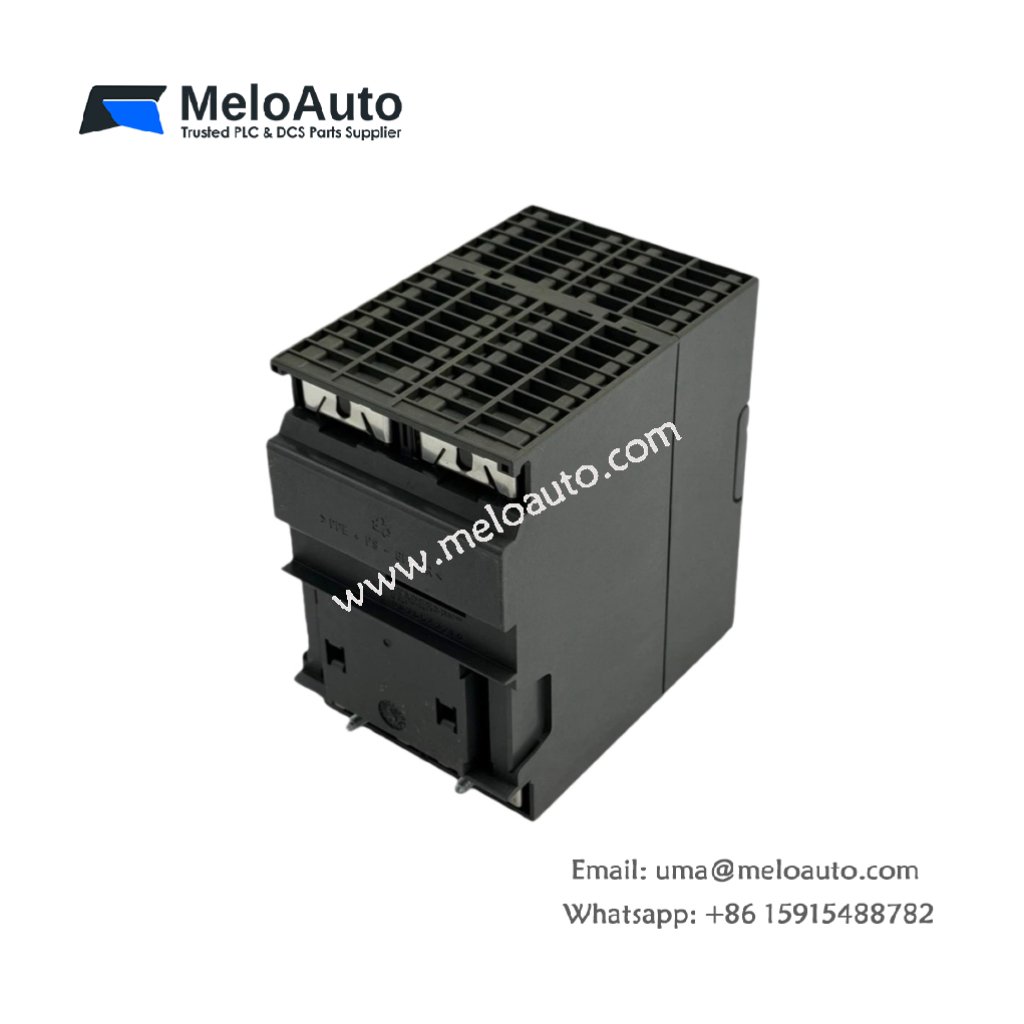

Siemens 6ES7315-2EH13-0AB0 SIMATIC S7-300 CPU

The Siemens 6ES7315-2EH13-0AB0 is a powerful SIMATIC S7-300 CPU 315-2 PN/DP, offering top-tier processing capabilities for complex automation systems. With its advanced features, including 256 KB work memory and dual communication interfaces, this unit ensures seamless performance in industrial environments.

Key Features

Enhanced Performance: The 6ES7315-2EH13-0AB0 is equipped with 256 KB work memory to enable faster processing and enhanced efficiency in your automation system.
Dual Interfaces for Flexibility: It supports two communication interfaces: the MPI/DP interface with 12 Mbit/s speed and the PROFINET interface, offering flexibility and high-speed connectivity.
Wide Voltage Range for Versatility: The CPU operates efficiently within a supply voltage range from 20.4V to 28.8V DC, which enhances its compatibility with diverse power setups.
Micro Memory Card Required: For optimal performance, a Micro Memory Card (not included) is required, allowing for enhanced storage and memory capabilities.
Low Power Consumption: It consumes a typical current of 650 mA during rated operation, helping to keep energy costs low while maintaining high functionality.

Technical Specifications

Specification	Detail
Model	6ES7315-2EH13-0AB0
Category	Central Processing Unit (CPU)
Series	SIMATIC S7-300
Work Memory	256 KB
Interfaces	MPI/DP 12 Mbit/s, PROFINET
Supply Voltage	24 VDC (Nominal)
Voltage Range (Lower Limit)	20.4 VDC
Voltage Range (Upper Limit)	28.8 VDC
Current Consumption (Rated Value)	650 mA
Current Consumption (No-Load)	100 mA
Inrush Current	2.5 A
Protection for Power Supply Lines	Yes
Required Components	Micro Memory Card
Firmware Version	V2.6
Engineering Software	STEP 7 V5.4 SP2
Minimum External Protection for Supply	2 A

Applications

The Siemens is ideal for advanced industrial automation applications. Whether you’re controlling a manufacturing process or handling large-scale systems, this CPU offers the processing power and communication interfaces needed to maintain reliability and speed. It ensures smooth integration with a wide range of devices due to its dual interface options.

Why Choose the Siemens 6ES7315-2EH13-0AB0 CPU?

High Processing Power: The 6ES7315-2EH13-0AB0 ensures fast, efficient processing with its 256 KB work memory, improving your system’s overall performance.
Dual Interfaces for Seamless Connectivity: Its MPI/DP and PROFINET interfaces provide versatile connectivity, supporting diverse network configurations.
Flexible Voltage Range: This CPU operates efficiently within a voltage range of 20.4V to 28.8V DC, making it adaptable to various power conditions.
Micro Memory Card for Enhanced Storage: The unit requires a Micro Memory Card, allowing for greater data storage and processing capabilities.
Low Power Consumption: The 6ES7315-2EH13-0AB0 is designed to consume low power, with a typical current of 650 mA, contributing to energy efficiency.

Conclusion

In conclusion, the Siemens SIMATIC S7-300 CPU 315-2 PN/DP delivers exceptional performance and reliability. Whether you are managing a simple process or a complex automation system, this CPU provides the processing speed, communication flexibility, and energy efficiency necessary for a variety of industrial applications.
