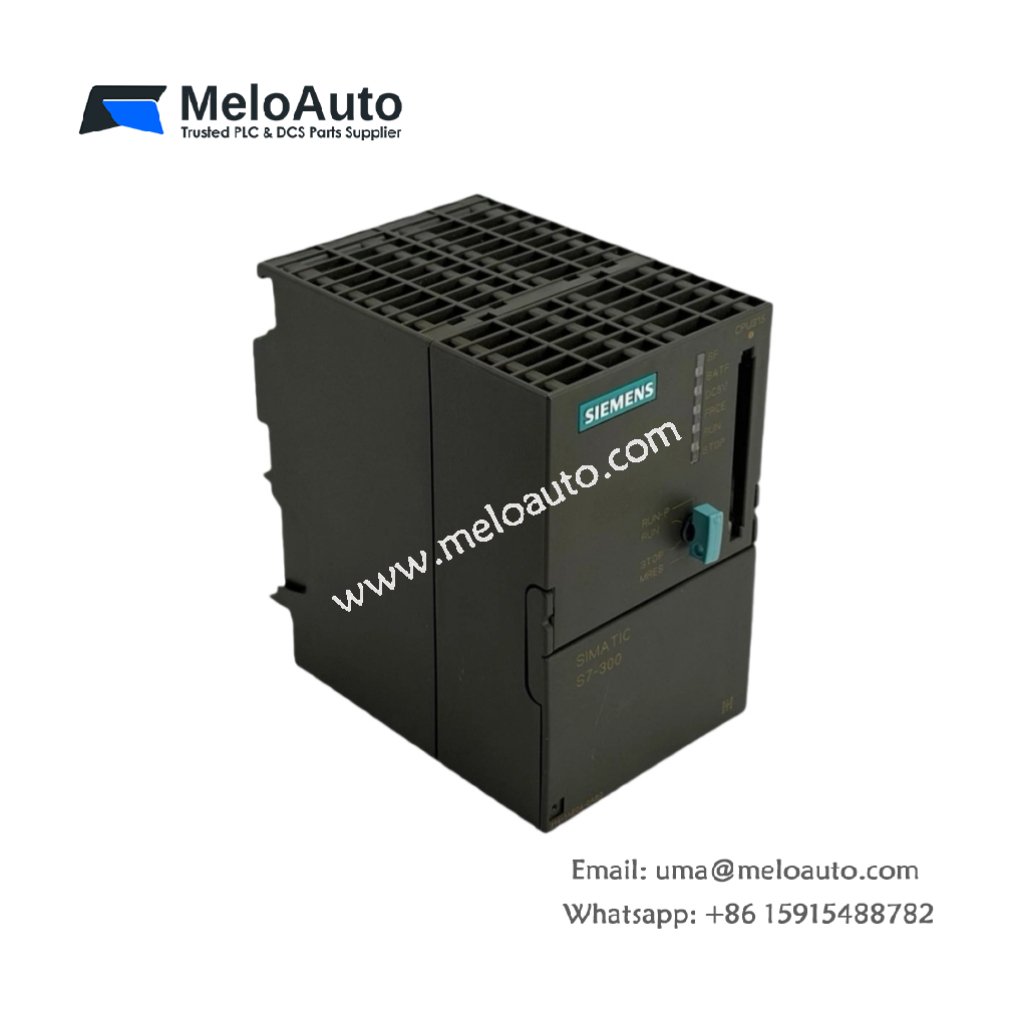

Siemens 6ES7315-1AF03-OABO SIMATIC S7-300 CPU

Overview

The Siemens 6ES7315-1AF03-OABO is a powerful and reliable SIMATIC S7-300 CPU designed for industrial automation applications. This CPU comes with an integrated 24 V DC power supply, ensuring optimal performance across a wide range of systems. It offers 48 Kbyte of working memory, making it a robust solution for complex control processes. The Siemens 6ES7315-1AF03-OABO is the ideal choice for controlling manufacturing processes, automation systems, and much more.

With its expandable memory and high inrush current tolerance, this CPU ensures smooth and stable operations in demanding industrial environments. Whether you’re building a new automation system or upgrading an existing one, the Siemens 6ES7315-1AF03-OABO provides exceptional value and performance.

Key Features

Integrated 24 V DC Power Supply: The CPU comes with a built-in 24 V DC power supply, eliminating the need for external power sources.
Expandable Memory: Includes 48 Kbyte working memory, with additional expandable 4 Mbyte of load memory, providing flexibility for larger programs and data storage.
Inrush Current Support: This model can handle a maximum inrush current of 8A, ensuring smooth startup and preventing damage.
Efficient Power Consumption: The power loss is minimized with a maximum of 8W to improve overall system efficiency and energy usage.
Reliable Memory Management: With Flash-EPROM and integrated RAM, memory management is both stable and scalable for various industrial applications.

Applications

The Siemens 6ES7315-1AF03-OABO is ideal for industries where reliable and efficient control systems are needed, such as:

Industrial Automation: Perfect for manufacturing plants and automation systems requiring continuous monitoring and control.
Process Control: Used to manage complex processes with high accuracy and real-time data processing.
Machine Control: Ensures precise control over machinery and equipment, enhancing operational performance and reliability.

Technical Specifications

Parameter	Specification
Model	6ES7315-1AF03-OABO
Product Type	SIMATIC S7-300 CPU
Power Supply	Integrated 24 V DC
Rated Supply Voltage	24 V DC
Permissible Voltage Range	20.4 V DC – 28.8 V DC
Input Current (at 24 V DC)	1000 mA
Inrush Current (Max.)	8A
Power Loss (Max.)	8W
Work Memory (Integrated)	48 Kbyte RAM
Expandable Memory	4 Mbyte Flash-EPROM, 80 Kbyte RAM
Load Memory	Expandable FEPROM
Backup	Integrated RAM and Flash-EPROM
Dimensions (L x W x H)	230 mm x 100 mm x 140 mm
Weight	1.5 kg
Mounting	Rack-mountable
Ambient Temperature	0°C to 60°C
Compliance	CE, UL, RoHS

Why Choose the Siemens 6ES7315-1AF03-OABO?

The Siemens 6ES7315-1AF03-OABO CPU stands out with its combination of reliable power supply integration and expandable memory. This product offers smooth performance under varying voltage conditions and high inrush current, making it ideal for demanding industrial automation and control systems. The 48 Kbyte working memory, along with expandable Flash-EPROM, provides sufficient storage for complex automation tasks. Additionally, its low power consumption and minimal power loss enhance its energy efficiency, which reduces overall operational costs.

Conclusion

The Siemens 6ES7315-1AF03-OABO is a versatile and efficient solution for any industrial control system. Its integrated 24 V DC power supply and expandable memory make it a flexible choice for diverse automation and process control tasks. Whether you need to control manufacturing equipment or manage large-scale industrial operations, this CPU ensures reliable performance and easy scalability.
