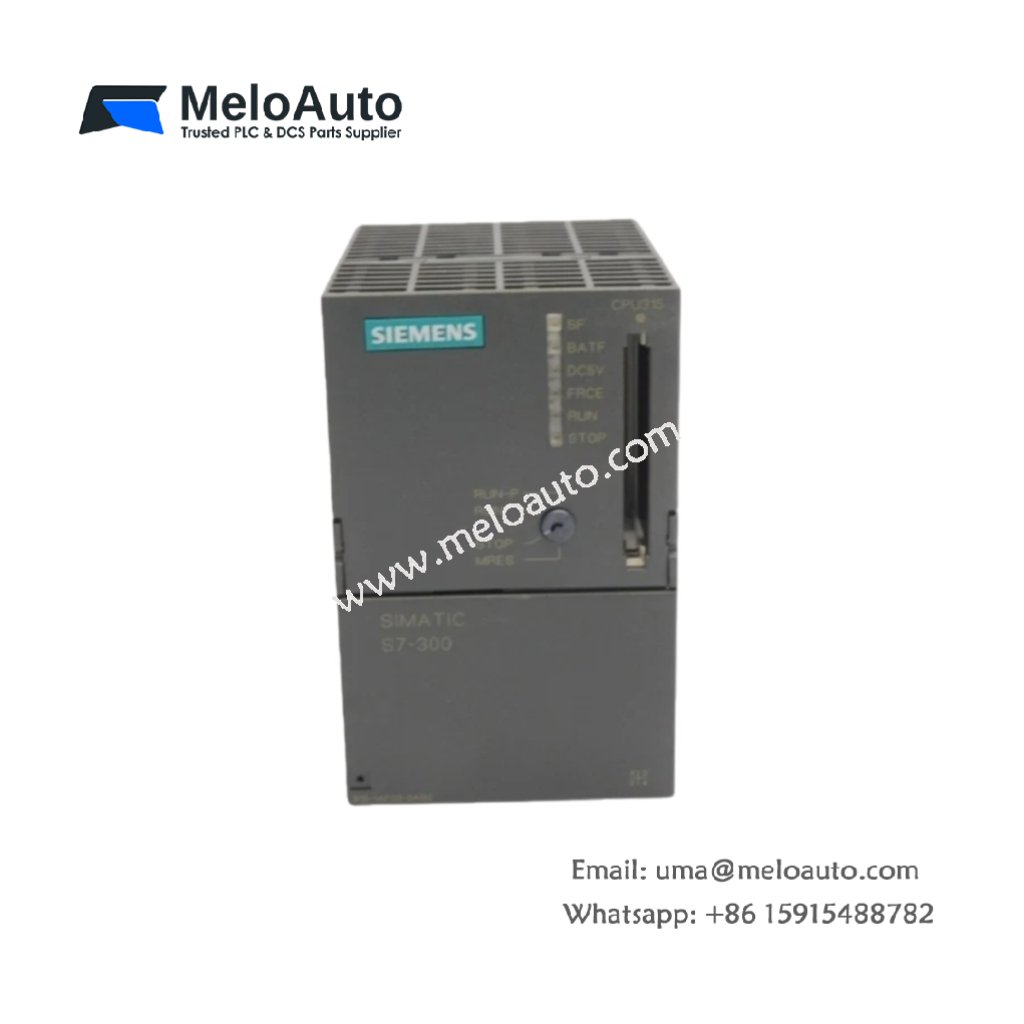

Siemens 6ES7315-1AF03-0AB0

The Siemens 6ES7315-1AF03-0AB0 is a high-performance CPU module designed for industrial automation systems. This model offers an integrated 24V DC power supply, making it an ideal solution for various automation tasks. It provides robust performance and memory capacity, making it suitable for complex applications.

Key Features and Specifications

Model: 6ES7315-1AF03-0AB0
Category: CPU with Integrated Power Supply
Manufacturer: Siemens
Product Line: SIMATIC S7-300

Power Supply and Current Specifications

Parameter	Details
Rated Supply Voltage	24 V DC
Permissible Voltage Range	20.4 V to 28.8 V
Rated Current Consumption	1,000 mA
Inrush Current (max.)	8 A
Power Loss (max.)	8 W

Memory and Storage

Parameter	Details
Working Memory	48 Kbyte (48 KB/16K instructions RAM)
Load Memory	Expandable via FEPROM
Maximum Load Memory	4 Mbyte
Maximum Integrated RAM	80 Kbyte
Backup Memory	Yes (with battery)
Memory Type	Flash-EPROM

Dimensions and Weight

Parameter	Details
Net Weight	0.528 kg (528 g)
Shipping Weight	1.5 kg
Package Dimensions	13.20 x 15.00 x 9.00 cm

Performance and Functionality

The Siemens 6ES7315-1AF03-0AB0 provides a reliable solution for controlling complex automation processes. It features an integrated 24V DC power supply that simplifies installation and ensures consistent power delivery to connected devices. With a rated current consumption of 1,000 mA, it ensures stable operation even under heavy loads.

This CPU module is designed with 48 KB of integrated working memory, allowing it to process up to 16,000 instructions. For more extensive memory needs, it supports expandable FEPROM, with a maximum capacity of 4 Mbyte for load memory.

Efficient Power Management

With a power loss of only 8 W, this CPU module is highly energy-efficient. It also supports inrush current of up to 8 A, ensuring that the system can handle initial power surges without issues.

Backup and Data Integrity

The Siemens 6ES7315-1AF03-0AB0 is equipped with a battery-backed memory, ensuring data integrity even during power interruptions. Additionally, it supports Flash-EPROM, which provides reliable non-volatile storage.

Applications

The Siemens 6ES7315-1AF03-0AB0 is suitable for a wide range of industrial automation applications, including:

Industrial Control Systems: Ideal for controlling machinery and processes in manufacturing plants.
Process Automation: Perfect for industries requiring precise control over critical processes.
Complex Automation Tasks: Its high memory capacity makes it suitable for managing complex logic and real-time processes.
