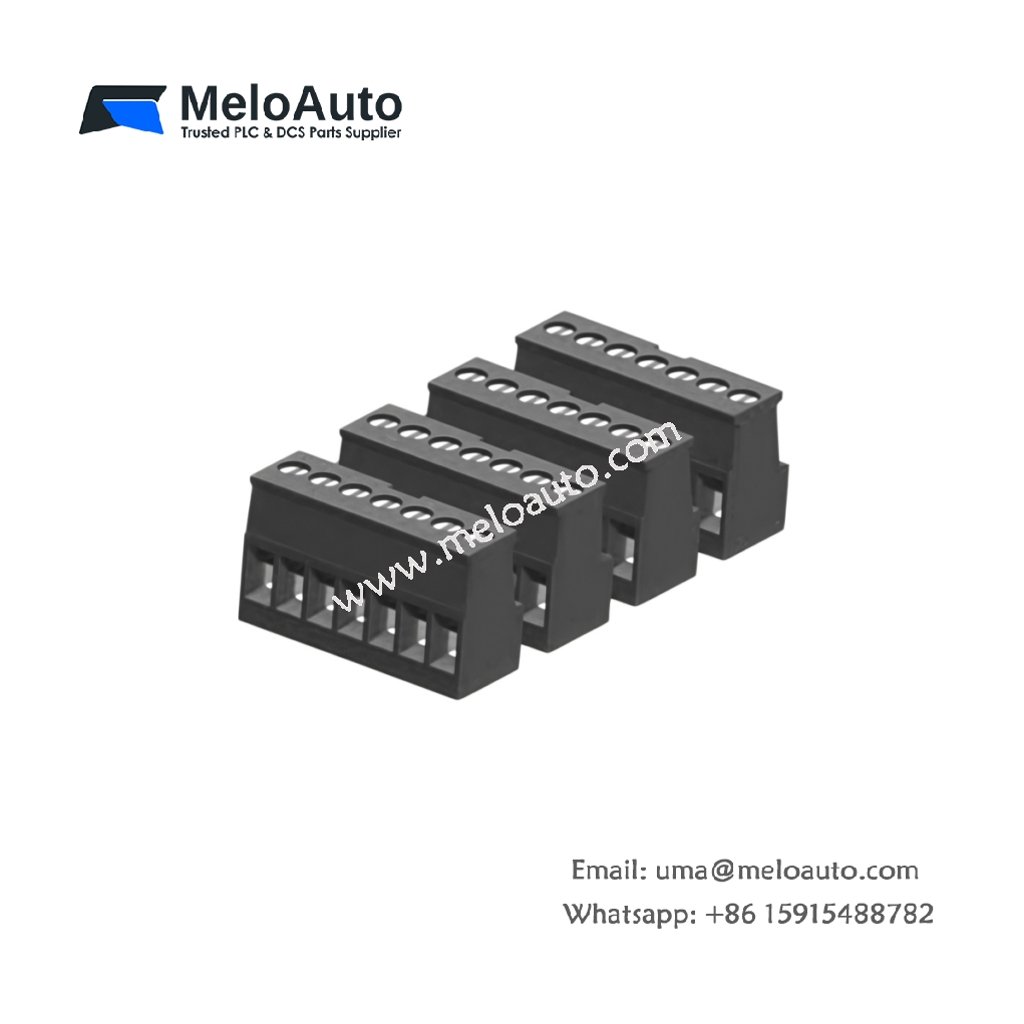

Siemens 6ES7292-1AT30-0XA0 18 Position Terminal Block Plug

Product Overview

The 6ES7292-1AT30-0XA0 terminal block plug provides reliable electrical connections for Siemens SIMATIC automation systems and control applications. It enables organized wiring connections while maintaining stable signal transmission between modules and external field devices.

Moreover, the compact terminal design supports efficient installation within limited control cabinet spaces. The plug structure allows quick wiring operations while improving maintenance efficiency for industrial automation engineers.

Additionally, high-quality connection materials enhance electrical reliability during continuous operation. The durable construction supports long service life while maintaining consistent contact performance across demanding industrial environments.

Technical Specifications

Parameter	Specification
Brand	Siemens
Model	6ES7292-1AT30-0XA0
Product Category	18 Position Terminal Block Plug
Connector Type	Removable Terminal Block Connector
Number of Positions	18 Terminals
Application	SIMATIC S7-200 / S7 Automation Systems
Connection Method	Screw Terminal Connection
Interface Type	Electrical Terminal Interface
Contact Material	Industrial Conductive Alloy
Component Configuration	Terminal contacts, housing shell, locking structure, connection elements
Energy Storage	Not Applicable (Passive Connection Component)
Housing Material	Flame-retardant Industrial Plastic
Installation Method	Plug-in Module Connection
Dimensions	Approx. 90 × 25 × 20 mm
Weight	Approx. 0.05 kg
Operating Environment	Industrial Automation Control Systems

Key Features

The 6ES7292-1AT30-0XA0 provides 18 connection positions, allowing engineers to organize multiple signal wires efficiently. Furthermore, the removable terminal structure simplifies installation, replacement, and routine maintenance procedures.

In addition, the secure screw terminal design maintains stable electrical contact during long operating periods. The robust housing protects internal connection points while supporting reliable performance in industrial environments.

The optimized connector structure improves wiring management and reduces installation complexity. Moreover, the compact dimensions help engineers achieve cleaner cabinet layouts while maintaining easy access for future system adjustments.

Industrial Applications

Engineers commonly use the 6ES7292-1AT30-0XA0 in Siemens PLC systems, machine automation equipment, production lines, and industrial control panels. Additionally, the terminal block supports signal wiring for digital modules, power connections, sensors, and actuator devices within automation projects.

Advantages for Industrial Automation

The compact connector design improves installation flexibility while providing dependable electrical connections. Furthermore, durable materials, organized wiring capability, and Siemens compatibility make this terminal block suitable for efficient industrial automation system integration.
