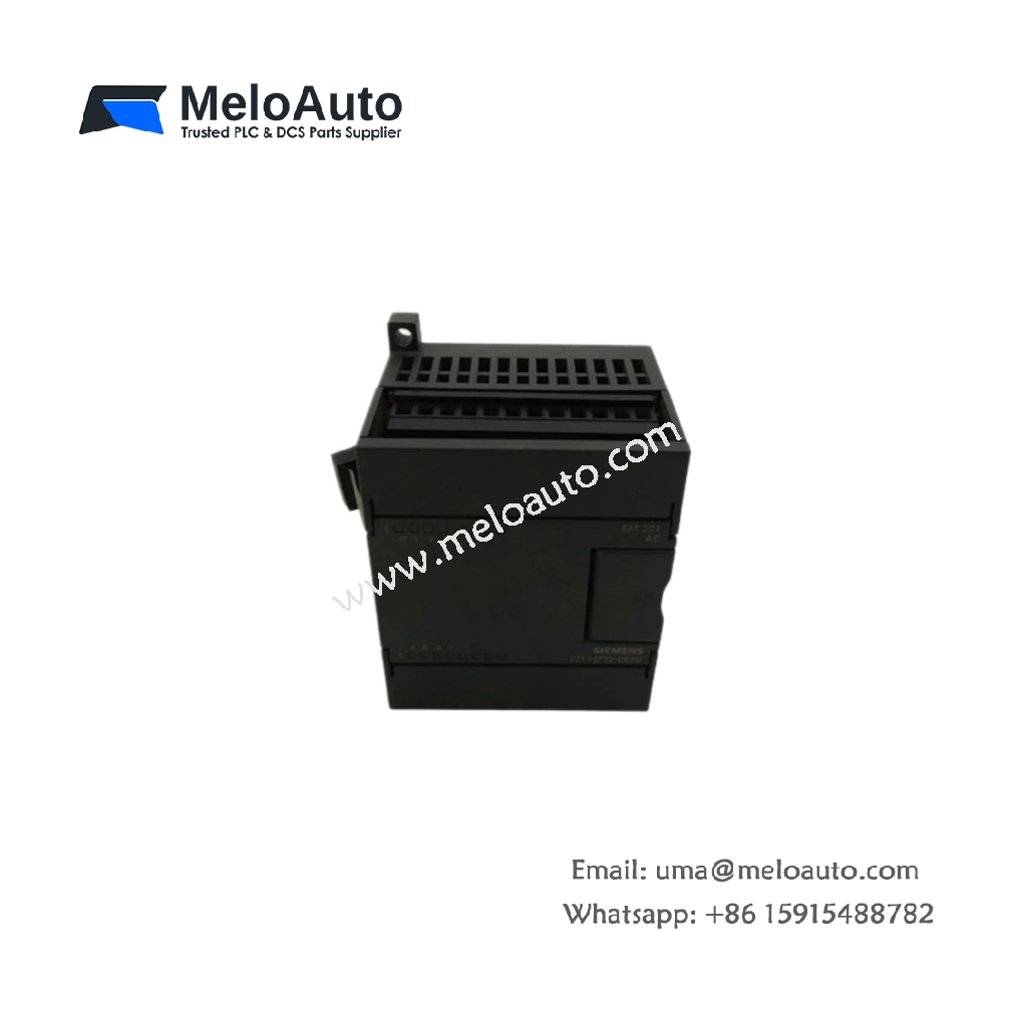

Siemens 6ES7221-1EF22-0XA0 SIMATIC S7-200 Digital Input Module

Technical Specifications Overview

Functional Overview and Input Interface

This expansion module adds eight AC digital inputs to the S7-200 control system. It directly connects to the S7-200 expansion bus for seamless integration. The 6ES7221-1EF22-0XA0 accepts signals from pushbuttons, limit switches, and proximity sensors. Furthermore, the module handles AC input voltages from 85 to 264 VAC. This wide range accommodates global power standards without adjustment. The module also provides optical isolation between the control and field circuits. This isolation protects the CPU from electrical noise and transients.

Input Characteristics and Signal Processing

The Siemens 6ES7221-1EF22-0XA0 features eight channels arranged in two isolated groups. Each group contains four inputs with common return. The module requires a minimum on-state voltage of 79 VAC for reliable detection. The off-state voltage threshold stands at 40 VAC maximum. Additionally, the input current draws only 6 mA typical at 120 VAC. This low current minimizes loading on field devices. The module includes programmable input delay from 0.2 ms to 12.8 ms. This adjustable filtering eliminates false triggers from contact bounce or noise.

Physical Architecture and Mounting Details

The module features a compact design with dimensions of 46 mm x 80 mm x 62 mm (1.8″ x 3.1″ x 2.4″) . Its lightweight construction of approximately 0.15 kg eases installation in DIN rail enclosures. The front panel provides a removable 12-pin terminal block for field wiring. This removable design simplifies cable replacement and maintenance procedures. The module connects to the S7-200 via the rear expansion bus connector. This bus interface carries both power and data communications. The module also includes a DIN rail latch for secure mounting.

Status Indication and Diagnostics

The module features eight green LEDs on the front faceplate. Each LED corresponds to one input channel and illuminates when the input activates. This visual feedback simplifies troubleshooting and commissioning. The module also communicates channel status back to the CPU over the expansion bus. Consequently, the programmer can monitor all inputs through the programming software. The module also reports any group overcurrent conditions to the CPU. This diagnostic feature prevents damage from wiring faults or short circuits.

Power Requirements and Energy Storage

The module draws 30 mA from the 5 VDC bus for internal logic circuits. It also requires 20 mA at 24 VDC external for the input circuits. The total power consumption remains low for energy-efficient operation. The internal 47 µF capacitor provides energy storage for input debouncing. This capacitance ensures stable signal recognition despite field device contact chatter. The module also includes reverse-polarity protection on the external supply input.

Environmental Tolerance and Certifications

The module operates across a 0°C to +55°C ambient temperature range. Storage temperatures range from -40°C to +70°C. The unit carries CE, UL, and CSA certifications for global industrial use. Install the module in a clean, dry enclosure with adequate ventilation. The module also complies with IEC 61131-2 standards for programmable controllers.
