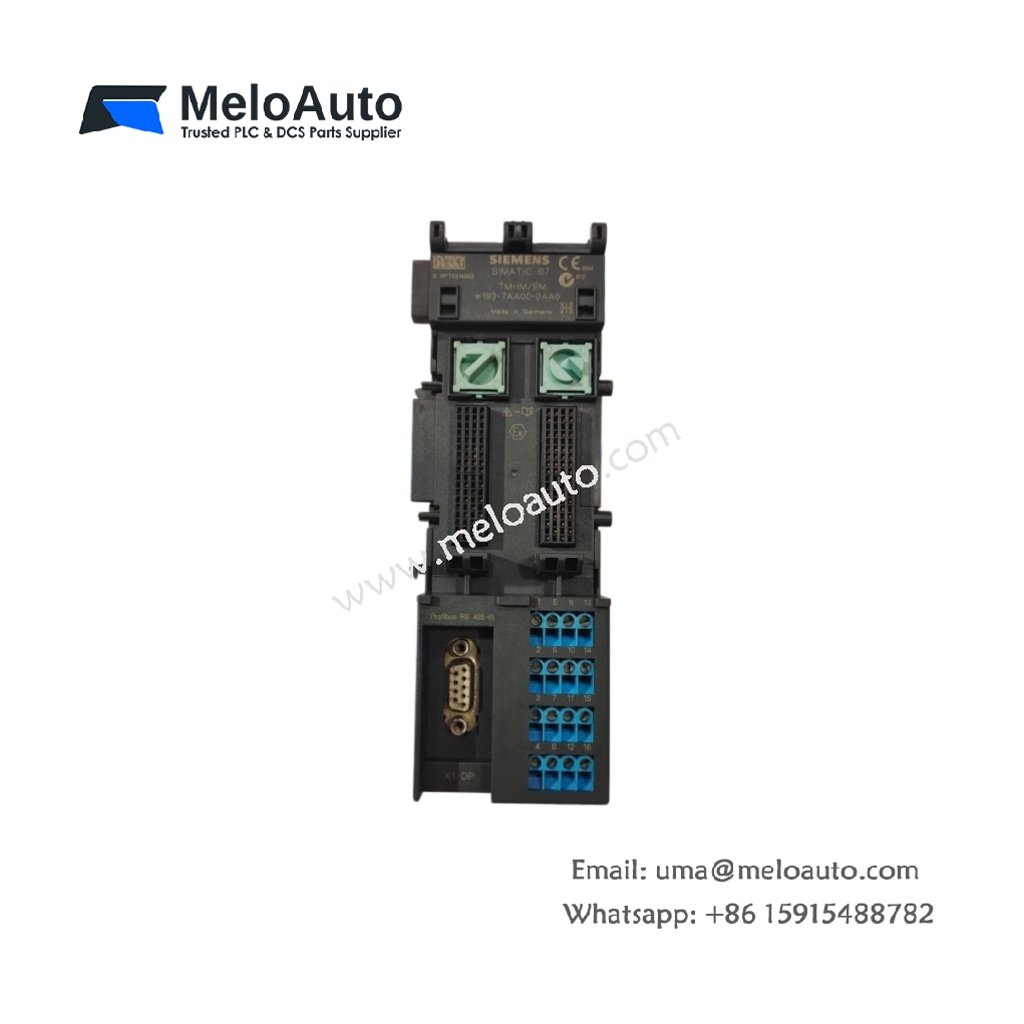

Siemens 6ES7193-7AA00-0AA0 SIMATIC DP Terminal Module for ET 200S

This terminal module provides a flexible wiring interface for SIMATIC DP distributed I/O systems. It connects field devices directly to the ET 200S electronic modules. The Siemens 6ES7193-7AA00-0AA0 simplifies signal routing for digital and analog I/O configurations. This compact unit reduces cabinet wiring time and maintenance costs significantly.

Physical Dimensions and Installation Profile

This terminal module measures 46 millimeters in width, 75 millimeters in depth, and 60 millimeters in height. The unit weighs approximately 0.15 kilograms for lightweight panel mounting. It installs directly onto the ET 200S terminal base using a spring-loaded locking mechanism. The module features color-coded terminal blocks for easy wire identification. Additionally, a hinged cover protects wiring points from accidental contact.

Connection Specifications and Wire Termination

The Siemens 6ES7193-7AA00-0AA0 provides 16 screw-type terminals for field device connections. Each terminal accepts solid or stranded wires from 0.14 to 2.5 square millimeters. The unit supports both single-wire and multicore cable terminations. Terminal screws feature a captive design that prevents loss during maintenance. The module includes an additional grounding terminal for shielding purposes.

Electrical Ratings and Signal Handling

This terminal module handles a continuous current of 8 amperes per connection point. It supports signal voltages up to 230 volts AC and 60 volts DC. Contact resistance remains below 10 milliohms for minimal signal loss. The unit withstands impulse voltages up to 2.5 kilovolts for surge protection.

Component Architecture and Build Quality

The Siemens 6ES7193-7AA00-0AA0 contains 12 individual components including terminal blocks and busbars. The current-carrying parts use tin-plated copper alloy for excellent conductivity. The housing consists of high-strength polyamide material with excellent mechanical durability. All metal parts undergo corrosion-resistant treatment for harsh environments.

Installation and Wire Preparation

Engineers can install this terminal module without any specialized tools or adapters. Stripping wire insulation to 10 millimeters provides the optimal clamping force. The terminal order follows the standard ET 200S addressing scheme for consistency. Color coding on the terminal block simplifies wiring verification during commissioning.

Technical Data Summary

System Integration and Application Scope

This terminal module integrates seamlessly with Siemens ET 200S distributed I/O stations. It handles wiring for digital and analog input/output modules effectively. Consequently, the Siemens 6ES7193-7AA00-0AA0 provides a reliable termination solution for PROFIBUS DP applications.
