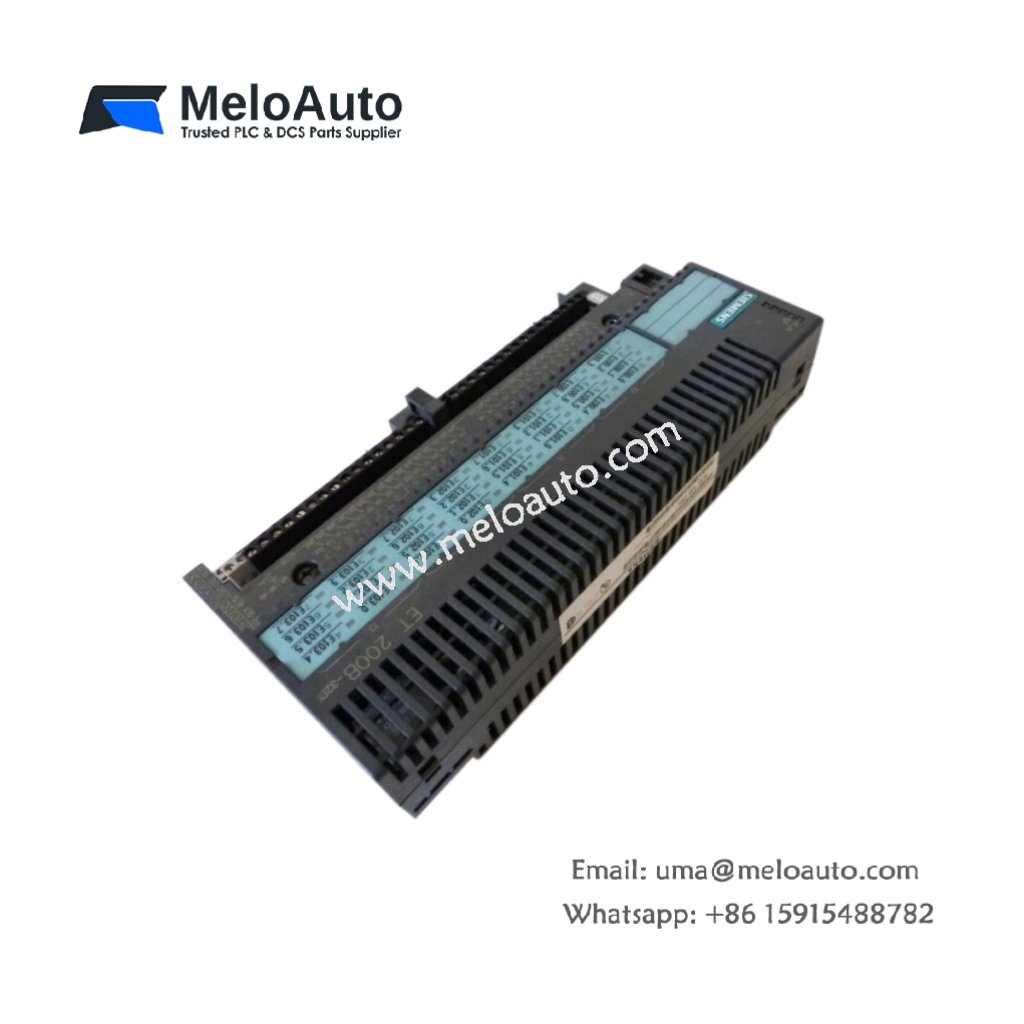

Siemens 6ES7151-1AA05-0AB0 PROFIBUS Interface

Robust PROFIBUS Connectivity for ET 200M Stations

The Siemens 6ES7151-1AA05-0AB0 is a high-performance PROFIBUS DP interface module for the SIMATIC ET 200M distributed I/O system. This module links the I/O station to a PROFIBUS DP master, facilitating remote data exchange and control. It supports a range of transmission rates, including up to 12 Mbps for high-speed communication. The module handles both cyclic and acyclic data exchange, ensuring flexible integration.

Key Technical Specifications

Parameter	Specification
Product Model	Siemens 6ES7151-1AA05-0AB0
Brand	Siemens
Category	PLC Interface Module
Product Family	SIMATIC ET 200M
Protocol	PROFIBUS DP
Transmission Rate	9.6 kbps to 12 Mbps (automatic detection)
Interface	RS-485 (9-pin D-sub connector)
Address Assignment	DIP switch (PROFIBUS address)
Maximum I/O Modules	Supports up to 128 modules per station
Communication Modes	Cyclic (process data) and acyclic (parameter)
Power Supply	24 VDC (via backplane)
Current Consumption	400 mA (from backplane)
Dimensions	80 mm x 125 mm x 130 mm
Weight	Approx. 400 g
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Protection Class	IP20

Communication Capabilities and Network Performance

The module supports automatic baud rate detection up to 12 Mbps for high-speed data exchange. It handles PROFIBUS DP communication, enabling the ET 200M station to function as a remote I/O node. The module participates in both cyclic data exchange for process values and acyclic communication for diagnostics.

System Integration and Configuration

The Siemens 6ES7151-1AA05-0AB0 fits into the ET 200M rack. The PROFIBUS address is set via DIP switches on the module. Users configure the module using the engineering software and a corresponding GSD file.

Physical Design and Installation

The module has a standard S7-300 housing for rack mounting. It features a 9-pin D-sub connector for the PROFIBUS cable. The front panel includes diagnostic LEDs.
