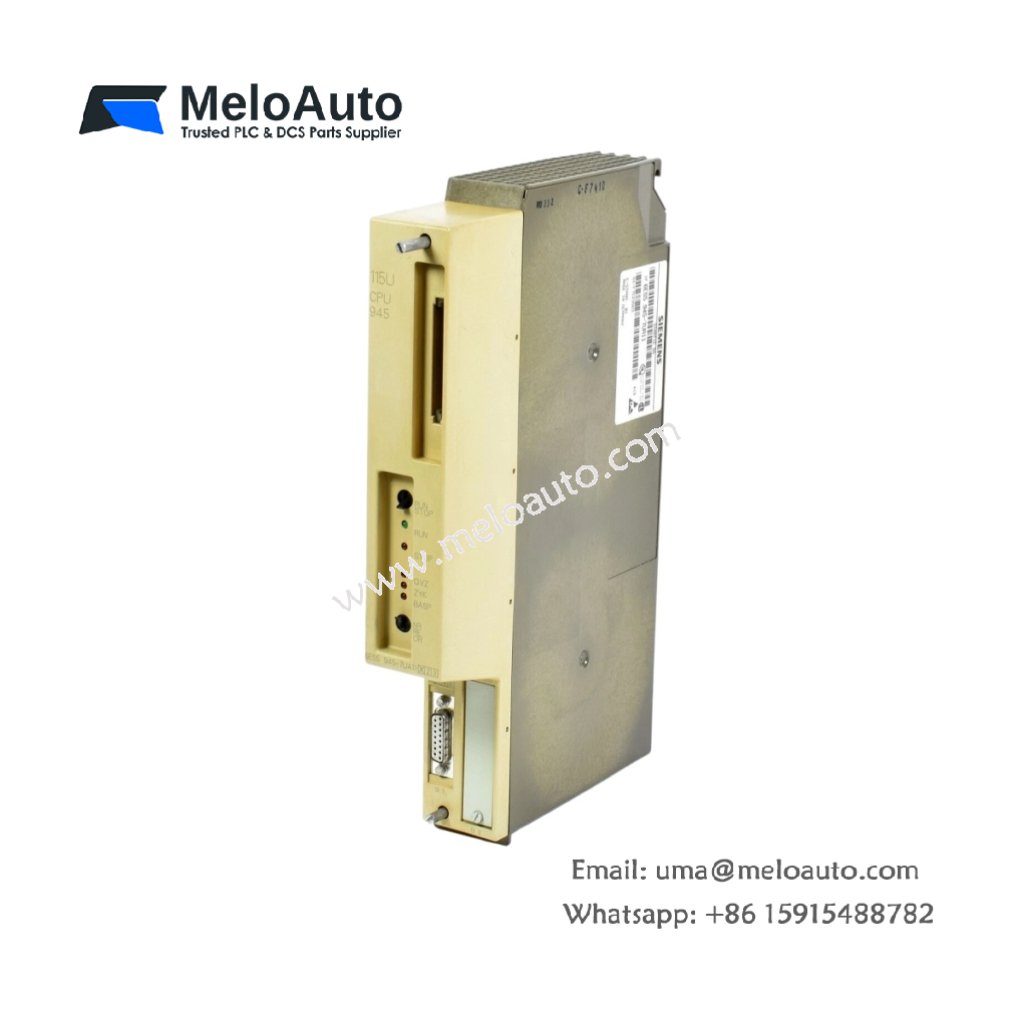

Siemens 6ES5945-7UA11 CPU Module

This CPU module serves as the central processor for SIMATIC S5 automation systems. The Siemens 6ES5945-7UA11 belongs to the CPU 945 series for S5-115U controllers. Its robust design provides extensive memory capacity for complex control applications.

Key Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Model	6ES5945-7UA11
Type	CPU Module
Product Line	SIMATIC S5
Series	CPU 945
Compatibility	S5-115U
Memory	256 KB
Power Supply	5 VDC from backplane
Dimensions	235 mm × 160 mm × 45 mm
Weight	Approximately 0.95 kg
Mounting	S5-115U rack compatible

Central Processing Capabilities

The Siemens 6ES5945-7UA11 executes user programs with efficient scan cycle performance. This module features 256 KB of memory for extensive program and data storage. Furthermore, it supports complex control logic including arithmetic operations and data handling functions. Engineers can develop sophisticated applications using STEP 5 programming environments.

The internal architecture includes dedicated memory for program blocks, data blocks, and system parameters. This memory preserves critical information during power cycles through integrated energy storage. Additionally, the Siemens 6ES5945-7UA11 features built-in communication interfaces for programming and network connectivity. These interfaces allow straightforward system configuration and real-time monitoring.

Robust Construction

This CPU module measures 235 millimeters in height with a compact depth profile. Its weight of approximately 0.95 kilograms reflects the robust internal components and construction quality. The housing utilizes durable materials that resist vibration and temperature variations. Siemens designed this unit for continuous operation in demanding industrial environments.

Technicians will appreciate the clearly visible status indicators on the front panel. These LEDs display run, stop, error, and communication status at a glance. Furthermore, the module includes a memory card slot for convenient program backup and transfer.

System Integration and Application

The Siemens 6ES5945-7UA11 integrates as the core controller within SIMATIC S5 automation architectures. This module mounts into standard S5-115U racks alongside input, output, and communication modules. Its processing power suits applications requiring significant memory capacity. Industries such as manufacturing, material handling, and process control frequently deploy this CPU module for reliable automation execution in legacy systems.
