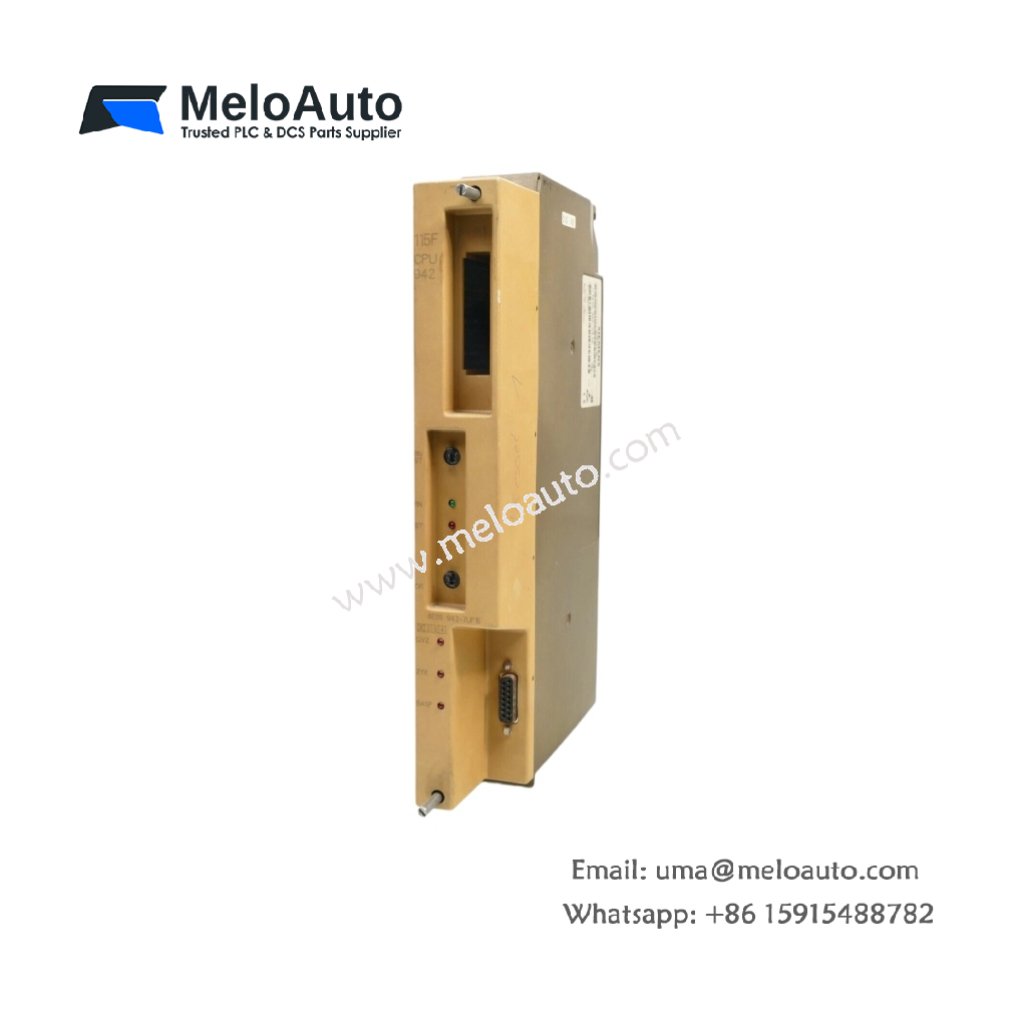

Siemens 6ES5942-7UF15 Central Processing Unit

Overview

The Siemens 6ES5942-7UF15 is a powerful and reliable Central Processing Unit (CPU) designed for industrial automation systems. Built for use with the SIMATIC S5 series, this CPU integrates seamlessly with various components, enabling efficient control and processing. Its robust performance, flexible interfaces, and compact design make it a preferred choice for automation professionals.

Key Specifications

Specification	Value
Model	6ES5942-7UF15
Manufacturer	Siemens
Product Line	SIMATIC S5
Part Number	6ES5942-7UF15
Weight	2.2 kg (4.85 lbs)
Dimensions (L x W x H)	160 mm x 120 mm x 40 mm
CPU Type	16-bit Microprocessor
Processing Speed	1.5 MHz
Program Memory	64 KB
Data Memory	32 KB
Communication Ports	2 x RS232, 1 x RS422
Power Supply	24V DC
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 70°C
Relative Humidity	5% to 95% (non-condensing)
Environmental Conditions	No corrosive gases, IP20 rated

Features and Benefits

High-Performance Processing: The Siemens 6ES5942-7UF15 features a 16-bit microprocessor, ensuring fast and efficient processing speeds of up to 1.5 MHz. This enables smooth and accurate control in demanding industrial environments.
Flexible Communication: Equipped with multiple communication ports, including 2 x RS232 and 1 x RS422, this CPU ensures flexible connectivity options for seamless integration with other automation devices.
Compact and Efficient Design: With dimensions of 160 mm x 120 mm x 40 mm and weighing just 2.2 kg, the 6ES5942-7UF15 is ideal for tight spaces while maintaining robust performance. It operates on a 24V DC power supply, making it energy-efficient.
Wide Operating Range: The CPU supports a broad operating temperature range from 0°C to 60°C and a storage temperature range from -20°C to 70°C, allowing it to function effectively in various industrial settings.
Reliable Memory: The Siemens 6ES5942-7UF15 features 64 KB of program memory and 32 KB of data memory, offering ample space for program execution and data storage.
Durability and Longevity: This model is designed for long-term reliability, with an IP20-rated enclosure that provides protection against dust and other particles, making it suitable for industrial applications.

Conclusion

The Siemens 6ES5942-7UF15 Central Processing Unit offers outstanding performance and flexibility for industrial automation systems. With its high-speed processing, reliable memory, and versatile communication options, it is ideal for controlling complex automation tasks in various industries. The compact size and durability further enhance its suitability for use in demanding environments.
