Siemens 6ES5816-1BB21 Operating System Module

Core Firmware Foundation for S5-944B CPU

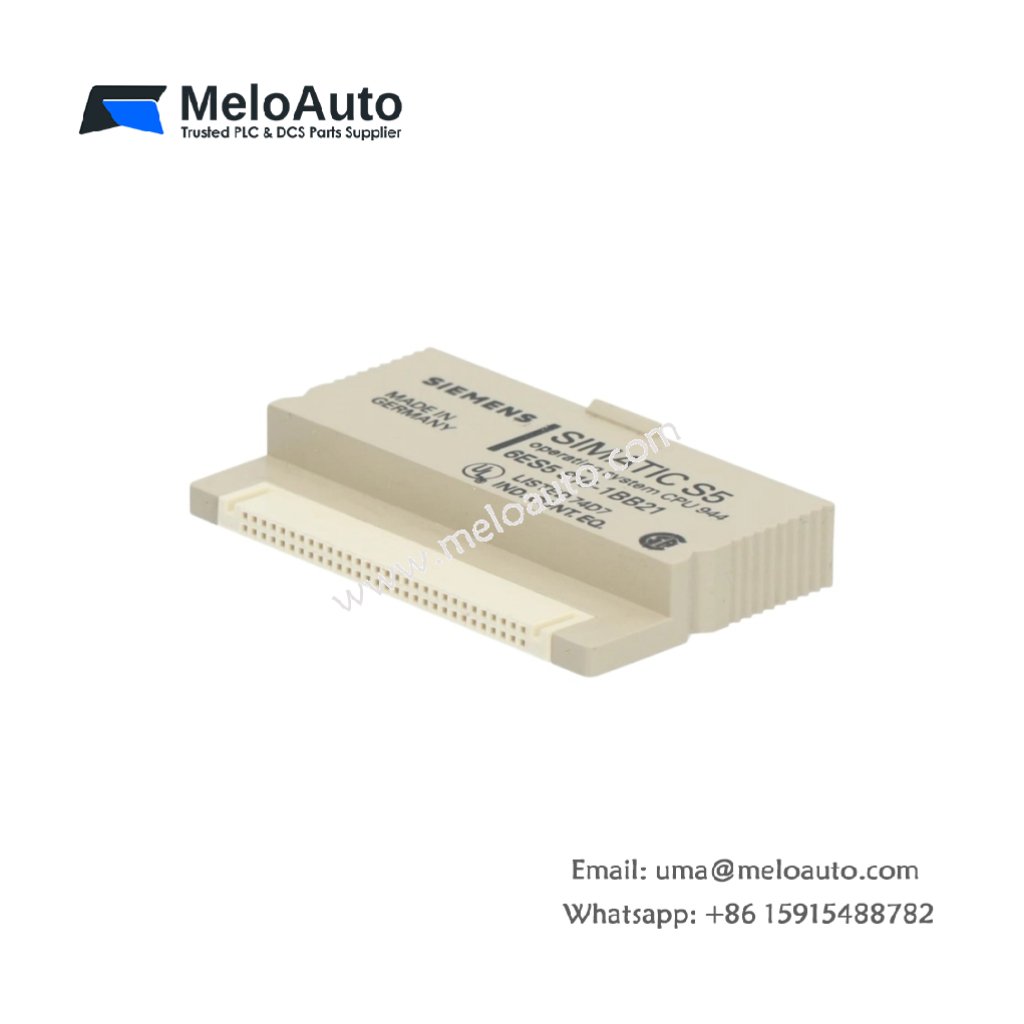

The Siemens 6ES5816-1BB21 is a dedicated operating system module for the SIMATIC S5-944B CPU within the S5-155U system . This EPROM module stores the essential core firmware and boot program, enabling the CPU’s logic processing and communication capabilities . The CPU reads instructions from this module during startup, transforming the hardware into a functional controller .

System Boot and Performance Enhancement

This module uses high-reliability EPROM technology for non-volatile data retention, protecting against power loss and electromagnetic interference . Upgrading to a newer version can unlock enhanced functions without replacing the entire CPU . The 6ES5816-1BB21 ensures system stability and reliability in demanding environments .

Technical Specifications and Integration

Engineered specifically for the S5-944B, this module installs directly into the CPU’s front slot . Its robust design ensures long-term performance in industrial applications .

Parameter	Specification
Manufacturer / Series	Siemens / SIMATIC S5-155U
Product Model	6ES5816-1BB21
Module Type	Operating System Module / EPROM
Compatible CPU	SIMATIC S5-944B
Primary Function	Store CPU Firmware & Boot Program
Memory Technology	EPROM (Erasable Programmable Read-Only Memory)
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Protection Rating	IP20
Weight	approx. 0.05 kg

Application in Legacy S5 System Support

Plant engineers use this module to maintain and restore large-scale S5-155U systems in industries like steel, power generation, and heavy manufacturing . Its modular design allows for cost-effective upgrades to unlock new features or improve processing speeds . The Siemens 6ES5816-1BB21 is essential for lifecycle management of classic Siemens automation platforms. Therefore, sourcing tested modules is critical for ensuring the reliable operation of these highly integrated legacy systems .
