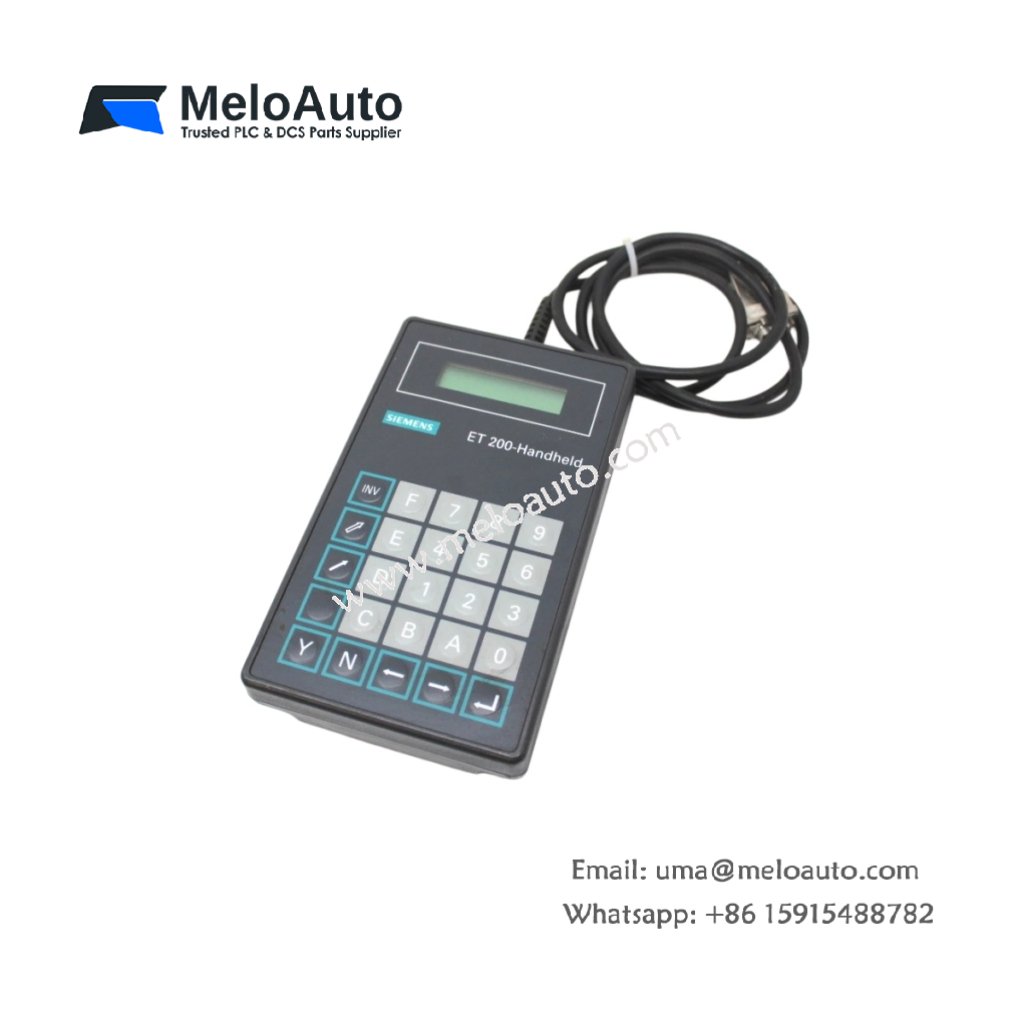

Siemens 6ES5782-2MB11 Programming Device

Handheld Programmer for SIMATIC S5 and ET 200 Systems

The 6ES5782-2MB11 programming device provides a compact, portable solution for commissioning and maintaining SIMATIC S5 systems. This handheld unit serves as a dedicated programming tool for S5 programmable controllers and ET 200 distributed I/O stations . It connects directly to PROFIBUS DP networks, enabling efficient on-site configuration and diagnostics . Furthermore, this device supports STEP 5 programming languages, including statement lists and ladder diagrams.

Display and User Interface Features

The 6ES5782-2MB11 features an integrated display for clear program visualization and parameter monitoring. It includes a tactile keyboard designed specifically for S5 programming tasks. This handheld device allows programmers to edit, test, and debug control programs directly at the machine. In addition, the unit provides real-time access to program variables and system status indicators for efficient troubleshooting.

Physical Characteristics and Portability

Weighing approximately 0.67 kg, this programming device offers excellent portability for field service engineers . It measures 25.0 cm x 18.0 cm x 5.0 cm, making it suitable for use in confined spaces . Consequently, technicians can carry this unit comfortably to various plant locations. The handheld design simplifies programming tasks in control cabinets and remote field stations.

Technical Specifications
