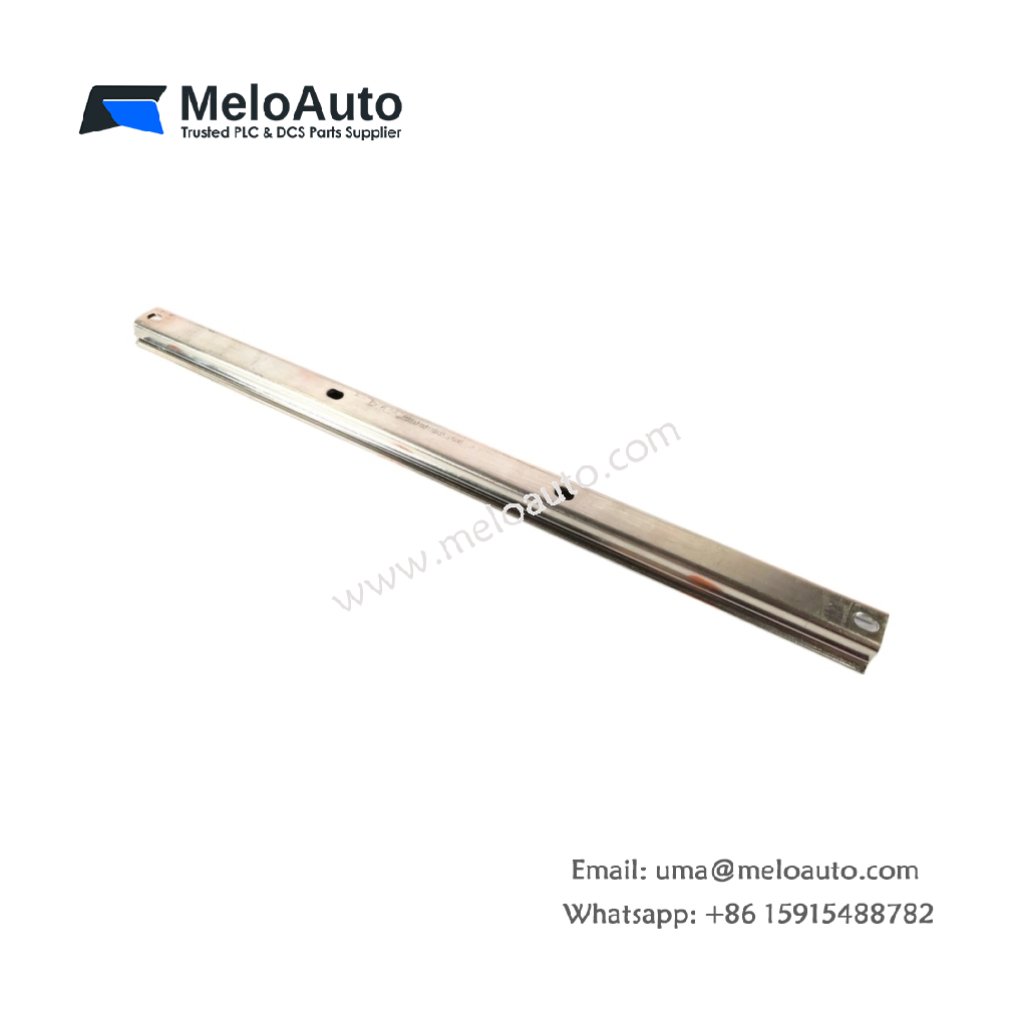

Siemens 6ES5710-8MA11 Standard Mounting Rail 35mm DIN

Technical Overview

The 6ES5710-8MA11 standard mounting rail provides a sturdy foundation for installing SIMATIC S5 and S7 automation components. This 35mm DIN rail conforms to EN 60715 standards for universal compatibility with industrial control equipment. The rail’s steel construction ensures mechanical stability for heavy modules and terminal blocks. Furthermore, its standardized profile allows for quick snap-on mounting of various components without tools.

Key Technical Specifications

Parameter	Specification
Brand	Siemens
Model Number	6ES5710-8MA11
Product Type	Standard Mounting Rail
Width	35 mm
Rail Profile	Top-hat rail (DIN EN 60715)
Material	Steel with protective coating
Cutting Length	Pre-cut length per order or custom
Compatibility	SIMATIC S5, S7, and third-party components
Mounting	Screw or rivet fixation

DIN Rail Standards and Compatibility

The 35mm top-hat profile follows the globally recognized EN 60715 standard. Therefore, this rail accepts all standard industrial control components designed for this profile. Users can mount terminals, relays, power supplies, and PLC modules from various manufacturers on the same rail.

Mechanical Stability and Coating

The steel construction provides reliable support for even heavy automation hardware. Its protective coating resists corrosion and enhances the rail’s longevity in industrial settings. The rigid profile maintains its shape and alignment after repeated component installations.

Easy Installation and Component Securing

The snap-on design allows for quick component installation without special tools. Users simply position the module’s DIN clip onto the rail and push down to lock it in place. A metal spring ensures secure engagement, preventing accidental dislodgement from vibration.
