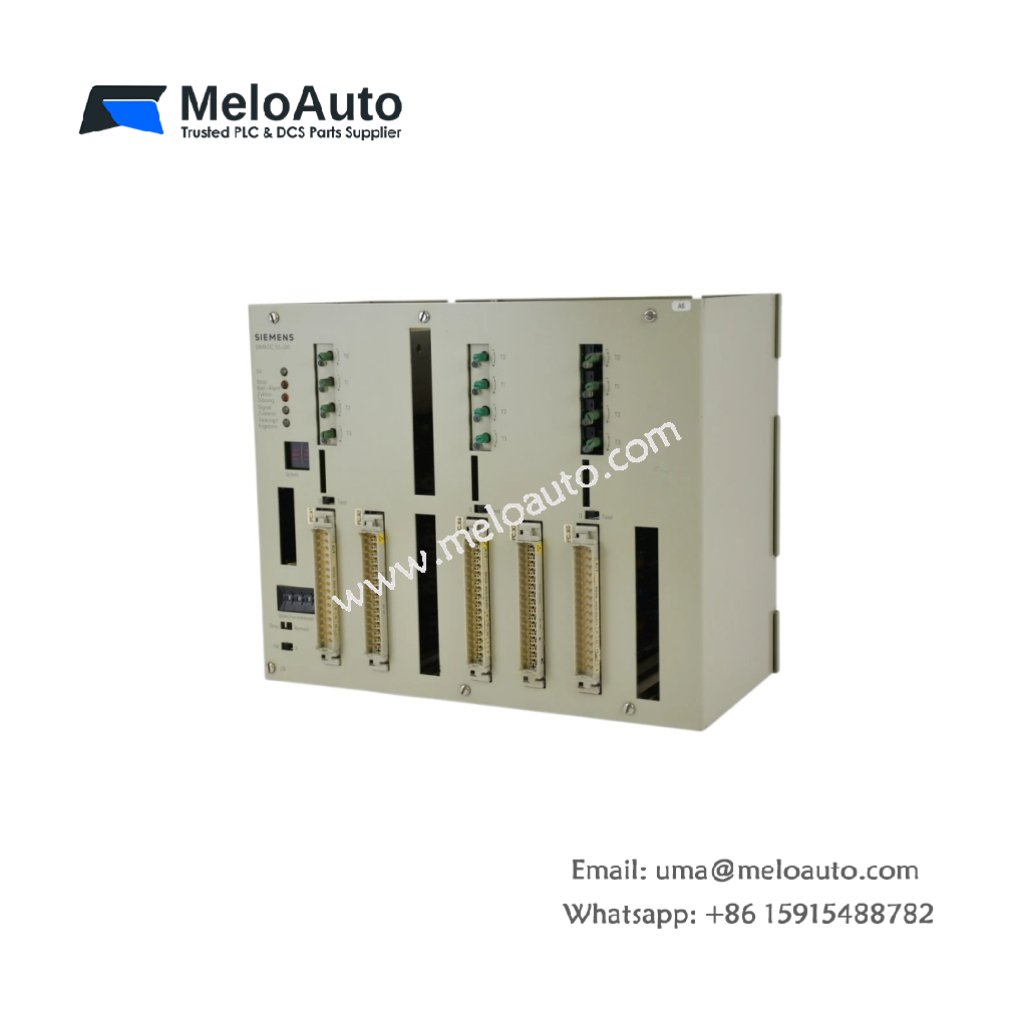

Siemens 6ES5710-0AB31 Card Enclosure

The 6ES5710-0AB31 houses SIMATIC S5 modules in a rugged rack enclosure. This unit provides 8 slots for digital and analog I/O cards. It includes a passive backplane with power distribution rails.

Key Technical Specifications

Parameter	Value
Number of Slots	8 (for S5 modules)
Enclosure Material	Sheet steel, gray RAL 7032
Protection Rating	IP20 (IEC 60529)
Backplane Type	Passive with 24V DC rails
Current Capacity	5 A total per enclosure
Supply Voltage	24V DC ±20%
Mounting	Rack or wall-mountable
Enclosure Dimensions	40.0 cm x 22.0 cm x 15.5 cm
Weight	2.8 kg (6.17 lbs)
Component Count	12 (terminals + bus bars)
Energy Storage	None (passive enclosure)
Operating Temperature	0°C to 60°C

Physical Dimensions and Construction

This enclosure measures 40.0 cm in length and 22.0 cm in width. Its total height reaches 15.5 cm including the mounting feet. 6ES5710-0AB31 weighs 2.8 kg for stable rack installation. The steel housing provides excellent mechanical protection and EMC shielding.

Moreover, the enclosure features a removable front cover for easy module access. Ventilation slots on the top and bottom allow passive air circulation. You can mount the unit horizontally or vertically on a backplate.

Slot Configuration and Backplane Design

The passive backplane accommodates 8 S5 modules in a single row. Each slot uses a 64-pin DIN 41612 connector for reliable contact. A heavy-duty bus bar distributes 24V DC power to all slots. Ground terminals connect directly to the enclosure for safety earthing.

Power Distribution and Wiring

A terminal block at the top accepts incoming 24V DC power supply. Two additional terminals provide +24V and 0V for daisy-chaining multiple enclosures. Each slot receives fused power protection against short circuits. LED indicators on the backplane show power status for the entire rack.

Typical Application Scenarios

You can deploy 6ES5710-0AB31 in SIMATIC S5 control cabinets with up to 8 modules. It also works well for central I/O racks near the CPU unit. This enclosure holds mixed configurations of digital and analog cards. Its 8-slot capacity suits small to medium-sized automation systems.
