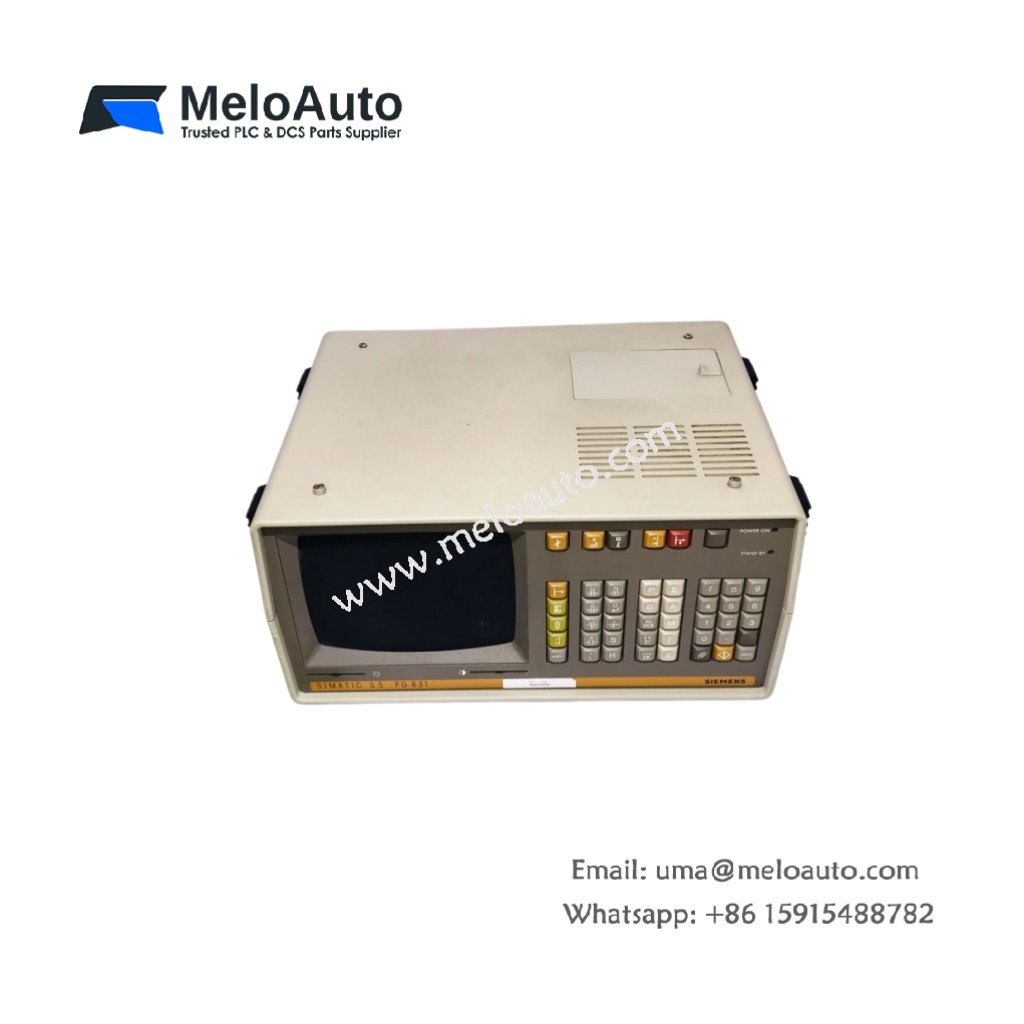

Siemens 6ES5631-0AA11 Programming Unit

The Siemens 6ES5631-0AA11 provides portable programming and debugging for S5 PLC systems. This programming unit measures 320 mm in width and 270 mm in height. It has a depth of 85 mm, so it fits on standard workbenches easily. The unit weighs 3.8 kg, making transport between locations manageable.

Display and Keyboard Specifications

This programming unit features a 9-inch monochrome LCD with 640 by 200 pixel resolution. The Siemens 6ES5631-0AA11 includes a full QWERTY keyboard with 62 membrane keys. It also provides 16 dedicated function keys for S5 programming commands. The display shows ladder logic, statement lists, and system diagnostics clearly. An adjustable contrast knob allows optimal viewing in various lighting conditions.

Internal Architecture and Memory Configuration

The programming unit contains four separate circuit boards inside its plastic housing. One board handles display driving, while another manages keyboard scanning. The third board runs the operating system, and the fourth handles communications. The Siemens 6ES5631-0AA11 includes 512 kB of RAM for program storage. It also provides 256 kB of ROM for the operating system firmware.

Communication Interfaces and Storage Media

You will find one RS-232 port on the rear panel for PLC connection. The Siemens 6ES5631-0AA11 also includes a 20 mA current loop interface for older systems. A built-in 3.5-inch floppy disk drive stores user programs and documentation. The unit stores 220 µF of capacitance for power supply filtering only. It draws 1.2 A at 24V DC during normal operation.

Environmental Tolerance and Power Options

You can power this programming unit from 24V DC or 110/230V AC sources. The device operates reliably from 5°C to 45°C ambient temperature. It tolerates humidity levels up to 85 percent without any condensation issues. The Siemens 6ES5631-0AA11 includes a carrying handle for portable field use. The unit has an IP40 rating for indoor programming environments.

Below is a complete summary of its technical specifications.

Parameter	Value
Dimensions (W x H x D)	320 mm x 270 mm x 85 mm
Weight	3.8 kg
Display Size	9 inches
Display Type	Monochrome LCD
Display Resolution	640 x 200 pixels
Keyboard Keys	62 membrane + 16 function
RAM	512 kB
ROM	256 kB
Number of PC Boards	4
RS-232 Port	1
Current Loop Interface	20 mA
Storage Media	3.5-inch floppy drive
Internal Capacitance	220 µF
Current Draw	1.2 A @ 24V DC
Power Sources	24V DC or 110/230V AC
Operating Temperature	5°C to 45°C
Humidity Tolerance	85% non-condensing
Enclosure Rating	IP40

The Siemens 6ES5631-0AA11 replaces older PG 685 programming units in S5 systems. You do not need any special adapters for most PLC connection scenarios. This unit also stores multiple projects on floppy disks for easy backup. Consequently, it supports offline programming and field troubleshooting for S5 controllers.
