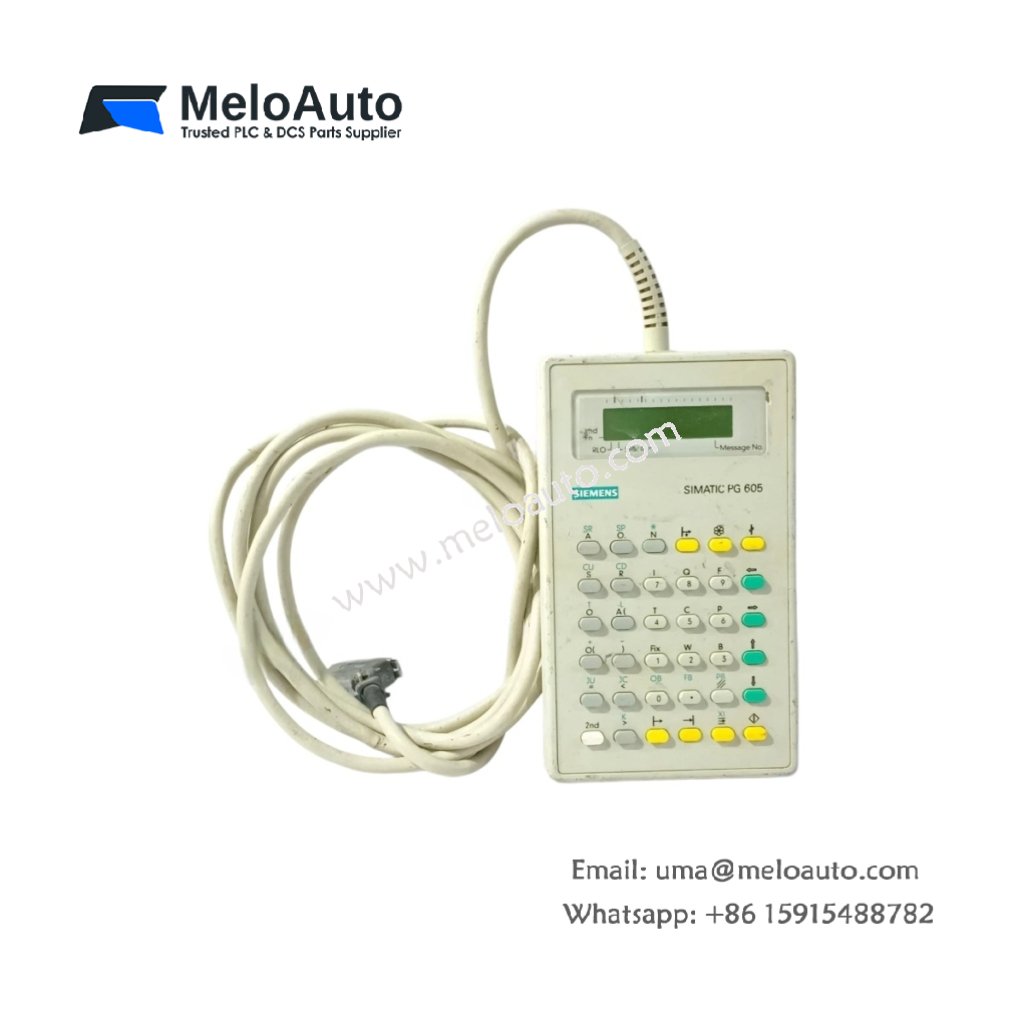

Siemens 6ES5605-0UB12 | Hand-Held Programmer

This hand-held programmer provides portable programming access for SIMATIC S5 controllers. It allows operators to edit logic and monitor system status directly on the factory floor. Therefore, this tool eliminates the need for a laptop during routine maintenance.

Physical Dimensions and Weight Specifications

The Siemens 6ES5605-0UB12 features a rugged plastic housing for daily use. Its dimensions fit comfortably in one hand for field operations. The unit weighs approximately 0.65 kg for easy carrying around the plant. Consequently, technicians can bring this programmer to any machine location.

Parameter	Specification
Product Model	Siemens 6ES5605-0UB12
Width	110 mm
Height	220 mm
Depth	45 mm
Weight	0.65 kg

Interface Types and Connection Layout

The Siemens 6ES5605-0UB12 provides a 15-pin D-sub connector for PLC attachment. A 5-meter coiled cable connects the unit to the S5 programming port. The front panel carries a 16-character alphanumeric LCD display. Hence, users can view program steps and system messages without external monitors.

Component Count and Keypad Configuration

This hand-held programmer contains one main board with a 8-bit microcontroller. The board holds 32 KB of firmware for programming functions. You will also find a membrane keypad with 36 tactile keys. An onboard speaker provides audible feedback for key presses and errors.

Technical Feature	Description
Display Type	LCD, 16 characters x 1 line
Keypad Keys	36 (alphanumeric and function)
Cable Length	5 meters (coiled)
Compatible CPUs	SIMATIC S5 (all models)
Programming Language	Statement List (STL)

Energy Storage and Power Supply

The Siemens 6ES5605-0UB12 draws its power directly from the connected PLC. It requires no external battery or mains adapter for operation. The unit contains a small capacitor for display hold during cable disconnection. This storage maintains the screen image for approximately 2 seconds.

Programming Functions and Operational Use

Users can upload, edit, and download complete S5 programs with this device. The programmer supports online monitoring of bit and word values. A built-in memory buffer stores one full program block for transfer operations. This feature simplifies copying logic between multiple identical machines.
